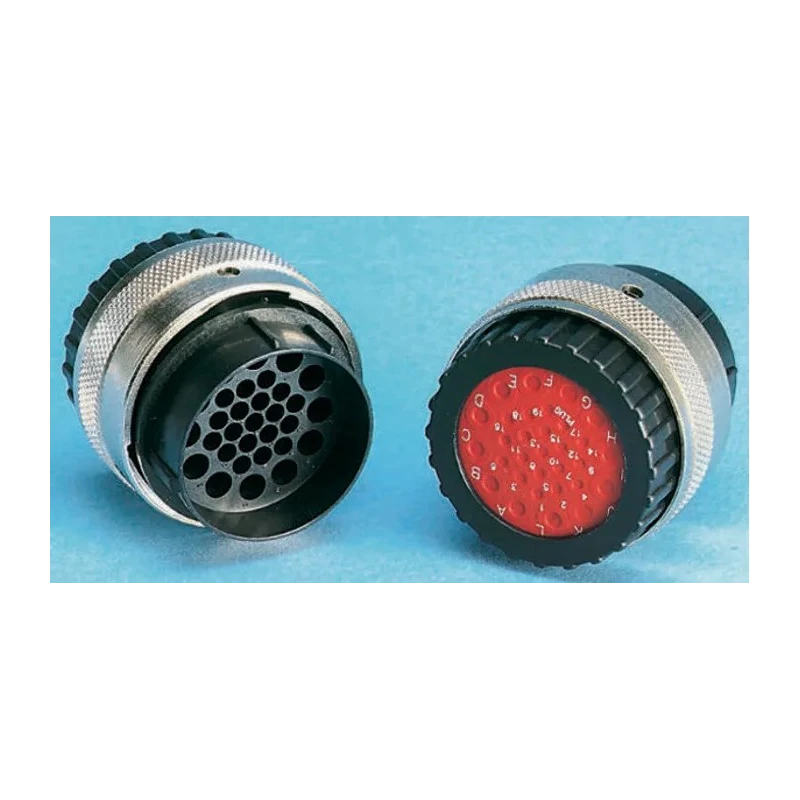

ITT Cannon Circular Connector Standard Size, 31 Contacts, Cable Mount, Male Plug, IP67, Nylon TN6S24-1219P2L / 192900-0538

ITT Cannon TN6S24-1219P2L / 192900-0538 Circular Connector is a cable mount, standard-sized plug with 31 male contacts designed for demanding industrial applications requiring durable and reliable connections. It is manufactured with a robust nylon housing and features a nickel-plated copper contact system rated for 30 amps current and 250 volts, ensuring excellent electrical performance and resistance to corrosion.

This connector provides a high degree of ingress protection with an IP67 rating, making it suitable for outdoor electronics, automotive, marine, process control, and other harsh environment uses. The crimp termination type allows secure and stable wire connections, while the bayonet mating ensures quick locking and unlocking during installation and maintenance.

Operating temperature ranges from -55°C to 105°C enable functionality in extreme cold and heat conditions. The connector’s design incorporates a plastic coupling ring offering corrosion resistance and a membrane wire seal to maintain environmental sealing integrity. The 24 mm shell size and straight orientation allow compatibility with mating connectors in the Trident Neptune series.

The Trident Neptune connector series merges power and signal contacts, widely employed across automotive, marine, and industrial control industries. The connector includes a rubber seal at the rear, pierced on contact insertion, held by a supplied screw ring or appropriate backshell accessory to maintain the IP67 rating. Signal wire diameters supported range from 1.7 mm to 2.7 mm, and power wire diameters from 2.7 mm to 4.0 mm for optimal mechanical grip and sealing.

Constructed with durable nylon housing ensuring electrical insulation and corrosion resistance. Rated for a current of 30A and voltage of 250V suitable for industrial power and signal connections. Features a strong bayonet mating system for secure and quick connection.

Contact plating is nickel over copper for reliable conductivity and corrosion resistance. Designed to operate in extreme temperatures from -55°C to 105°C. Uses crimp termination type for dependable wire connections. Maintains IP67 ingress protection with a sealed design for outdoor and automotive applications.

Part of the Trident Neptune series, combining power and signal contacts for versatile industrial uses. Plug type connector with straight orientation and 24 mm shell size for compatibility.

This connector is ideal for industrial, automotive, marine, process control, and outdoor electronic applications. The IP67 rating combined with robust mechanical and electrical features provides reliable performance in harsh environments. Explore more Industrial Circular Connectors and ITT Cannon products on EnvMart for your specialized electrical connection needs.
