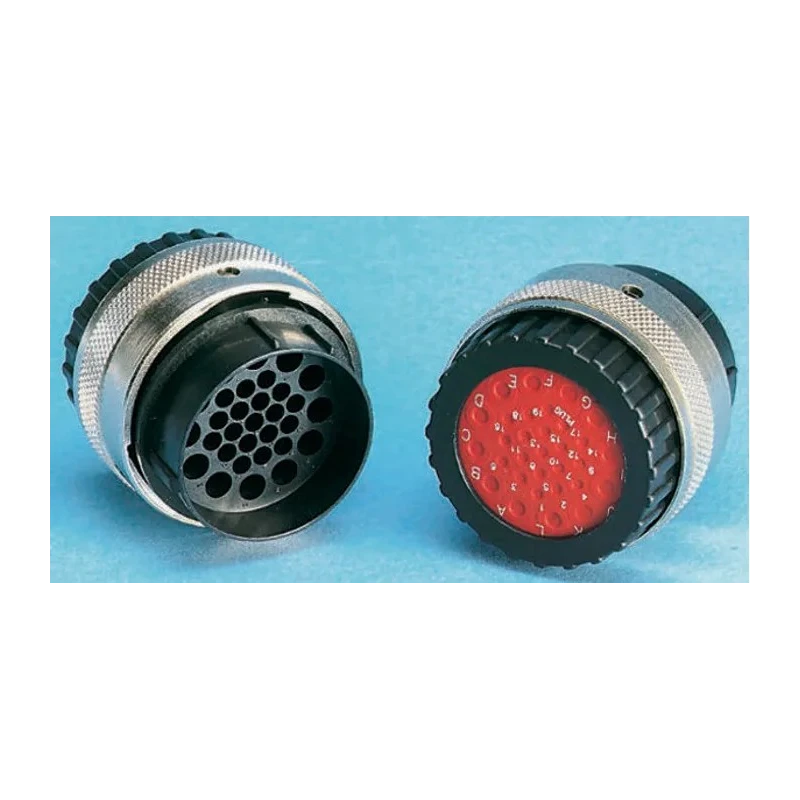

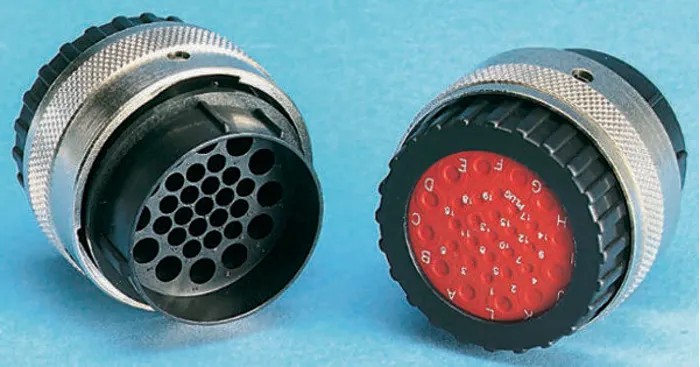

ITT Cannon Industrial Circular Connector 48 Contacts Cable Standard Plug Male IP67 Nylon Housing TN6S24-0048P2L / 192900-0539

ITT Cannon TN6S24-0048P2L / 192900-0539 industrial circular connector is a rugged cable mount plug designed for demanding environments. It features 48 contacts in a standard size shell with a durable nylon housing that provides resistance against corrosion and mechanical stress, suitable for outdoor and automotive applications where IP67 ingress protection is critical.

This connector supports a current rating of 30 amperes and a voltage of 25 volts AC/DC. Its bayonet mating system offers quick and secure engagement with a straight orientation. Crimp termination type ensures a stable electrical connection and maintains contact integrity even under vibration and temperature fluctuations.

Designed as part of the Trident Neptune series, this connector incorporates nickel-plated copper contacts that deliver excellent conductivity and corrosion resistance. The connector housing includes membrane wire seals and a plastic coupling ring that enhance protection against moisture and dust ingress, maintaining the IP67 rating.

The operating temperature range is from -55° Celsius to 105° Celsius, making this connector ideal for automotive, marine, industrial, and process control environments where reliability is paramount.

Each connector is manufactured in Hungary to meet high-quality standards and tailored for use in harsh environmental conditions. The connector assembly is a part of a comprehensive system offering various backshell accessories, rear housings, and dust caps to accommodate diverse installation requirements.

Features a corrosion-resistant nylon housing for durability in harsh environments. Supports a current rating of 30A and voltage up to 25V AC/DC. Uses a bayonet mating type with straight orientation for secure connection.

Crimp termination ensures reliable contact integrity and electrical performance. Rated for operation in extreme temperatures from -55°C to 105°C. Nickel-plated copper contacts enhance corrosion resistance and conductivity.

Meets IP67 standard with a membrane wire seal and plastic coupling ring to prevent ingress. Designed for automotive, marine, outdoor electronics, and process control applications. Manufactured in Hungary with Trident Neptune series design for industrial use.

Explore the range of Industrial Circular Connectors by ITT Cannon at EnvMart for reliable connectivity solutions in electronics, automotive, marine, and industrial automation sectors.
