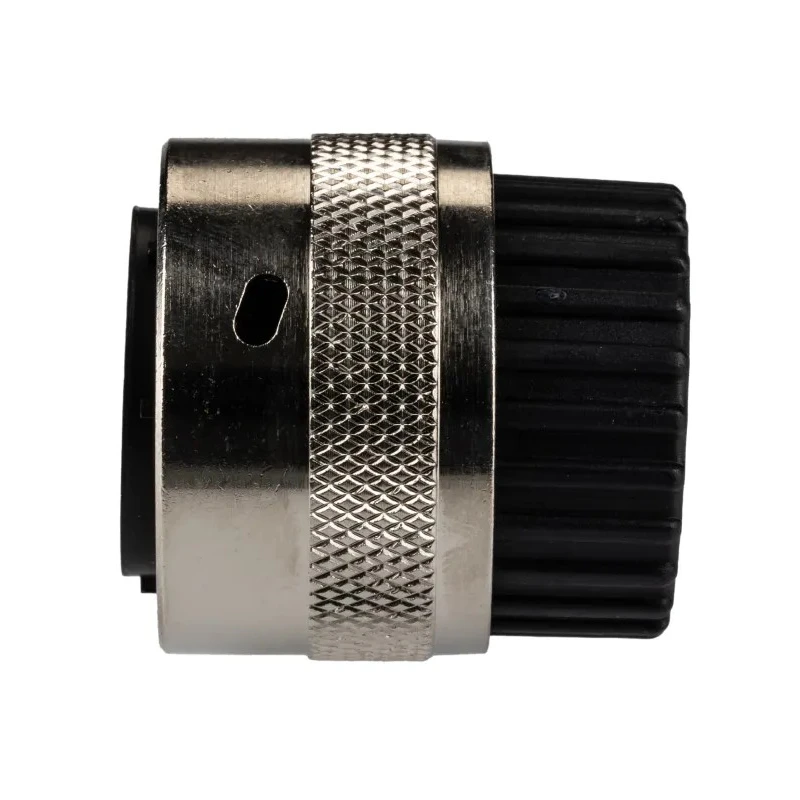

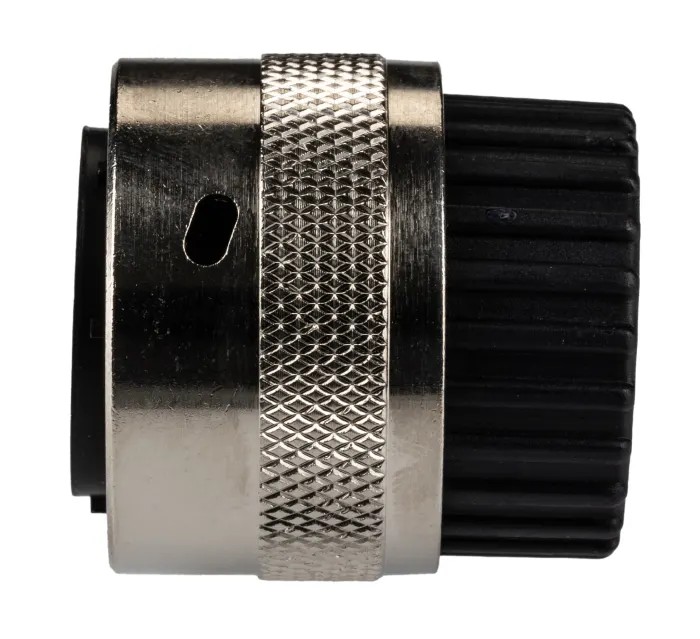

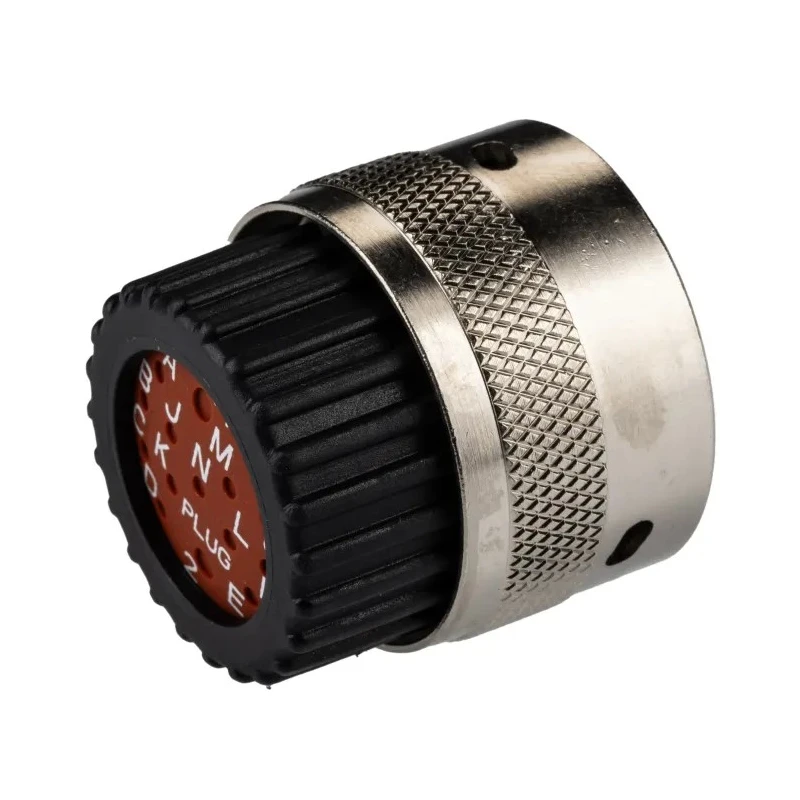

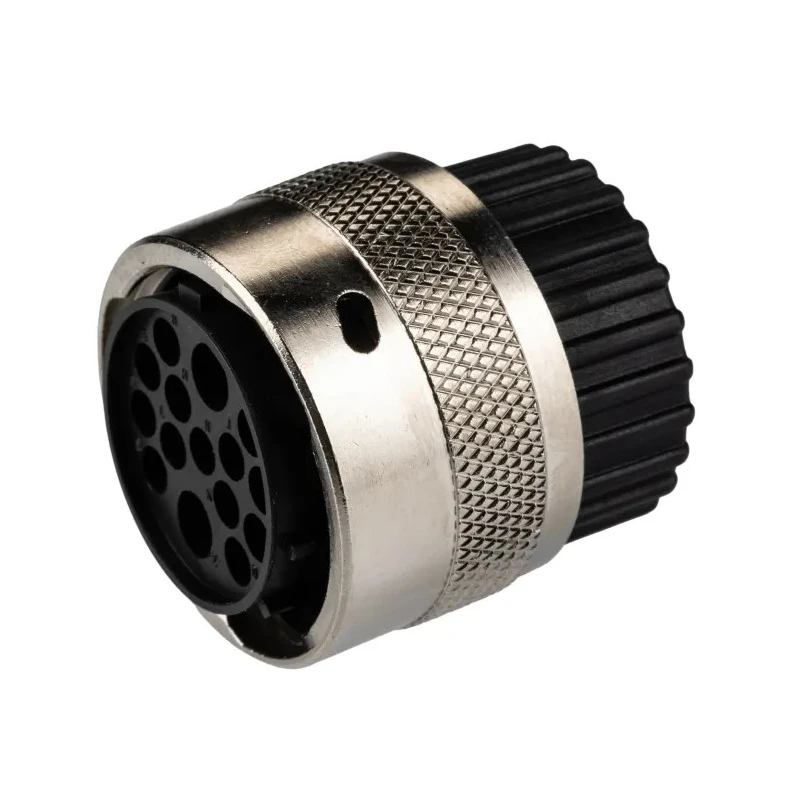

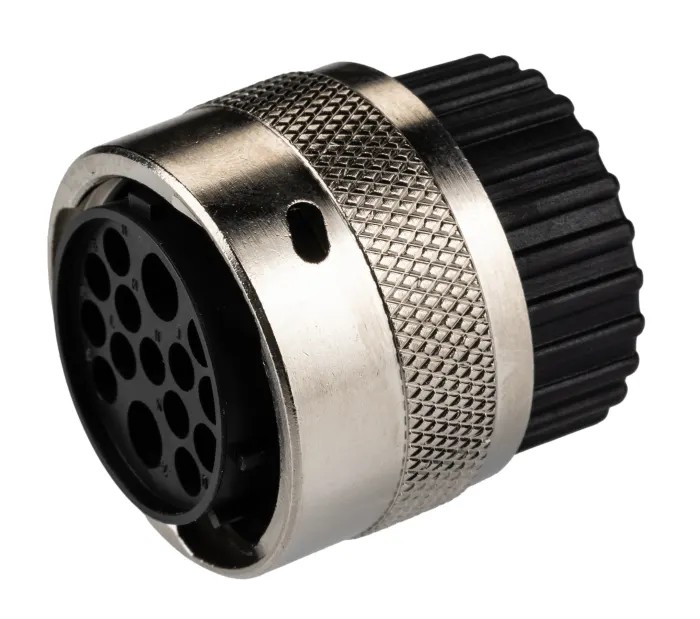

ITT Cannon Industrial Circular Connector, 15 Contacts, Cable Mount Plug, Female, IP67, Nylon TN6S16-0213S1L / 192900-0581

Free Delivery in India | Lowest Global Shipping Charges

ITT Cannon Industrial Circular Connector, 15 Contacts, Cable Mount Plug, Female, IP67, Nylon TN6S16-0213S1L / 192900-0581

Name: ITT Cannon Industrial Circular Connector, 15 Contacts, Cable Mount Plug, Female, IP67, Nylon TN6S16-0213S1L / 192900-0581
Brand: ITT CANNON
SKU: 331427
Price: 56.15 USD
Availability: InStock



Category Industrial Circular Connector Brand ITT CANNON Condition New

Specifications

Country of Origin	Hungary
Voltage	250V
Brand	ITT Cannon
Orientation	Straight
Current	30A
Model	TN6S16-0213S1L / 192900-0581
IP Rating	IP67
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper
Series	Trident Neptune
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Pole Format	15
Contact Plating	Nickel
Number of Contacts	15
Contact Gender	Female
Shell Size	16 mm
Mating Type	Bayonet
Connector Size	Standard
Plug/Socket	Plug

Key Features

Constructed with durable nylon housing and metal coupling ring for harsh environment use.
Features a bayonet mating type with a straight orientation plug design.
Nickel-plated copper contacts ensure reliable electrical connections.
Operates reliably between -55°C to 105°C temperature range.
Provides IP67 ingress protection suitable for outdoor and automotive applications.
Terminated via crimp for secure wire connections with cable mount mounting type.
Designed under Trident Neptune series combining power and signal contacts.

Product Description

ITT Cannon TN6S16-0213S1L / 192900-0581 is a rugged industrial circular connector designed for cable mounting applications. It features 15 female contacts within a standard size shell measuring 16 mm. This plug connector is part of the Trident Neptune series, which combines power and signal contacts optimized for automotive, marine, and process control environments.

The connector housing is made of durable nylon with a metal coupling ring providing strong bayonet coupling for secure and reliable connections. Its design achieves IP67 ingress protection, making it suitable for harsh outdoor and automotive applications where moisture and dust resistance are critical.

This circular connector is rated for 250 volts and a current capacity of 30 amps, allowing it to manage significant power loads alongside signal circuits. The contacts are nickel plated copper, ensuring excellent conductivity and corrosion resistance. It supports cable mounting with crimp termination and features a straight plug orientation for ease of installation.

Operational temperature range from -55 °C to 105 °C makes it reliable under extreme environmental conditions. The connector includes membrane wire seals maintaining the IP67 rating with supplied screw ring for rear sealing or use with backshell accessories.

Widely used in industrial, automotive, marine, and process control sectors, this connector ensures a robust, high-performance electrical interface in demanding environments. Accessories such as backshells and dust caps are available to support cable management and environmental protection.

Durable nylon housing with metal coupling ring ensures mechanical strength. IP67 rated for dust and waterproof performance for outdoor use. Bayonet mating with standard 15 contacts for power and signal. Nickel plated copper contacts provide reliable electrical conduction.

Wide operating temperature range from -55°C up to 105°C. Cable mount with crimp termination suitable for harsh environments. Compatible with Trident Neptune series accessories for flexible installation. Explore the full range of Industrial Circular Connectors and accessories at EnvMart for reliable solutions in electrical connectivity across multiple sectors.
