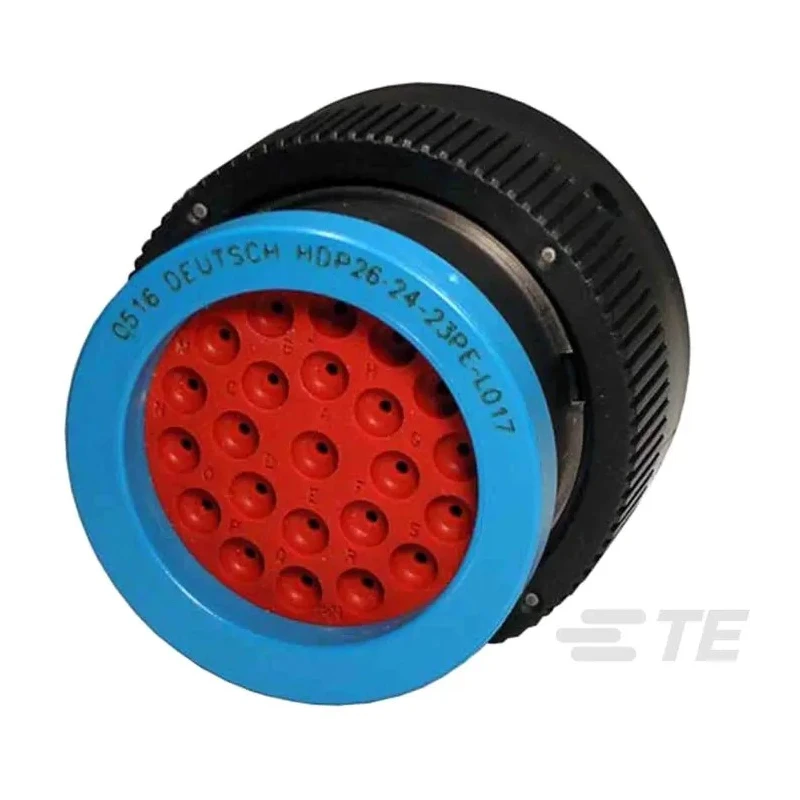

TE Connectivity Circular Connector 23 Contacts Cable Mount Socket Male IP67 250V DEUTSCH HDP Series HDP26-24-23PE-L017

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Circular Connector 23 Contacts Cable Mount Socket Male IP67 250V DEUTSCH HDP Series HDP26-24-23PE-L017

Name: TE Connectivity Circular Connector 23 Contacts Cable Mount Socket Male IP67 250V DEUTSCH HDP Series HDP26-24-23PE-L017
Brand: TE Connectivity
SKU: 307423
Price: 36.05 USD
Availability: InStock



Category Industrial Circular Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	TE Connectivity
Orientation	Straight
Current	13A
Model	HDP26-24-23PE-L017
IP Rating	IP67
Mount Type	Cable
Housing Material	Polyamide Fibreglass
Series	DEUTSCH HDP
Termination Type	Wire & Cable
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Contacts	23
Contact Gender	Male
Shell Size	16 mm
Mating Type	Wire-to-Wire
Connector Size	Standard
Plug/Socket	Socket
Coding	E

Key Features

This connector is built for wire-to-wire mating with E coding and supports a voltage of 250V.
Constructed from black polyamide fibreglass housing ensuring durability and excellent mechanical strength.
Rated for operation from -55°C to 125°C, suitable for harsh industrial environments.
The shell size is 16 mm, designed for straight orientation and primary locking via contact retainer.
Compliant with multiple standards including China RoHS 2, EU ELV 2000/53/EC, and EU RoHS 2011/65/EU.

Product Description

TE Connectivity HDP26-24-23PE-L017 is a high-quality circular connector designed for industrial applications requiring reliable power and signal transmission. This model features 23 contacts with a standard connector size, cable mount type, and a socket configuration with male contacts.

The connector supports a current rating of 13A and operates at up to 250V, making it ideal for power and signal circuit applications. Its black polyamide fibreglass housing provides robustness and excellent resistance to environmental factors.

Designed with wire-to-wire mating compatibility, it uses the DEUTSCH HDP series shells with straight orientation and E coding to ensure secure connections. Operating temperature range from -55°C to 125°C allows use in extreme industrial conditions.

Waterproof rated to IP67, this connector is highly suited for harsh environments where protection against dust and water ingress is critical. Primary locking via a contact retainer enhances connection reliability during operation.

This connector supports multiple industrial standards such as 2016 China RoHS 2 MIIT Order No 32, EU ELV 2000/53/EC, and EU RoHS 2011/65/EU. Its housing material is a high-grade polyamide fibreglass providing mechanical and chemical resilience.

The connector is specially designed as a housing for male terminals within the DEUTSCH HDP20 series, ensuring compatibility and performance consistency.

Applications include industrial automation, heavy machinery, power distribution, and signal transmission in demanding environments. This product is intended for use in industries requiring robust connectors capable of withstanding mechanical stress and environmental exposure.

Explore more TE Connectivity connectors and related products in the Industrial Circular Connector category on EnvMart.
