EMERSON ? ASCO Solenoid Valve 2 Port NC Brass Body 230V ac 10 bar SCE238D004.230/50-60

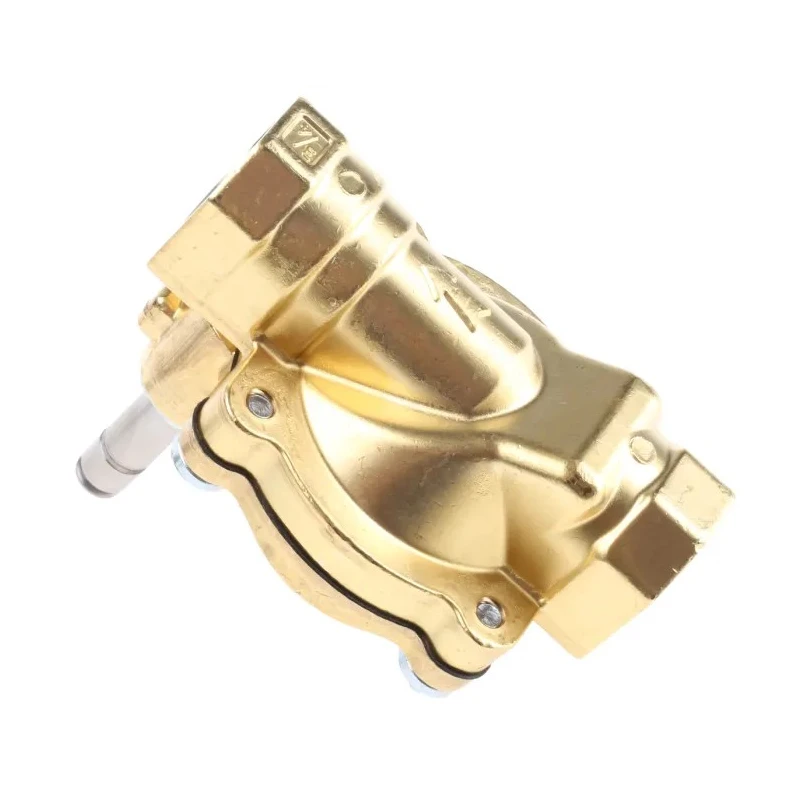

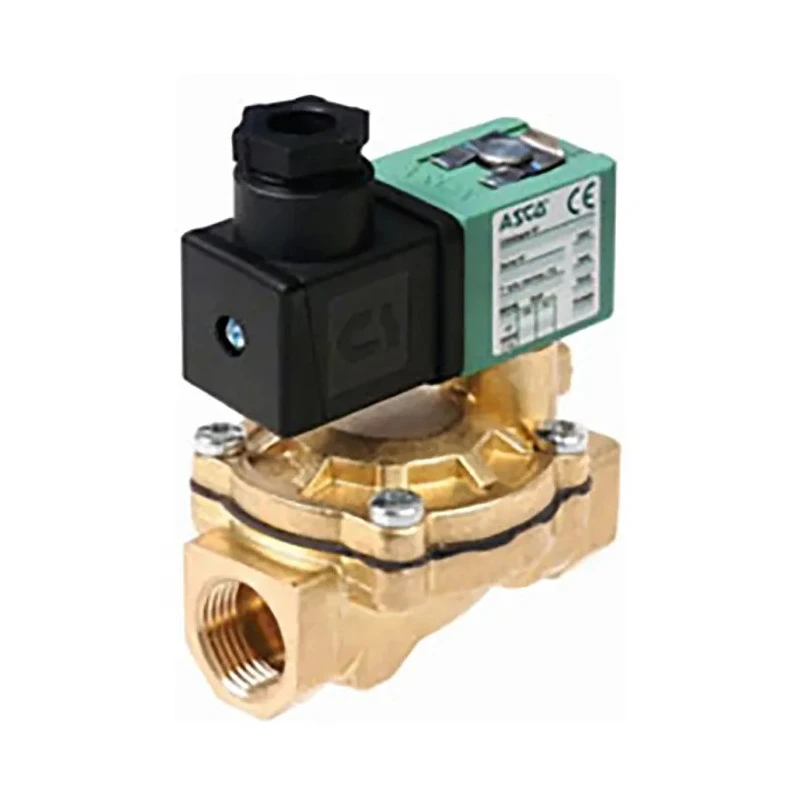

EMERSON ASCO model SCE238D004.230/50-60 is a high-quality 2-port normally closed solenoid valve designed for industrial applications requiring precise control of air, inert gases, and water at 230V ac supply voltage. The valve features a durable brass body and a 20 mm orifice diameter, enabling efficient fluid flow with a maximum operating pressure of 10 bar.

This solenoid valve operates reliably in a temperature range from -10°C to 85°C and includes servo assist technology that enhances valve operation speed and accuracy. Its rapid response is demonstrated by its 55 ms maximum opening and 110 ms maximum closing times, ensuring precise control in demanding environments.

The valve complies with multiple international standards, including ISO 4400, EN 60529, EN 175301-803, DIN 43650, and IEC 335, and carries ATEX and EC hazardous area certifications for safe use in potentially explosive atmospheres. Designed and manufactured in Poland, this unit assures reliability and conformity to regulatory requirements.

Ideal for industrial, pneumatic, and fluid power systems, this solenoid valve is suitable for HVAC, manufacturing, water treatment, and other commercial applications where robust fluid control is essential.

Features a 20 mm orifice diameter for efficient flow control. Default valve position is normally closed (NC) for fail-safe operation. Suitable for air, inert gas, and water service. Operates between -10°C and 85°C ambient conditions.

Meets international standards and hazardous area certifications. Equipped with servo assist for enhanced responsiveness. Maximum operating pressure of 10 bar for demanding applications. Quick actuation with opening in 55 ms and closing in 110 ms.

Flow factor Kv rated at 6.6 m³/h for optimized fluid dynamics. For further industrial valve and Solenoid Valve options, explore EnvMart's extensive catalog offering premium solutions for fluid power and mechanical applications.
