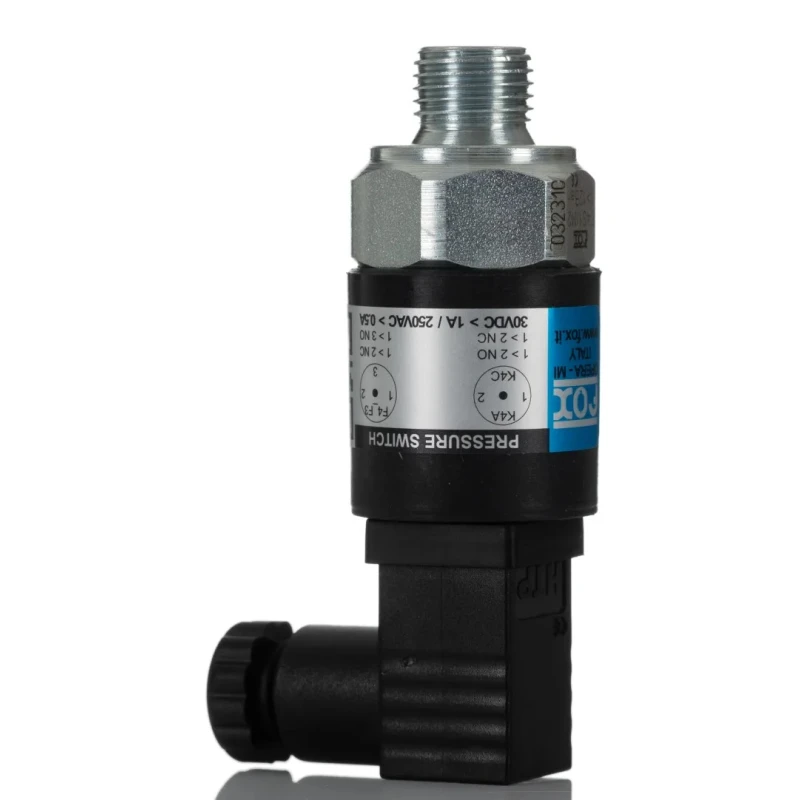

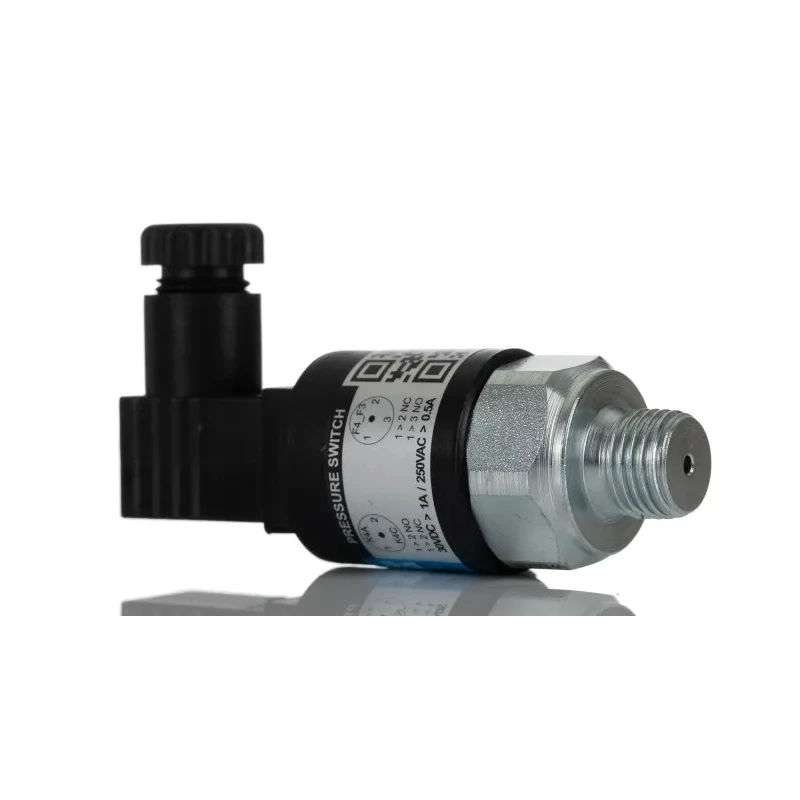

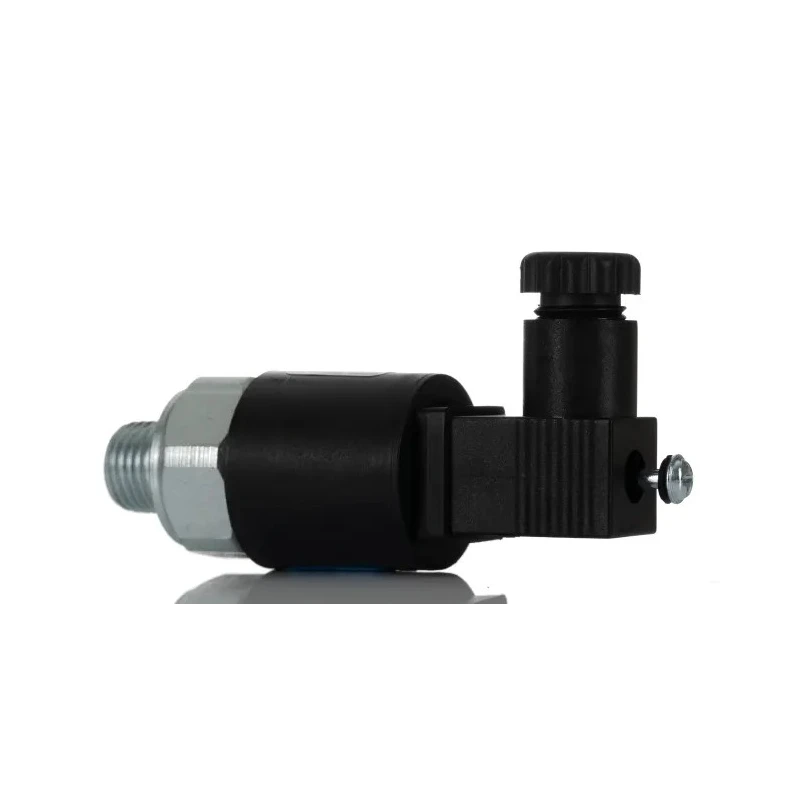

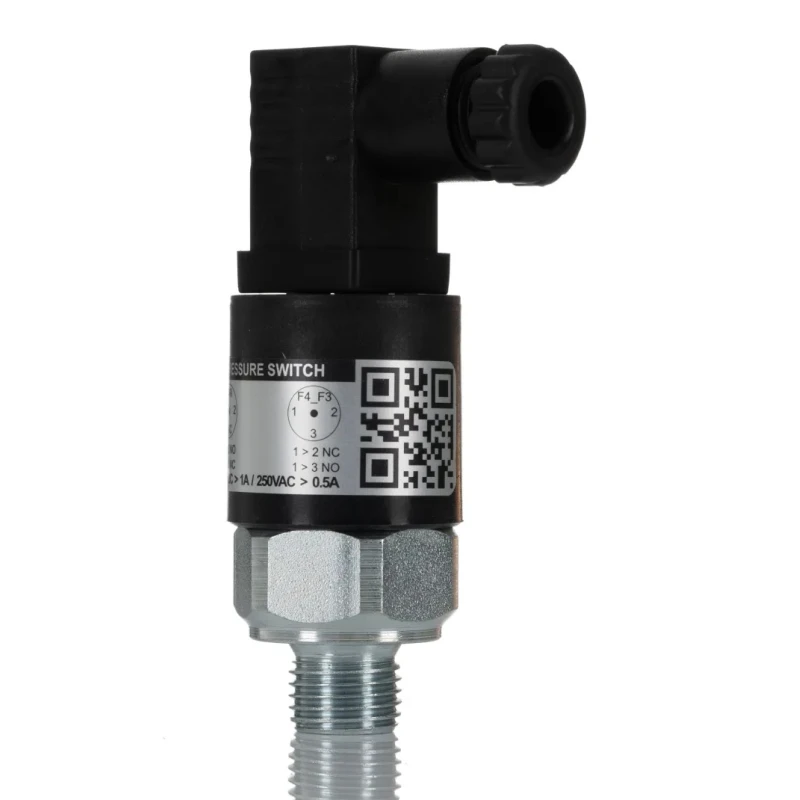

RS PRO Adjustable Double Contact Pressure Switch NC 1 bar to 12 bar 250V AC IP65 297-0052

RS PRO 297-0052 is a durable adjustable pressure switch specifically engineered for industrial hydraulic and pneumatic systems. It accurately detects pressure changes between 1 bar and 12 bar with robust steel construction that ensures long-term reliability and compatibility with harsh environments.

Featuring a double contact microswitch design with Normally Closed (NC) and Normally Open (NO) contact outputs, it allows versatile control for a wide range of applications. The adjustment screw located centrally on the switch head enables precise calibration of pressure setpoints, facilitating fine tuning to system requirements.

The device operates flawlessly within a temperature range of -25°C to +85°C and supports a maximum current load of 0.5 amps at 250 volts AC. The pressure switch is fitted with a DIN 43650 IP65 electrical connector plug providing a secure and weatherproof interface. The mechanical stop protects the spring and microswitch components from over pressurisation, enhancing reliability.

Its compact size and the ability to be mounted in any orientation makes it easy to install in confined spaces. The ¼ BSP male parallel thread connection ensures compatibility with standard hydraulic and pneumatic piping systems.

Typical applications include pumps, compressed air systems, process control equipment, machine tools, sensors, valves, and pneumatic and hydraulic systems. The switch is manufactured in Italy and complies with DIN and RoHS standards, assuring quality and environmental safety.

Constructed from robust steel for durability and reliability. Can be mounted in any orientation with compact footprint. Adjustable pre-set pressure via center screw for precise control. Electrical DIN 43650 IP65 plug connection with ¼ BSP Male G parallel thread.

Wide operating temperature range from -25°C to +85°C. Supports up to 12 bar maximum operating pressure. Dual contact configuration with Normally Closed (NC) and Normally Open (NO) options. Switching frequency up to 90 cycles per minute ensuring long mechanical life.

IP65 protection rating suitable for industrial environments. Manufactured in Italy with compliance to DIN and RoHS standards.

This RS PRO Pressure Switch is an ideal choice for engineering, manufacturing, industrial, HVAC, and fluid power applications seeking high reliability and precise pressure sensing in both hydraulic and pneumatic environments. Explore more RS PRO industrial tools and components in the EnvMart catalog to complement your procurement needs.
