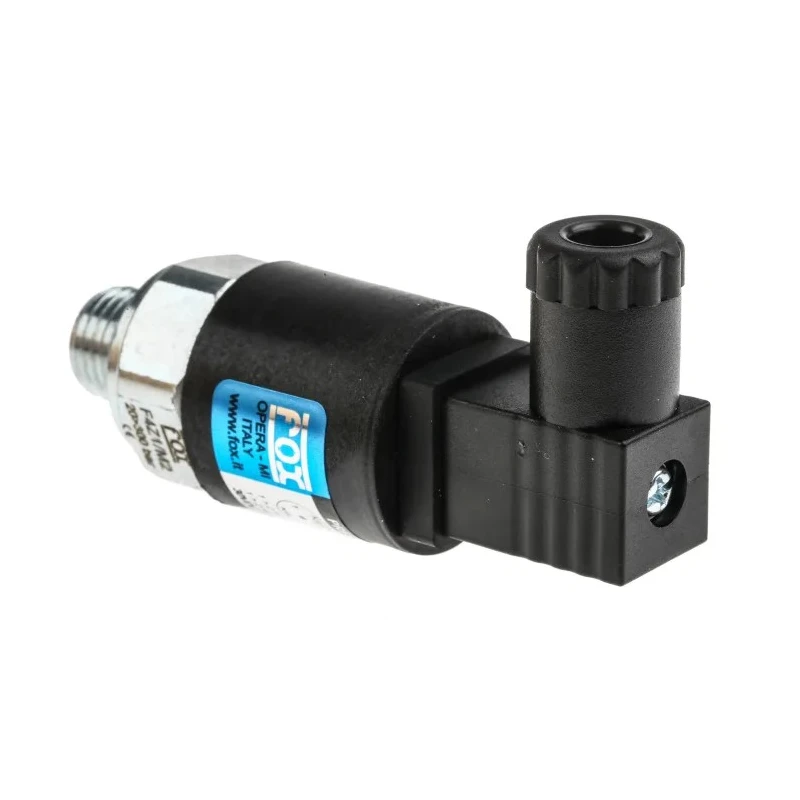

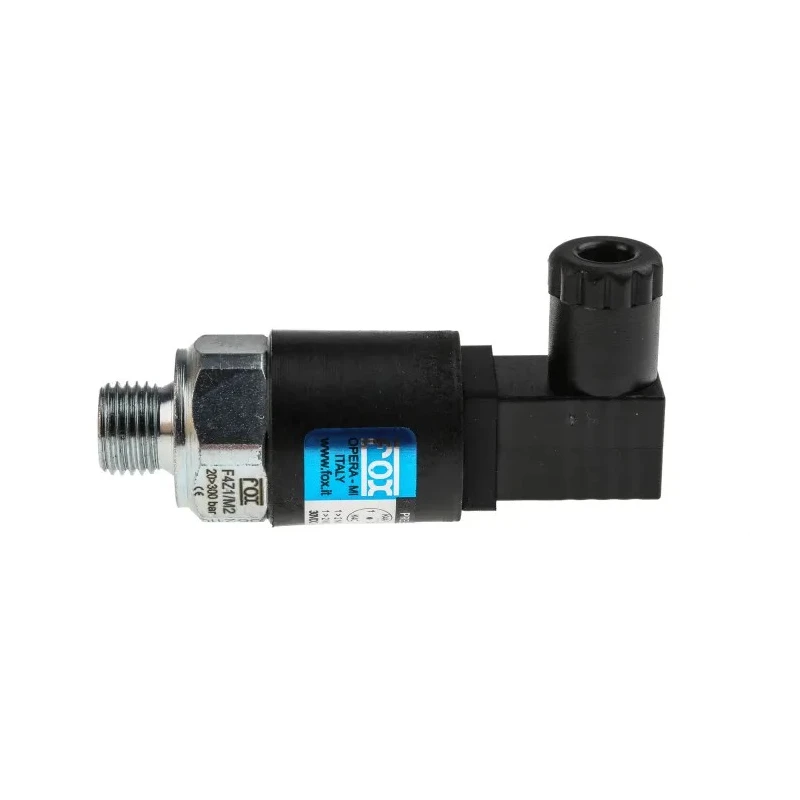

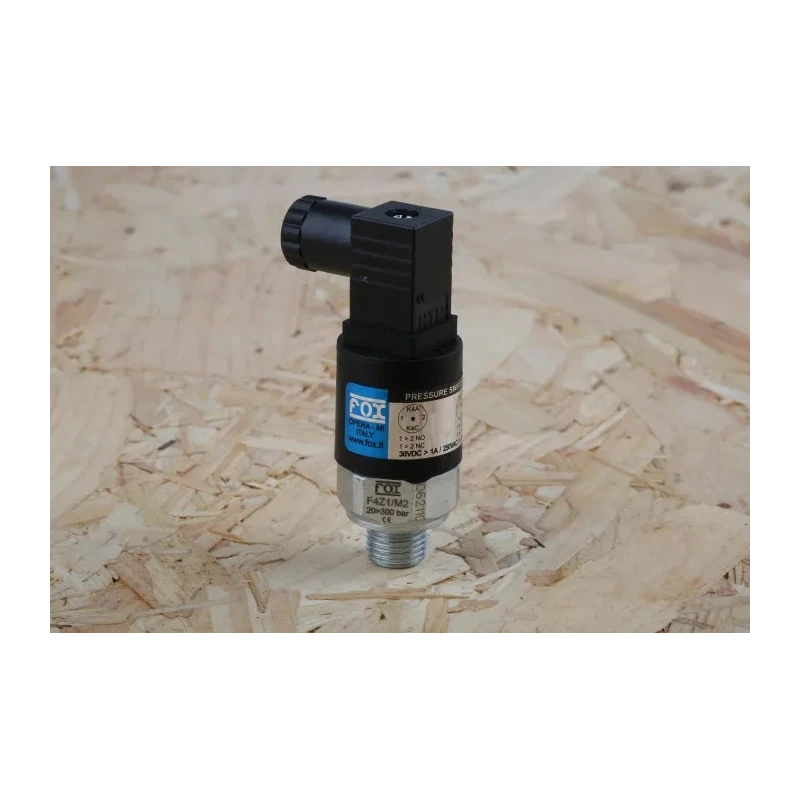

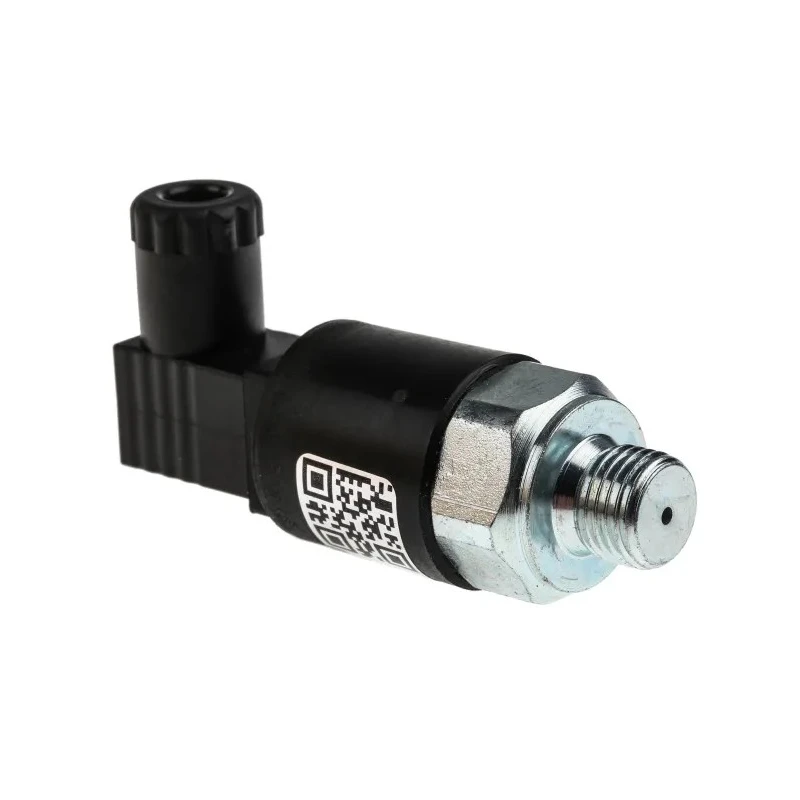

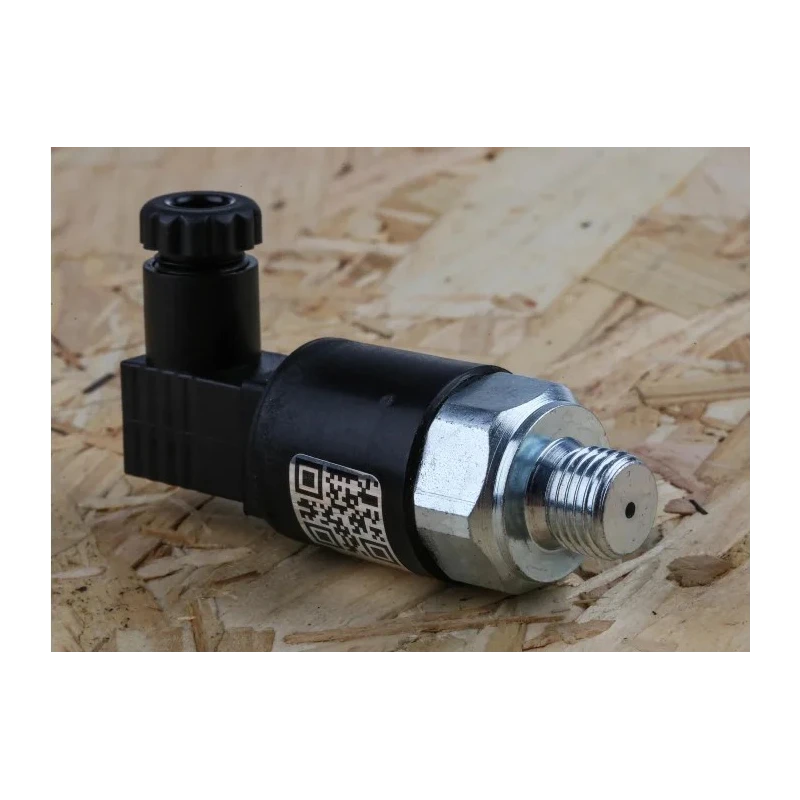

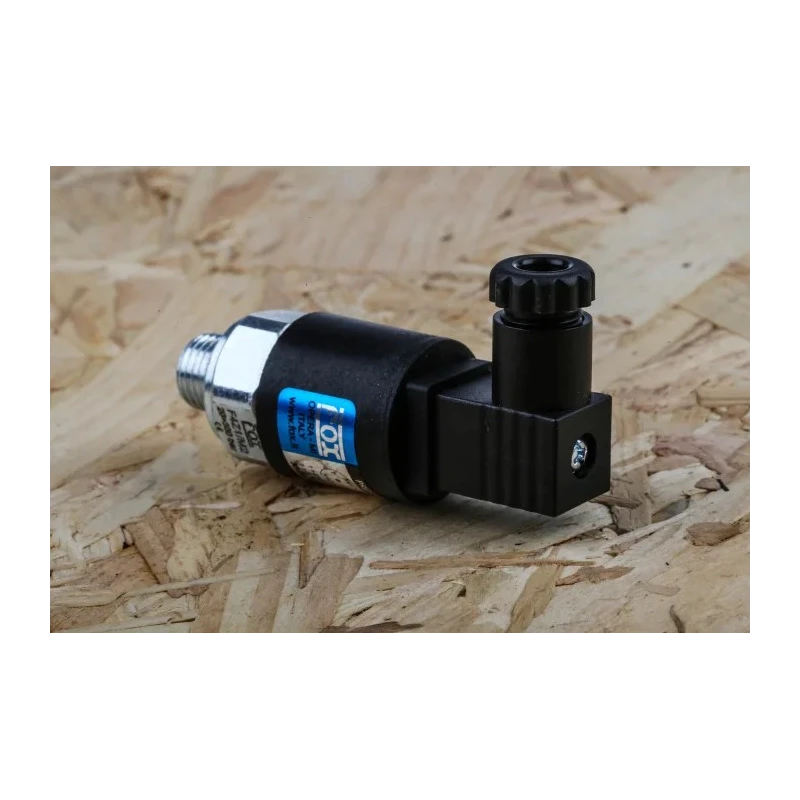

RS PRO Adjustable Pressure Switch NC 20 bar to 300 bar, 1/4 in Port Size, 250V AC, 500mA Current, Steel Construction 297-0080
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 250V ac |
| Brand | RS PRO |
| Maximum Operating Pressure | 300 bar |
| Current | 500mA |
| Model | 297-0080 |
| IP Rating | IP65 |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Pressure Type | Positive Pressure |
| Contact Configuration | NC |
| Switch output | NC, NO |
| Port Size | 1/4 in |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | DIN, RoHS |
| Connection Thread Standard | G |
| Minimum Operating Pressure | 20bar |
| RS PRO Pressure Switch NC 10 bar to 100 barBrand | RS PRO |
Key Features
- The switch operates within a pressure range of 20 bar minimum to 300 bar maximum.
- Electrical rating up to 250V AC with a maximum current of 500mA.
- It features normally closed (NC) and normally open (NO) contact outputs.
- Compact and versatile design suitable for mounting in any orientation.
- Operating temperature range from -25°C to 85°C, rated IP65 for dust and water resistance.
- Adjustable preset pressure by rotating the central screw for precise pressure detection.
- Durable steel body ensures longevity with a mechanical life of 1,000,000 cycles at 70 bar.
- Certified to DIN and RoHS standards, manufactured in Italy.
Product Description
RS PRO 297-0080 Adjustable Pressure Switch NC 20 bar to 300 bar is engineered for reliable pressure detection in hydraulic and pneumatic systems. It is designed to trigger an electrical signal once the preset pressure threshold is reached, ensuring precise control in industrial processes.

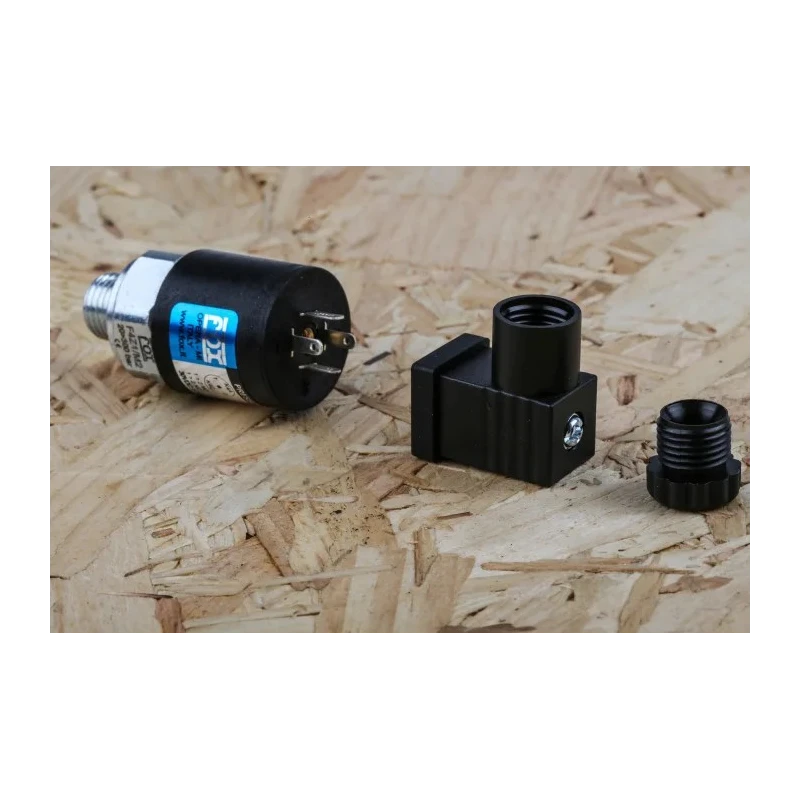

The device features a robust steel construction allowing for mounting in any orientation and adherence to harsh industrial environments. The electrical connection is compliant with DIN 43650 standards and rated IP65 for excellent protection against dust and water ingress.
Operating within a pressure range of 20 to 300 bar, this switch supports a maximum current load of 500mA at 250V AC. It offers both normally closed (NC) and normally open (NO) contact outputs for versatile application needs. The preset pressure can be finely adjusted by turning the screw located centrally on the switch head, providing flexibility for various system demands.
The switch operates effectively within a wide temperature range of -25°C to +85°C and includes mechanical stops that protect the spring and micro-switch from overpressure, enhancing durability and lifespan. It delivers a mechanical life of up to 1 million cycles at 70 bar, making it suitable for high-cycle industrial applications.
Certified to DIN and RoHS standards and manufactured in Italy, the RS PRO 297-0080 Pressure Switch is ideal for use in pumps, compressed air systems, machine tools, process control, hydraulics, and pneumatic equipment.
The switch operates within a preset pressure range adjustable from 20 to 300 bar. Support for 250V AC voltage and up to 500mA current rating ensures compatibility with varied power supplies. Robust steel body construction delivers industrial-grade durability and reliability.
DIN 43650 compliant electrical connectors provide IP65 protection against dust and water. Wide operating temperature range supports environments from -25°C to 85°C. Mechanical stops protect against overpressure, enhancing switch longevity.
Adaptable normally closed and normally open contact configurations for diverse applications. Compact footprint enables installation in constrained industrial setups. Ideal for use across industrial, manufacturing, HVAC, and hydraulic systems.
Explore more industrial Pressure Switches and controls in our extensive EnvMart catalog for dependable pressure monitoring and system automation.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a pressure range of 20 bar minimum to 300 bar maximum.
It supports a voltage of 250V AC and a maximum current load of 500mA.
The switch has an IP65 rating, providing protection against dust and water ingress.
It operates effectively within a temperature range of -25°C to +85°C.
It features both normally closed (NC) and normally open (NO) contact outputs for versatile application needs.
The switch is constructed from durable steel, ensuring longevity in industrial applications.
The preset pressure can be adjusted by rotating the central screw located on the switch head.
It is certified to DIN and RoHS standards, ensuring compliance with industry regulations.
It has a mechanical life of up to 1 million cycles at 70 bar, making it suitable for high-cycle applications.
The port size for this switch is 1/4 inch.
This model is manufactured in Italy.
It is ideal for use in pumps, compressed air systems, machine tools, process control, hydraulics, and pneumatic equipment.
