Eaton Cam Switch 2 Position 90 Degree Toggle Actuator 20A Flush Mount 78628222 T0-3-15453/E/EZ-P1(RS295-2492)

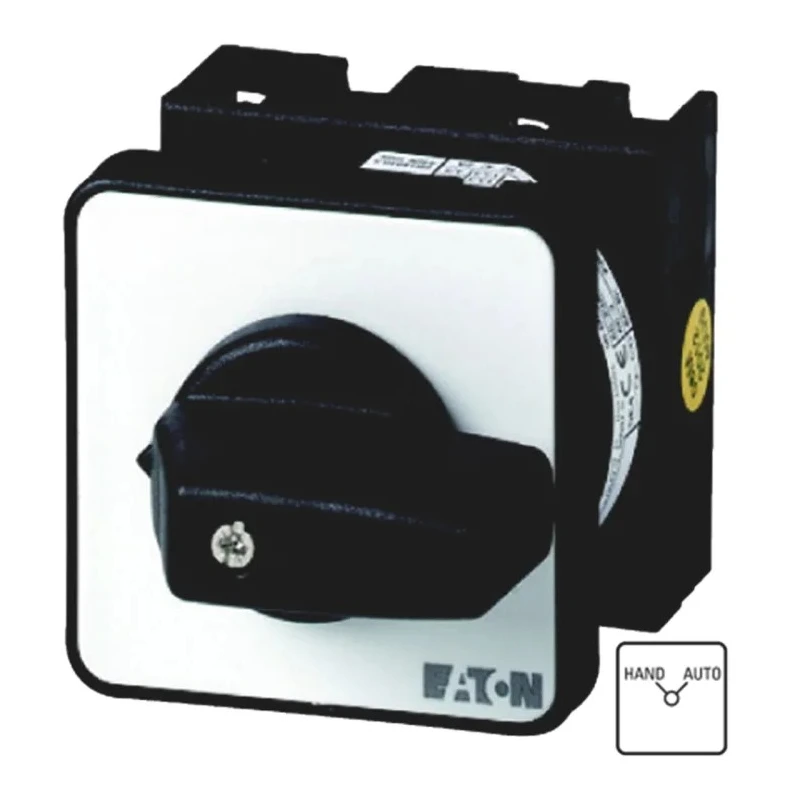

Eaton 78628222 T0-3-15453/E/EZ-P1(RS295-2492) Cam Switch features a 2 position 90 degree toggle actuator designed for reliable electrical switching applications. It supports a 20A contact current at up to 690V AC with a single electrical phase and three poles. The switch is flush mounted featuring a black thumb-grip handle and silver escutcheon plate, suitable for panel thicknesses up to 5mm. With dimensions of 48mm width, 48mm length, and 76mm depth, it integrates seamlessly into industrial control setups.

This Eaton cam switch offers a robust mechanical life of 10 million operations and an operating temperature range from -25°C to 50°C, making it suitable for challenging industrial environments. It is IP65 rated for flush mounting and finger-proof terminals enhance operational safety. The switch complies with multiple international certifications such as CE marking, IEC/EN 60204, CSA-C22.2 No. 14-05, CSA, CSA-C22.2 No. 94, IEC/EN 60947 series, UL 508, and VDE 0660, ensuring high quality and compliance for industrial applications.

The actuator type is toggle with a precise 90° angle of throw, suitable for control panels requiring discrete switching positions. This cam switch is ideal for use in electrical automation, manufacturing equipment, HVAC control systems, and industrial machinery where dependable electrical switching is critical.

Notable features include a 22mm single-hole or standard three-hole flush mounting option and finger-proof terminals, enhancing installation safety and ease. The switch's black thumb-grip handle and silver escutcheon plate add to its ergonomic and aesthetic qualities. Eaton, formerly known as Moeller, ensures quality and reliability with this product.

The Eaton cam switch is a trusted component for applications demanding durable and compliant switching devices in commercial and industrial electrical installations. Features a robust toggle actuator with 90 degree angle of throw for precise operation.

Flush mount with black thumb-grip handle and silver escutcheon plate for easy panel integration. Rated for 20A contact current and 690V AC contact voltage ensuring reliable power handling. Designed for 1 electrical phase with 3 poles and 2 positions for versatile switching applications.

IP65 rated for flush mounting with finger-proof terminals enhancing safety and durability. Operates across a temperature range from -25°C to +50°C suitable for varied environments. Mechanical life expectancy rated at 10,000,000 operations providing long-term reliability.

Complies with multiple international standards and certifications including CE, IEC, CSA, UL, and VDE approvals. Compact dimensions: 48mm width x 48mm length x 76mm depth allow ease of integration into control panels. Mount type is flush with maximum panel thickness of 5mm supported ensuring compatibility.
