Phoenix Contact MVSTBR 2.5/9-ST-5.08 Series Pluggable Terminal Block, 9-Contact, 5.08 mm Pitch, 1 Row, 12A, 320V 1792317

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact MVSTBR 2.5/9-ST-5.08 Series Pluggable Terminal Block, 9-Contact, 5.08 mm Pitch, 1 Row, 12A, 320V 1792317

Name: Phoenix Contact MVSTBR 2.5/9-ST-5.08 Series Pluggable Terminal Block, 9-Contact, 5.08 mm Pitch, 1 Row, 12A, 320V 1792317
Brand: PHOENIX CONTACT
SKU: 325644
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Voltage	320V
Brand	Phoenix Contact
Colour	Green
Orientation	Horizontal
Current	12A
Length	12.5mm
Model	1792317
Depth	26mm
Width	45.72mm
Housing Material	Polyamide
Series	MVSTBR 2.5/9-ST-5.08
Number of Rows	1
Pitch	5.08mm
Number of Contacts	9
Connector Gender	Female
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	12AWG
Wire Connection Method	Screw

Key Features

Designed for industrial and electronic applications requiring secure and reliable connections.
Features a 5.08 mm universal pitch suitable for worldwide use.
Supports current up to 12 A and voltage rating of 320 V.
Housing made of durable polyamide material with green color.
Screw connection method allowing easy installation and strong contact force.
Accepts wire sizes from 0.2 mm² up to 2.5 mm², or 24 AWG to 12 AWG.
Horizontal orientation with single row and 9 contact points.
Compact dimensions of 45.72 mm width, 26 mm depth, and 12.5 mm length.

Product Description

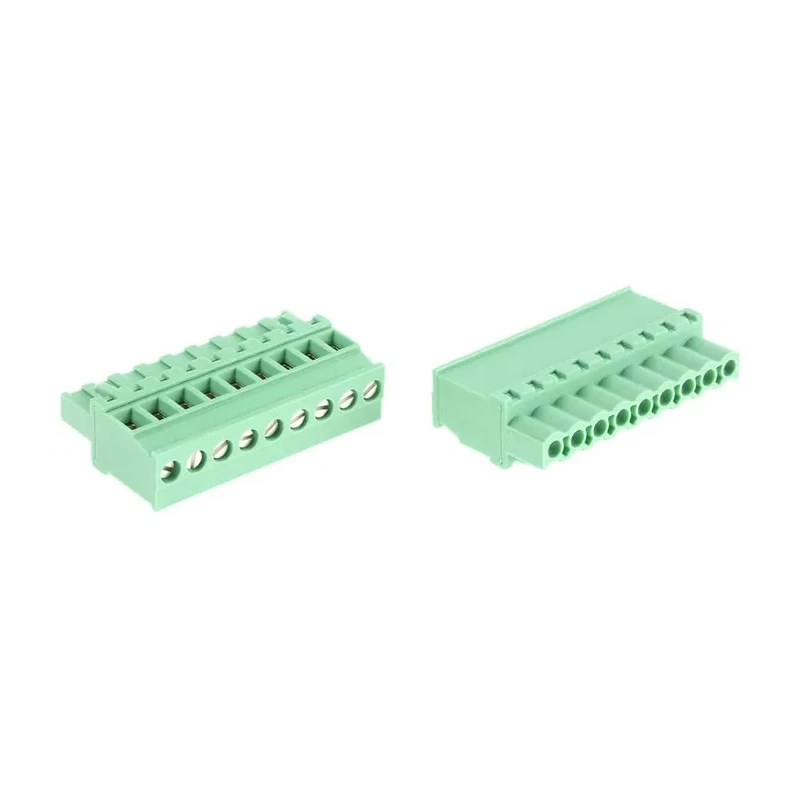

Phoenix Contact 1792317 is a MVSTBR 2.5/9-ST-5.08 Series Pluggable Terminal Block designed to provide reliable electrical connections with 9 contacts arranged in a single row and a universal pitch of 5.08 mm. It supports a current of 12 A and a voltage rating of 320 V, making it well-suited for a broad range of industrial and electronic applications including control wiring, instrumentation, control and measurement systems, and industrial electronics.

This terminal block features a robust polyamide housing in green color, providing mechanical strength and resistance to environmental factors. The screw connection method with tension sleeves ensures a secure wire connection with minimal temperature rise due to maximum contact force. It supports wire sizes from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG), allowing flexibility for various wiring requirements.

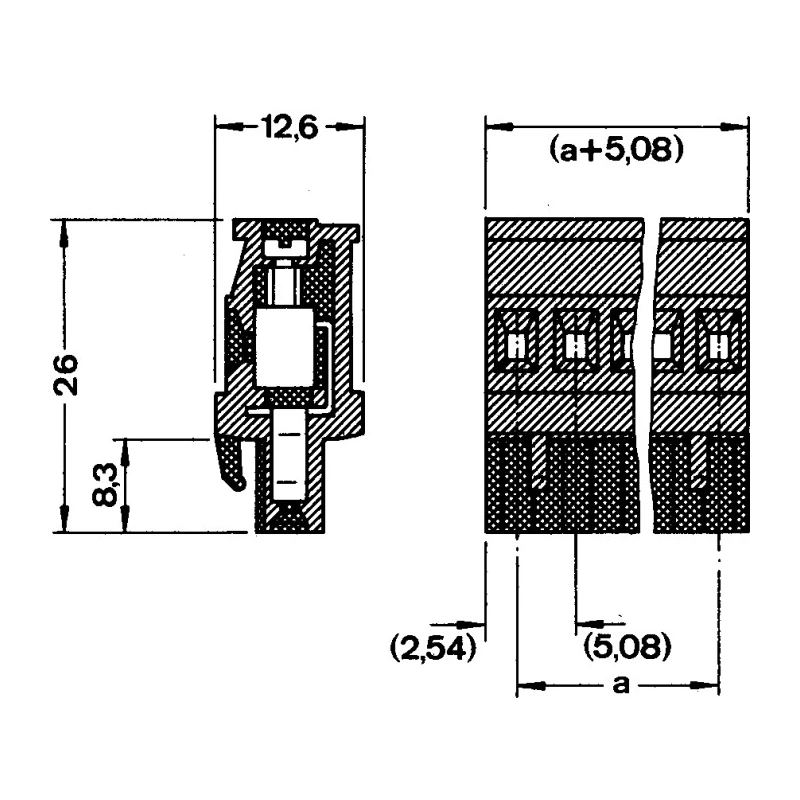

The product has compact dimensions with a width of 45.72 mm, depth of 26 mm, and length of 12.5 mm to fit PCB designs efficiently. The horizontal orientation enhances ease of connection and assembly.

Universal 5.08 mm pitch for worldwide compatibility. Strong and easy screw connection with tension sleeves. Allows connection of two conductors for versatile wiring. Reliable plastic polyamide housing ensuring durability.

Supports a rated current of 12 A and voltage of 320 V. Compact size fits standard PCB spaces efficiently. Applications include industrial, instrumentation, and control wiring. It enables efficient plug-in style installation for PCB terminal connections, widely used in electronics and electrical industries.
