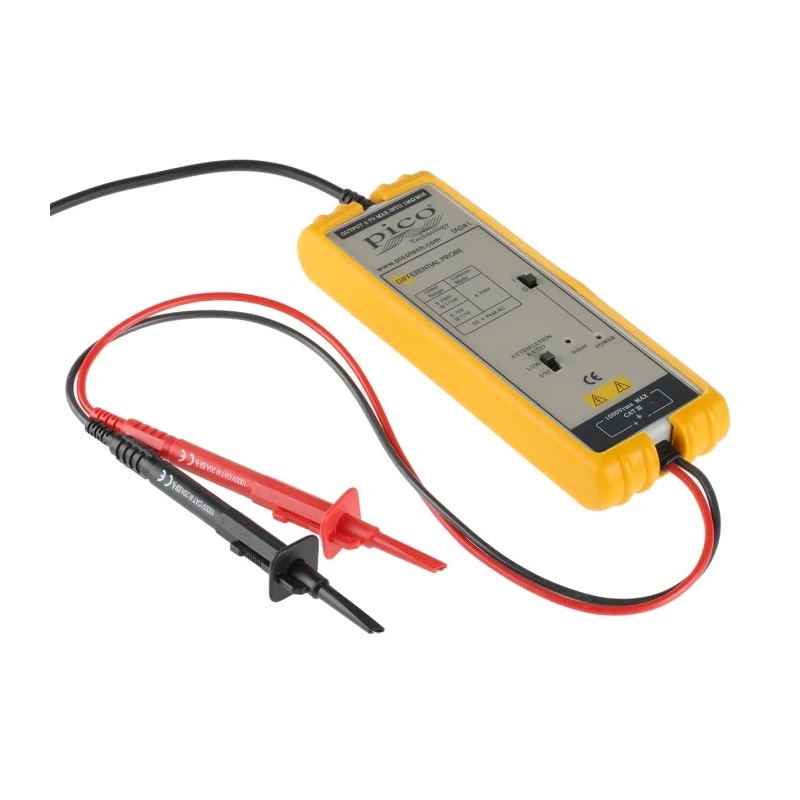

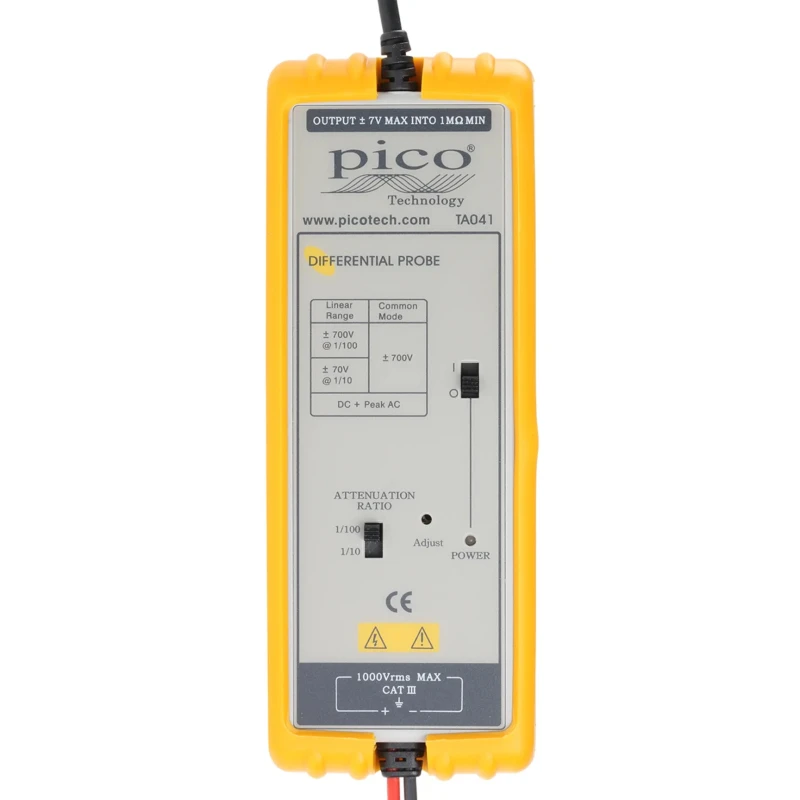

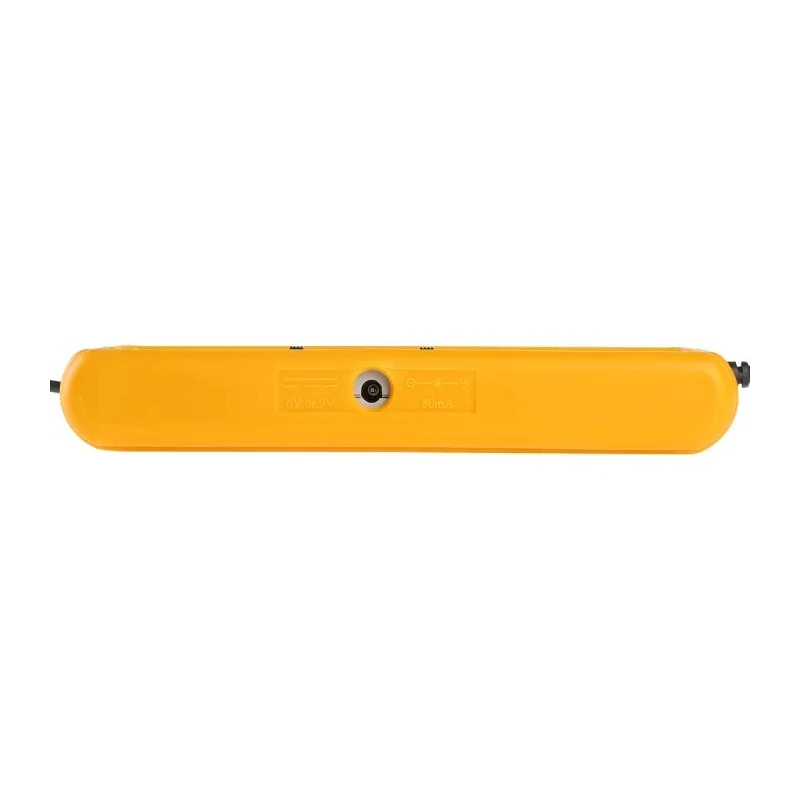

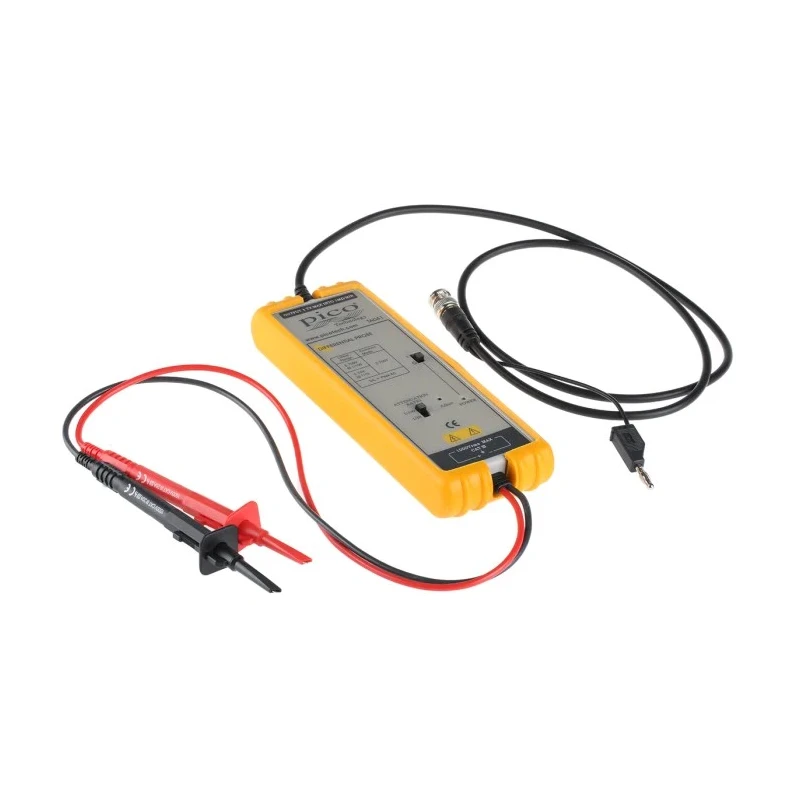

RS PRO Pico Technology TA Series Differential Oscilloscope Probe 25 MHz Bandwidth 1:10, 1:100 Attenuation BNC Connector TA041
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Dimensions | 170x63x21 mm |
| Model | TA041 |
| Connector Type | BNC |
| Bandwidth | 25MHz |
| Series | TA |
| Probe type | Differential |
| Rise Time | 14ns |
| Attenuation | 1:10, 1:100 |
| Number of Probes | 2 |
| Standards/Approvals | IEC 1010.1, IEC 1010.2 031, IEC 61010031 |
| Safety Category Level | CAT III |
| Safety Category Voltage | 1000V |
| Maximum Common Mode Input Voltage | 700V |
| Attenuation 1 | 10, 1:100 |
| Attenuation ratio is 10 | 1/100:1 |
| Differential range is (10 | 1) ±70V (DC + peak AC) or 70VRMS |
| Common mode range is ±700V (DC + peak AC) or 700VRMS (10 | 1 & 100:1) |
| By selecting attenuation ratio 1 | 10, this oscilloscope probe can measure signals below 70 V to get higher resolution and less noise. Or else, set the attenuation to 1:100 |
| Maximum differential is (100 | 1) ±700V (DC + peak AC) or 700VRMS |
| RS PRO Oscilloscope Probe, Active Type, 25MHz, 1 | 10, 1:100, BNC ConnectorBrand: RS PRO |
| Pico Technology TA Series TA041 Oscilloscope Probe, Differential Type, 25 MHz, 1 | 10, 1:100, BNC Connector |
Key Features
- Active differential probe suitable for high common-mode voltage up to ±700V.
- Bandwidth range is DC to 25 MHz with an accuracy of ±2%.
- Input impedance of 4 MΩ || 5.5 pF each side to ground ensures signal fidelity.
- Two attenuation options allow signal measurement below 70 V or up to 700 V with reduced noise.
- Connector type is high-quality BNC for secure and reliable connection.
- Complies with IEC 1010.1, 1010.2 031, and IEC 61010031 safety standards.
- Includes two probes enabling differential measurement capability.
Product Description
RS PRO TA041 Pico Technology differential oscilloscope probe provides high precision measurements with a bandwidth of 25 MHz and attenuation ratios of 1:10 and 1:100. It is designed for use with oscilloscopes requiring differential input for accurate high voltage measurements.
This active probe is capable of handling maximum common mode input voltages of ±700 V (DC + peak AC), making it suitable for applications involving high voltage differential signals. The probe features an input impedance of 4 MΩ in parallel with 5.5 pF on each input line to ground, which maintains signal integrity and reduces noise.
The instrument connector is a robust BNC type, ensuring a secure connection to test equipment. Its compliance with IEC 1010.1, IEC 1010.2 031, and IEC 61010031 further guarantees safe operation within industrial environments. The probe supports CAT III safety rating with voltage limits of 1000 V, enabling use in demanding electrical and electronic test scenarios.
Users benefit from selectable attenuation ratios, where 1:10 allows measurement of signals below 70 V with higher resolution and reduced noise, and 1:100 permits measuring signals up to 700 V RMS. The rise time of 14 ns permits capture of relatively fast signals within the 25 MHz bandwidth.
Typical use cases include industrial, laboratory, construction, HVAC, electronics manufacturing, and electrical maintenance sectors where differential signal measurement is critical. The product includes two probes, enhancing measurement capabilities for common mode and differential voltages.
Active differential probe for high voltage differential measurements. Measurement bandwidth from DC to 25 MHz supports a diverse range of applications. Safe operation up to 700 V common mode voltage with CAT III 1000 V rating.
Selectable attenuation settings optimize measurement accuracy and noise reduction. Durable BNC connector assuring reliable signal transmission. Compliance with relevant IEC safety standards. Includes two probes to support differential measurements.
Explore the wide range of Oscilloscope Probes and accessories on EnvMart for comprehensive test & measurement solutions.
