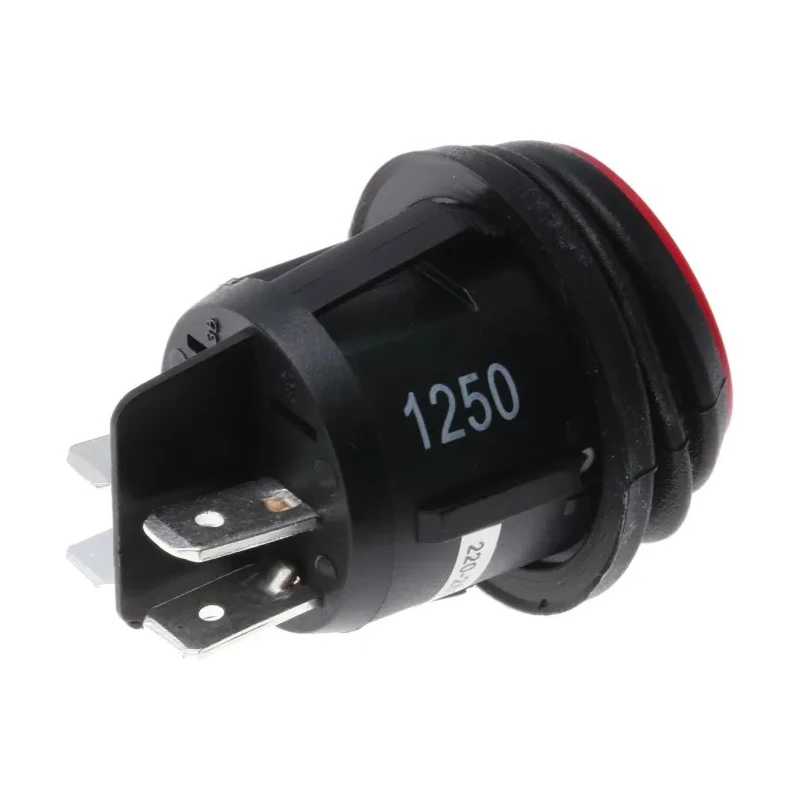

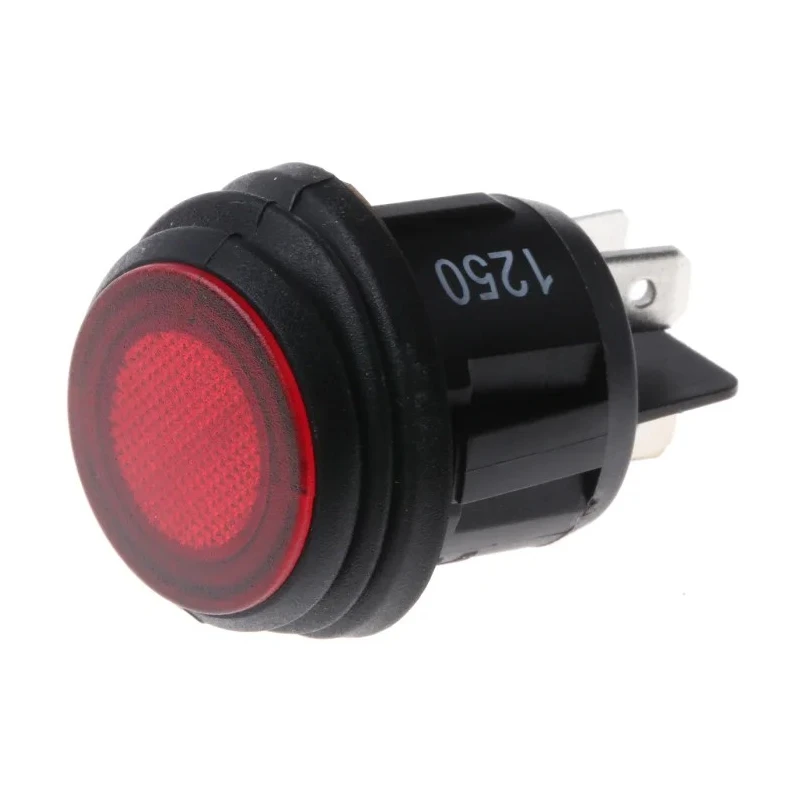

ZF Illuminated DPST On-Off On-Off Rocker Switch Panel, 16A, 28V DC, Red Actuator KDH3AEA2RBB

ZF KDH3AEA2RBB illuminated DPST On-Off On-Off rocker switch panel features a robust design crafted for demanding industrial, electrical automation, and control applications. Rated for 16A contact current and 28V DC operation, the switch offers reliable circuit isolation with clear ON/OFF indication via its red illuminated actuator.

Constructed with high-quality polyamide 66 housing, the switch provides IP56 ingress protection against dust and water ingress, ensuring dependable performance in harsh and outdoor environments. Its panel cutout diameter of 20.2 mm allows for straightforward panel mounting, while the quick connect terminals facilitate efficient wiring.

The rocker switch’s design supports a wide operating temperature range from -25°C to 85°C and delivers a mechanical life expectancy of 100,000 operations, coupled with a DC electrical life of 6,000 cycles, underscoring its durability in industrial automation and control systems. The round actuator provides ergonomic handling and operational ease.

This switch meets global quality and safety certifications including VDE and UL, making it suitable for use in industrial machinery, electrical panels, commercial equipment, and manufacturing automation. Its illuminated feature assists users in easily identifying switch status in control panels and electrical assemblies.

This rocker switch features a double pole single throw (DPST) contact configuration for effective circuit control. It supports a switch contact current rating of 16 amperes and a DC voltage of 28 volts. Illuminated with a red actuator color, it ensures clear status visibility.

Built with polyamide 66 housing, the switch is IP56 rated for dust and water resistance, suitable for harsh environments. The panel cutout size fits 20.2 mm diameter openings for easy mounting. It has a durable mechanical life of 100,000 operations and a DC electrical life of 6,000 cycles.

Operating temperature range spans from -25°C to 85°C, making it suitable for varied industrial conditions. Quick connect terminals enable efficient wiring and installation. The round actuator style enhances user ergonomics and operational comfort.

Certified to VDE and UL standards for quality and safety assurance. Explore EnvMart’s extensive range of Rocker Switches and electrical components to find compatible parts and accessories for your automation and electrical panel requirements.
