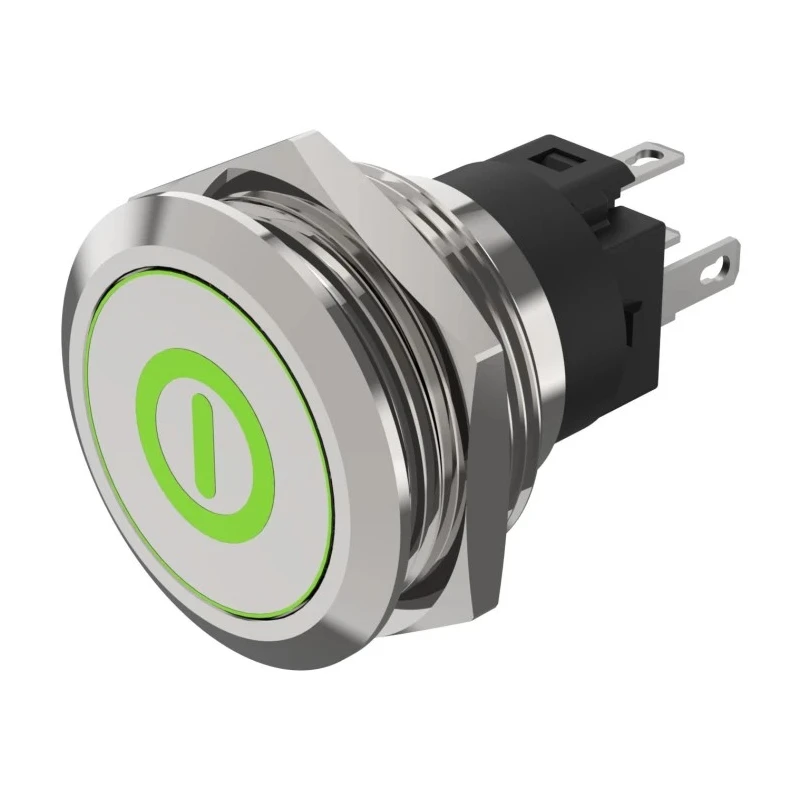

EAO Illuminated Push Button Switch Panel Mount, Latching, SPDT, Green LED, 22.3 mm Cutout, IP65, IP67, 3A 82-6151.2A34.B001



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	82-6151.2A34.B001
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	Latching
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, UL, CCC, cUL
LED Colour	Green
Switch Operation	Latching
Actuator Colour	Silver
Contact DC Voltage	240V dc
Switch Contact Current	3A
Contact AC Voltage	240V ac
Legend	On-Off

Key Features

The actuator colour is silver with a flush mount stainless steel 304 finish.
It features a green LED indicator for On-Off status with excellent tactile feedback.
The switch supports a contact current of 3A and operates up to 240V AC/DC.
It has robust IP65 and IP67 front protection making it suitable for outdoor and industrial use.
Rated for operation from -30°C to 70°C in demanding environments.
The switch is vandal- and impact-resistant with IK10 rating ensuring durability.
Its lifetime exceeds one million cycles providing reliable long service life.
Applications include public ticketing machines, industrial machinery, elevators, security systems, medical and food industry equipment.

Product Description

EAO 82-6151.2A34.B001 Illuminated Push Button Switch is a high-quality panel-mounted device featuring a 22.3 mm cutout size and silver actuator with durable stainless steel 304 material. It operates as a latching pushbutton switch with SPDT contact configuration and is illuminated by a green LED to provide clear On-Off status indication.

The switch supports both AC and DC voltages up to 240V with a contact current rating of 3A. It is designed for use in harsh and demanding industrial environments, featuring front panel protection rated IP65 and IP67, suitable for protection against dust and temporary water immersion. The unit is also vandal and impact resistant with an IK10 rating, ensuring robustness in public and industrial settings.

This illuminated pushbutton switch has an operating temperature range from -30°C to 70°C, making it resilient across diverse climatic conditions. Its gold contacts ensure reliable switching even at low voltages and currents. The tactile feedback is excellent, and the switch is engineered for over one million operational cycles guaranteeing long-term reliability.

Typical applications span across exposed public areas such as ticketing and vending machines, industrial machinery controls, elevator systems, building management access, security systems, audio-video equipment, medical devices, and food processing industries.

Silver actuator with stainless steel 304 construction. Latching operation with SPDT contact configuration. Green LED illumination with On-Off legend for status indication. IP65 and IP67 front panel protection for dust and water ingress resistance.

Vandal and impact resistant design rated IK10. Supports contact voltage of 240V AC/DC and 3A contact current. Operating temperature range from -30°C to 70°C. Over 1 million cycles lifespan with gold contacts for low voltage switching.

This product is made in Switzerland and complies with CB, UL, CCC, and cUL standards ensuring international quality and safety. It is ideal for industrial, commercial, and specialized applications requiring reliable, illuminated Push Button Switching solutions.
