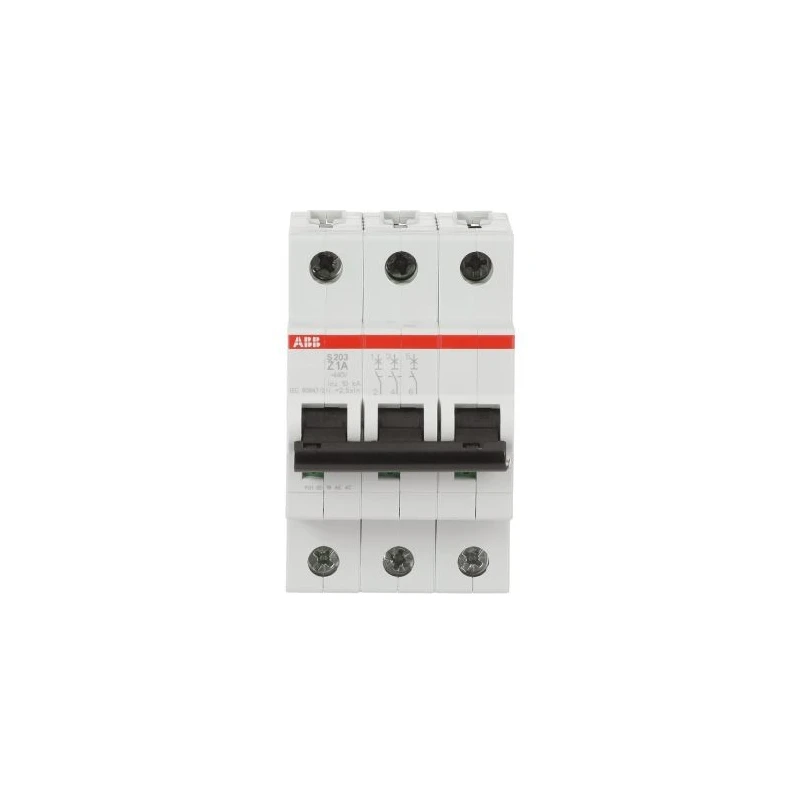

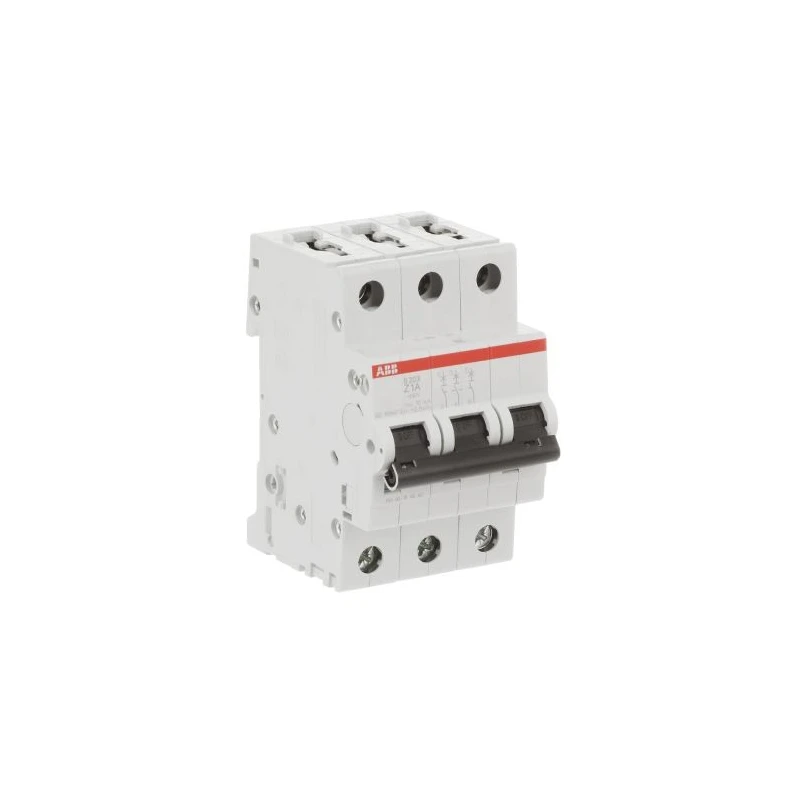

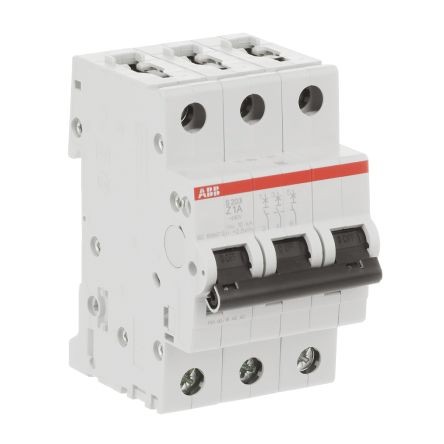

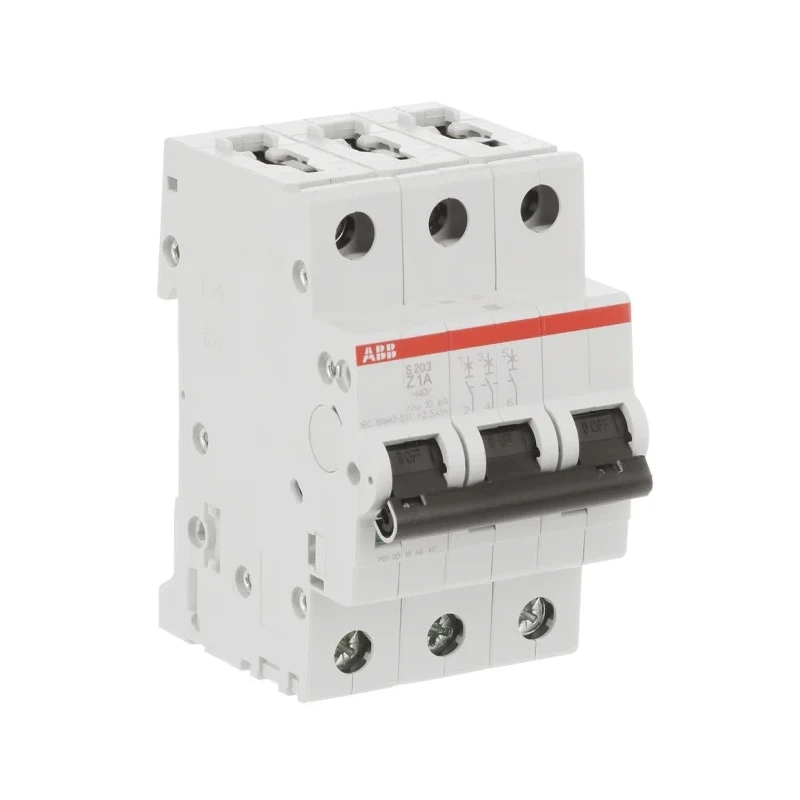

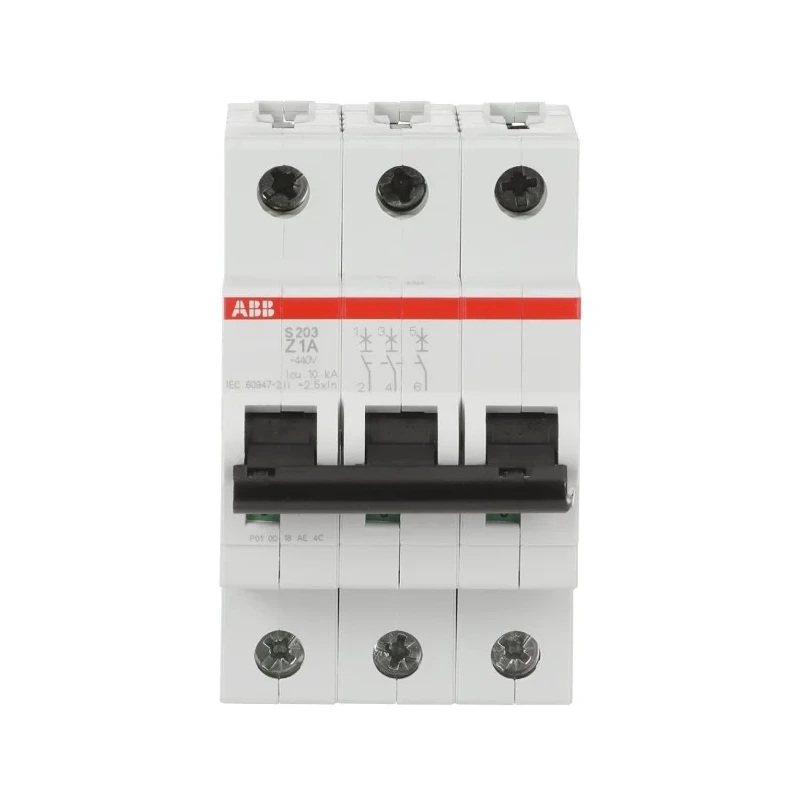

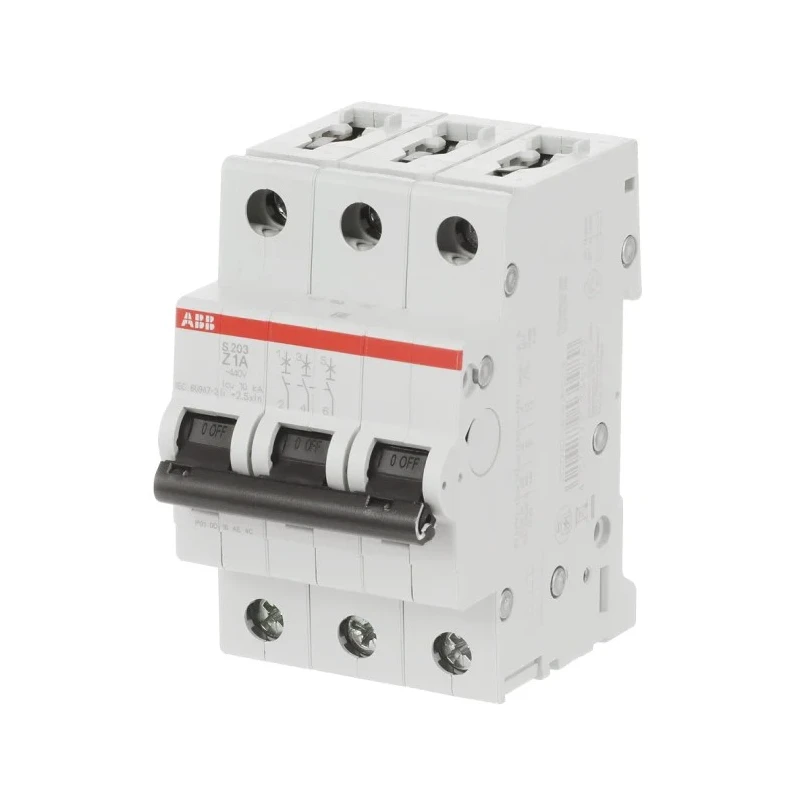

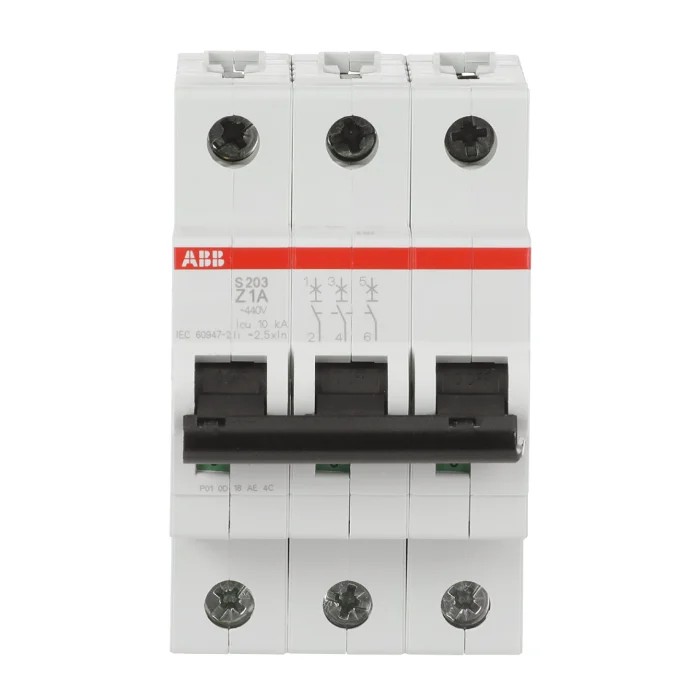

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 1A Type Z 400V AC 6 kA 2CDS253001R0218 S203 Z 1A - 10 KA
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS253001R0218 S203 Z 1A - 10 KA |
| Depth | 69mm |
| IP Rating | IP40, IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 1A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60947-2, IEC/EN 60898-1 |
| Rated AC Voltage | 400V |
| Tripping Characteristics | Type Z |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Electromagnetic, Thermomagnetic |
| Reset Actuator Type | Toggle |
Key Features
- Three-pole design for three-phase circuit protection.
- Type Z thermomagnetic trip enhances nuisance-trip immunity.
- 6 kA breaking capacity minimizes arc damage during fault conditions.
- Screw terminal type ensures secure conductor connections.
- Mountable on DIN Rail for easy panel integration.
- IP40 and IP20 ratings protect against dust and contact hazards.
- Electromagnetic and thermomagnetic tripping mechanisms for overload and short circuit protection.
- Designed for industrial, automation, and control panel applications.
Product Description
ABB 2CDS253001R0218 S203 Z 1A - 10 KA System Pro M Compact S200 Miniature Circuit Breaker offers reliable protection for three-phase electrical circuits operating at 400V AC. This 3-pole breaker is engineered to interrupt overloads and short circuits effectively with a rated current of 1 ampere and a high breaking capacity of 6 kiloamperes.
The device combines thermal and electromagnetic tripping mechanisms to handle prolonged overload conditions and instantaneous faults, respectively. The Type Z thermomagnetic characteristic improves resistance to nuisance trips, making it ideal for sensitive automation and control circuitry.
The breaker is designed for mounting on a standard DIN rail, facilitating quick installation and modifications in distribution and control panels. Screw terminals ensure vibration-resistant, secure conductor connections, enhancing long-term reliability.
Compliant with IEC/EN 60947-2 and IEC/EN 60898-1 standards, it carries IP20 protection when installed and IP40 marking relevant for handling and enclosure protection. The compact dimensions (88mm height, 52.5mm width, 69mm depth) suit panel space constraints.
Three-pole configuration for three-phase electrical circuits. Type Z tripping characteristic for enhanced nuisance-trip immunity. 6 kA breaking capacity limits arc damage during faults. Screw terminal type for secure and lasting electrical connections.
DIN rail mounting enables modular panel setup and ease of installation. Electromagnetic and thermomagnetic mechanisms protect against overloads and short circuits. Protection standards compliance ensures safety and reliability.
IP40/IP20 ingress ratings for protection against dust and contact hazards.
This Miniature Circuit Breaker is widely used in industrial automation panels, motor starter distribution, and overcurrent protection in sensitive instrumentation panels. The product is manufactured in Germany and designed for efficient disassembly, aligning with sustainability goals.
Explore more System Pro M Compact series products and related MCBs on EnvMart for dependable electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this miniature circuit breaker is 6 kA, which helps minimize arc damage during fault conditions.
This model has a rated current of 1 ampere, suitable for three-phase circuits.
The dimensions of this circuit breaker are 88mm in height, 52.5mm in width, and 69mm in depth.
It is designed for mounting on a DIN rail, facilitating easy installation in distribution and control panels.
The circuit breaker has an IP40 rating when installed and an IP20 rating relevant for handling and enclosure protection.
This model utilizes both electromagnetic and thermomagnetic tripping mechanisms for overload and short circuit protection.
The tripping characteristic of this circuit breaker is Type Z, which enhances immunity against nuisance trips.
It complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards, ensuring safety and reliability.
This model features screw terminals, ensuring secure and vibration-resistant electrical connections.
It is widely used in industrial automation panels, motor starter distribution, and overcurrent protection for sensitive instrumentation panels.
This miniature circuit breaker is manufactured in Germany.
This circuit breaker belongs to the System Pro M Compact series by ABB.
