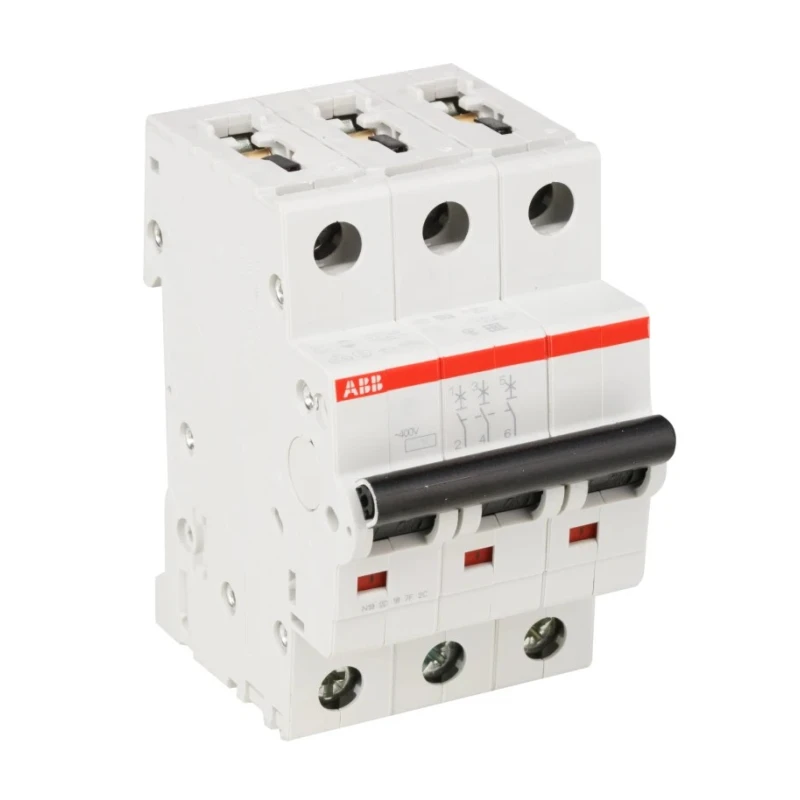

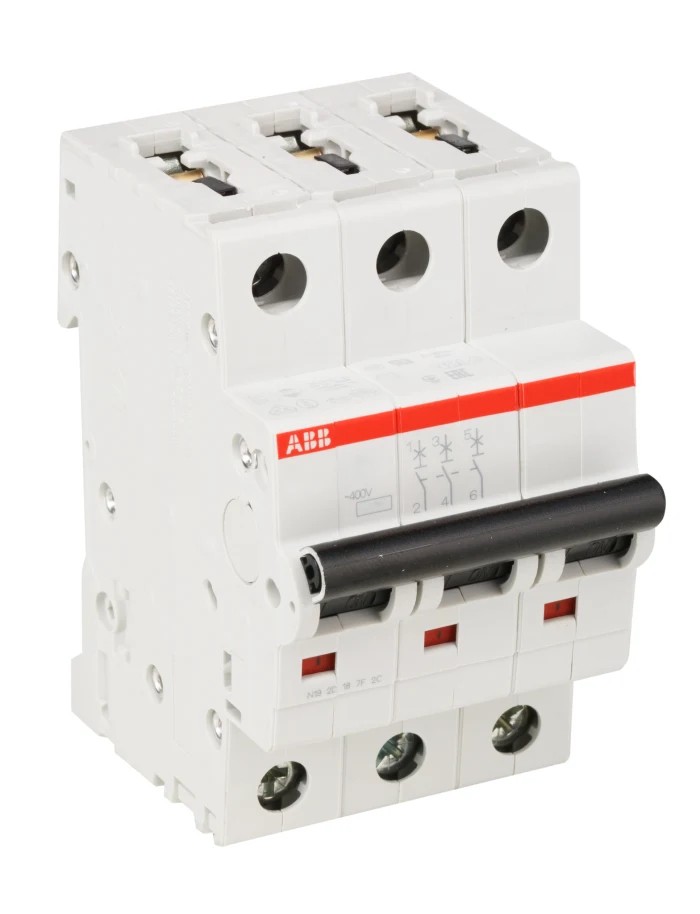

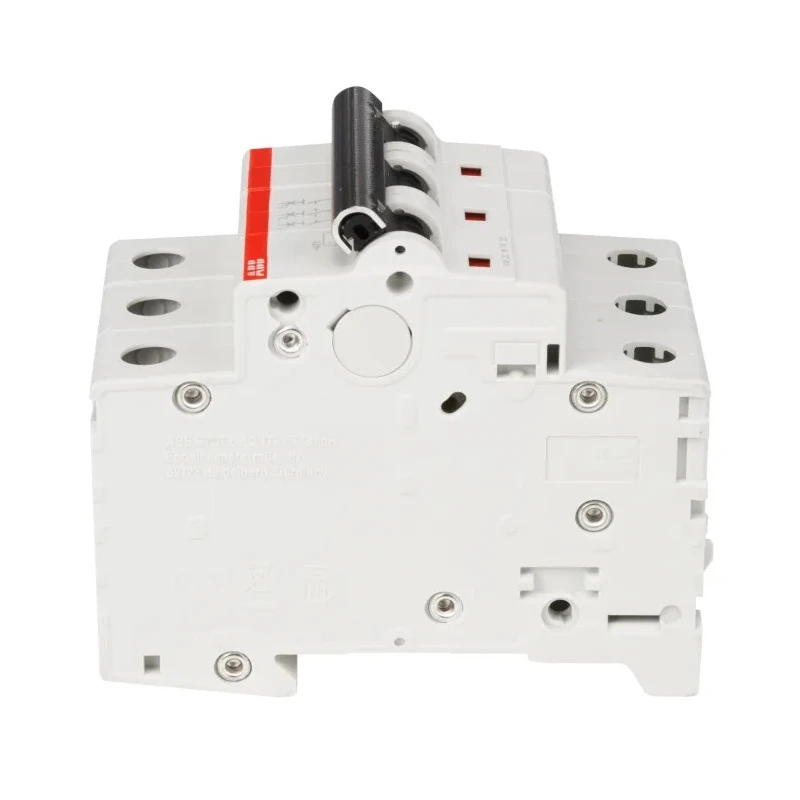

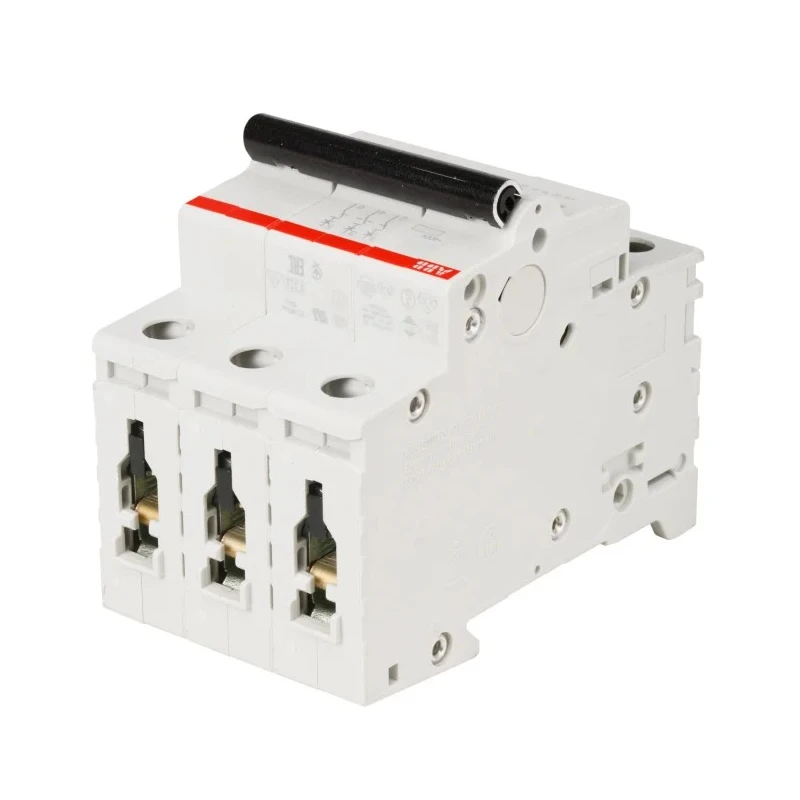

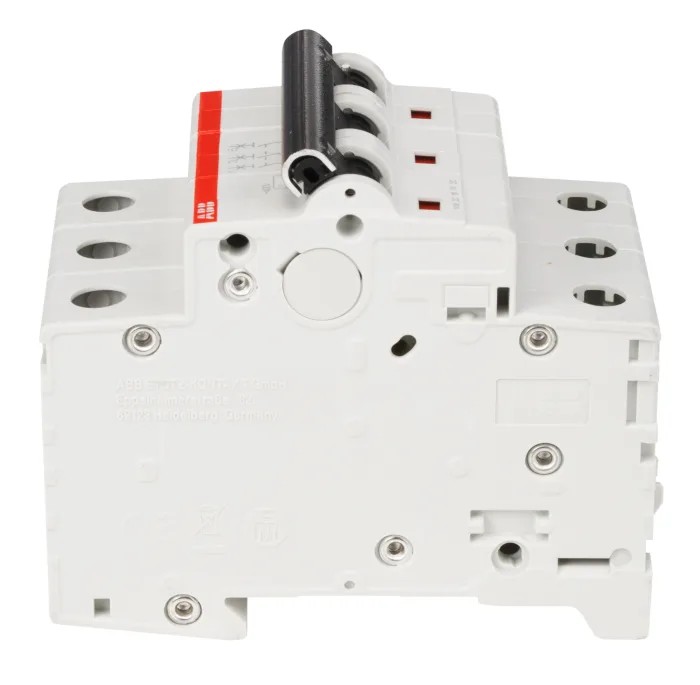

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 32A Type D 440V AC 6kA Breaking 2CDS253001R0321 S203-D32

ABB 2CDS253001R0321 S203-D32 System Pro M Compact S200 Miniature Circuit Breaker is a precision-engineered protection device designed for industrial and commercial electrical installations. This 3-pole MCB supports 32 amperes current with Type D trip characteristics, ensuring effective protection against overcurrent and short circuits in three-phase electrical systems operating at 440 volts AC. Its 6kA breaking capacity provides robustness for demanding electrical applications.

The compact design with dimensions 76mm (height) x 69mm (width) x 76mm (depth) and a lightweight 375g body makes it ideal for installations with space constraints. The thermoplastic housing enhances durability by offering mechanical impact resistance, while the device complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. It mounts conveniently on DIN rails and features screw terminal connections compatible with both busbars and conductors.

Designed for industrial environments, it operates reliably within a temperature range from -25°C to +55°C and includes IP20 and IP40 ingress protection ratings for safety in harsh conditions. The thermal tripping mechanism ensures quick response to overloads, and finger-safe terminals protect users from accidental electric shock.

Rated current of 32A matches requirement for high-power electrical loads. Three-pole configuration suitable for three-phase systems. Type D tripping characteristic ideal for motors and transformers with high inrush currents.

Compact, robust construction suited for tight installations. Thermoplastic housing enables long-term durability with mechanical resistance. Mounts on DIN rails with screw terminals compatible with busbars and conductors.

Certified to international IEC/EN safety standards. Operating temperature range of -25°C to +55°C supports a variety of industrial environments. Finger-safe terminals enhance user safety. Breaking capacity of 6kA ensures secure fault interruption.

This ABB Miniature Circuit Breaker is widely used in industrial fans, compressors (both low and high pressure), HVAC systems, manufacturing, commercial electrical distribution, and other industrial applications requiring reliable short circuit protection. Its compliance with rigorous international standards and robust design promises safety and peace of mind for electrical engineers and installers.
