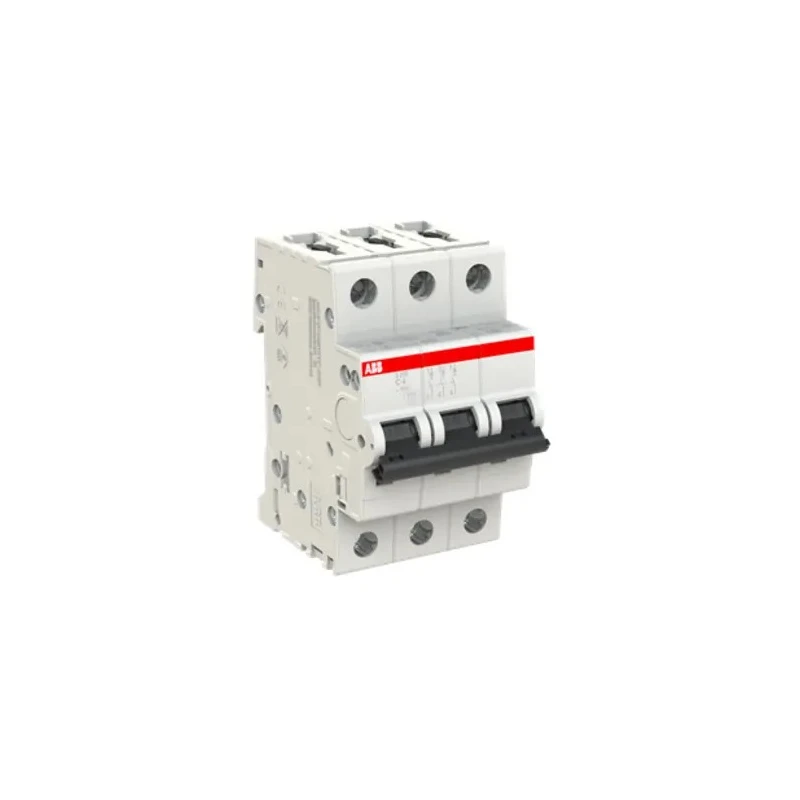

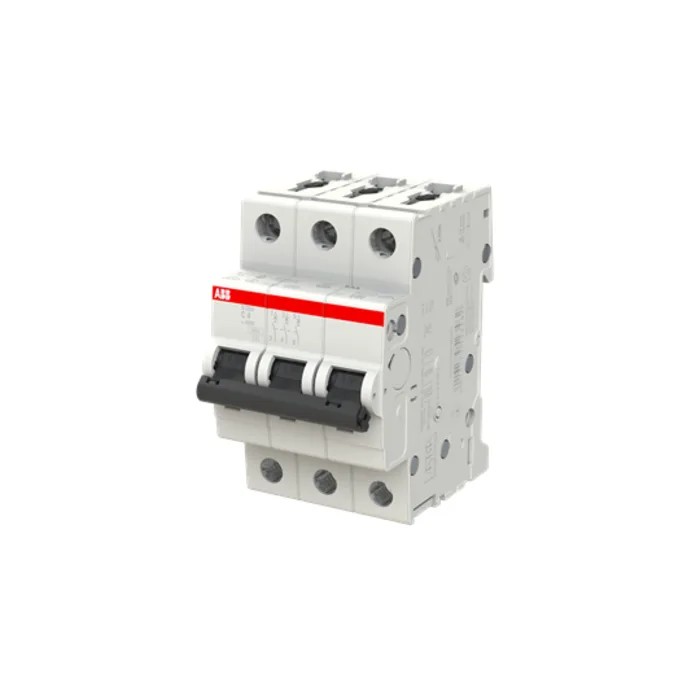

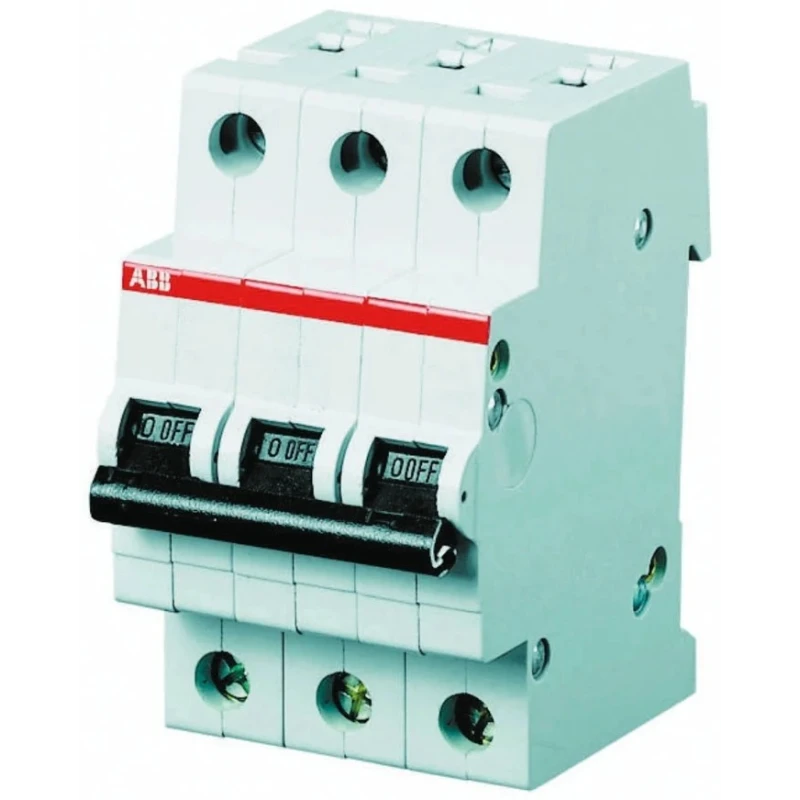

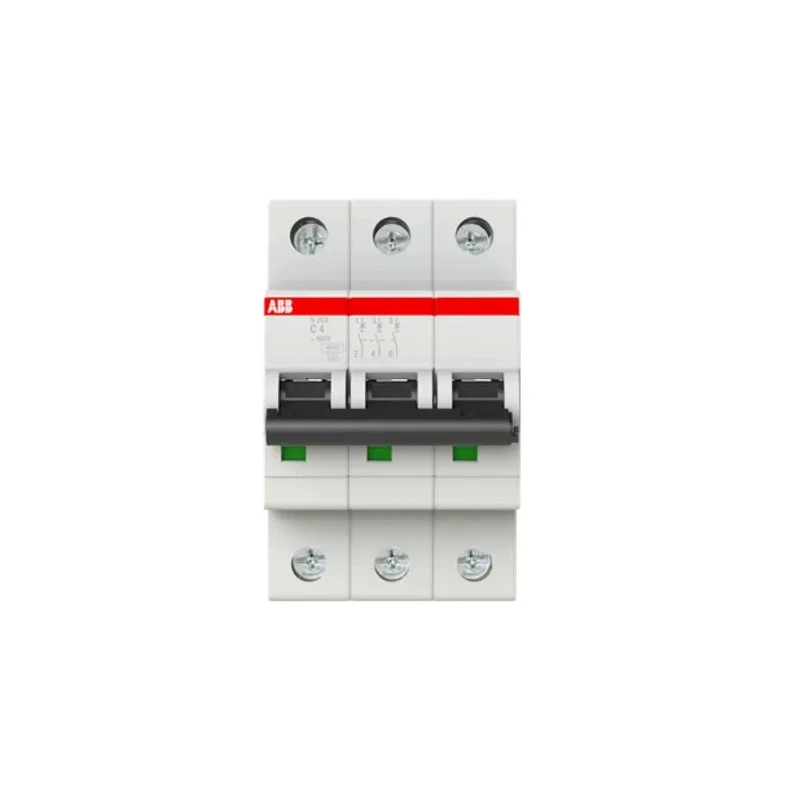

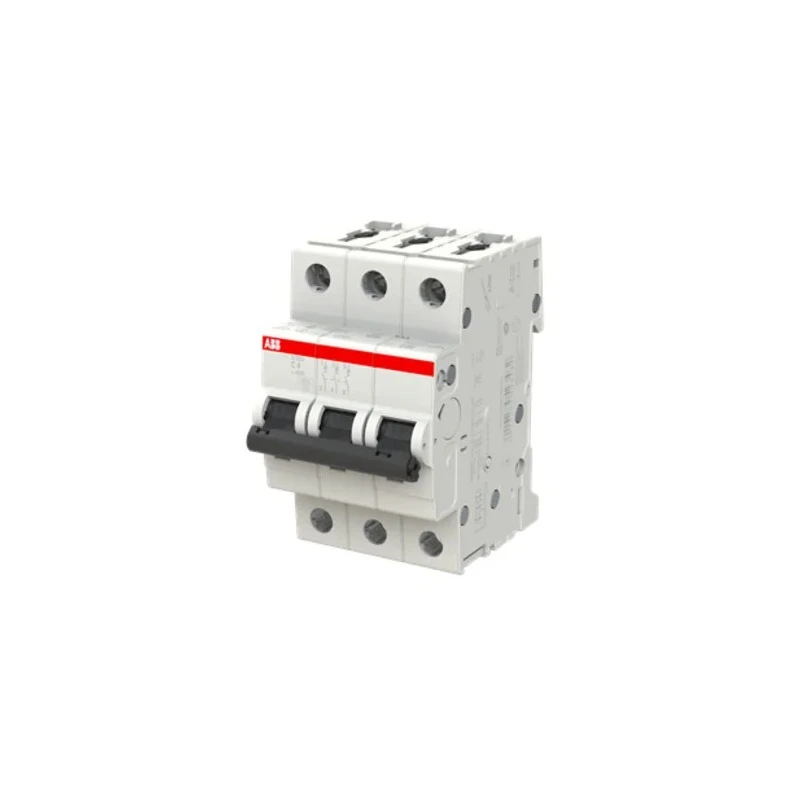

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 4A Type C 400V ac, 110V dc, 6 kA 2CDS253001R0044 S203-C4

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 4A Type C 400V ac, 110V dc, 6 kA 2CDS253001R0044 S203-C4



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS253001R0044 S203-C4
Depth	69mm
IP Rating	IP20, IP40
Width	53mm
Mount Type	DIN Rail
Current Rating	4A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	3
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	400V ac
Rated DC Voltage	110V dc
Tripping Characteristics	Type C
Better World Claim	Designed for Disassembly
Tripping Mechanism	Thermal

Key Features

This device is designed for DIN rail mounting with screw terminals for secure electrical connections.
It features a rated AC voltage of 400V and rated DC voltage of 110V suitable for a broad range of applications.
The compact dimensions (88mm height, 69mm depth, 53mm width) allow easy installation in tight electrical panels.
IP20 and IP40 ratings ensure basic protection and touch safety.
It operates reliably in temperature ranges from -25°C to +55°C for diverse environments.
The circuit breaker uses a thermal tripping mechanism to prevent damage from overcurrents.
Its breaking capacity of 6 kA ensures effective fault current interruption for industrial and residential use.
Adheres to IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality and safety compliance.

Product Description

ABB 2CDS253001R0044 S203-C4 Miniature Circuit Breaker is a 3-pole device rated at 4A designed to protect electrical circuits from overcurrents in industrial, residential, and commercial applications.

This S200 series breaker from the System Pro M Compact range uses a type C tripping curve, meaning it trips when current reaches five to ten times the rated 4A value. It can safely interrupt fault currents with a breaking capacity of 6 kA.

Constructed for DIN rail mounting with screw terminals, the device ensures a secure and easy installation process. Its compact form factor with dimensions 88mm (height) x 69mm (depth) x 53mm (width) is suitable for tightly packed distribution boards.

The device has an IP20 and IP40 rating, providing protection against electrical contact and solid particles, and it operates reliably over a temperature range from -25°C to +55°C. It employs a thermal and electromagnetic tripping mechanism, enhancing protection by detecting overcurrents quickly and minimizing equipment damage.

Standards compliancy includes IEC/EN 60898-1 and IEC/EN 60947-2, ensuring quality and industrial safety benchmarks are met. The breaker is also designed for disassembly as part of ABB's Better World sustainability initiative.

Typical applications include fluorescent lighting systems, residential electrical networks, industrial fans and pumps, and lifting equipment. This device is designed for DIN rail mounting with screw terminals for secure electrical connections.

It features a rated AC voltage of 400V and rated DC voltage of 110V suitable for a broad range of applications. The compact dimensions (88mm height, 69mm depth, 53mm width) allow easy installation in tight electrical panels.

IP20 and IP40 ratings ensure basic protection and touch safety. It operates reliably in temperature ranges from -25°C to +55°C for diverse environments. The circuit breaker uses a thermal tripping mechanism to prevent damage from overcurrents.

Its breaking capacity of 6 kA ensures effective fault current interruption for industrial and residential use. Adheres to IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality and safety compliance. Explore the ABB category on EnvMart for more high-quality circuit breakers and electrical protection devices to meet your industrial and residential needs.
