Nuvotem Talema 230 V ac Toroidal Transformer 2 x 55 V ac 2 Output 50 VA 0050P1-2-055

Nuvotem Talema 0050P1-2-055 toroidal transformer features a robust design with 230 V ac primary voltage and dual 55 V ac secondary outputs, delivering 50 VA power. This transformer is designed for electronic and electrical applications requiring high efficiency and low noise operation.

The compact toroidal core design results in a smaller size and lighter weight compared to conventional transformers. With a diameter of 80mm and height of 33mm, it suits confined spaces. The transformer is open style with leads terminated by copper conductor wires, enhancing connection reliability.

It operates efficiently across a frequency range of 50Hz to 450Hz and within a temperature range from 0°C to 180°C. The device has a secondary current rating of 450mA and incorporates both primary and secondary windings. Its double insulated primary leads ensure safe electrical operation.

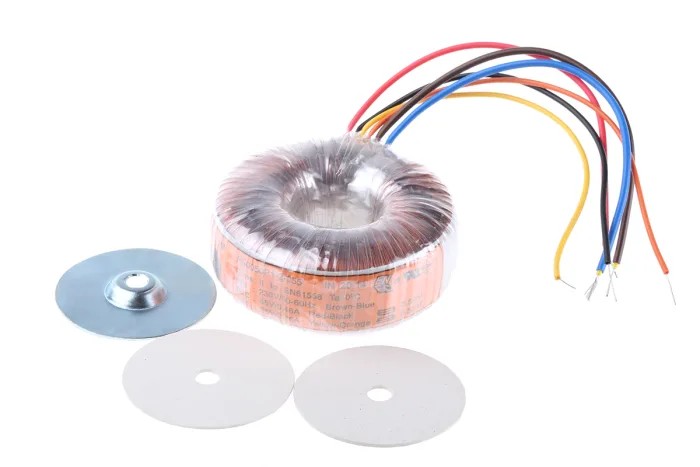

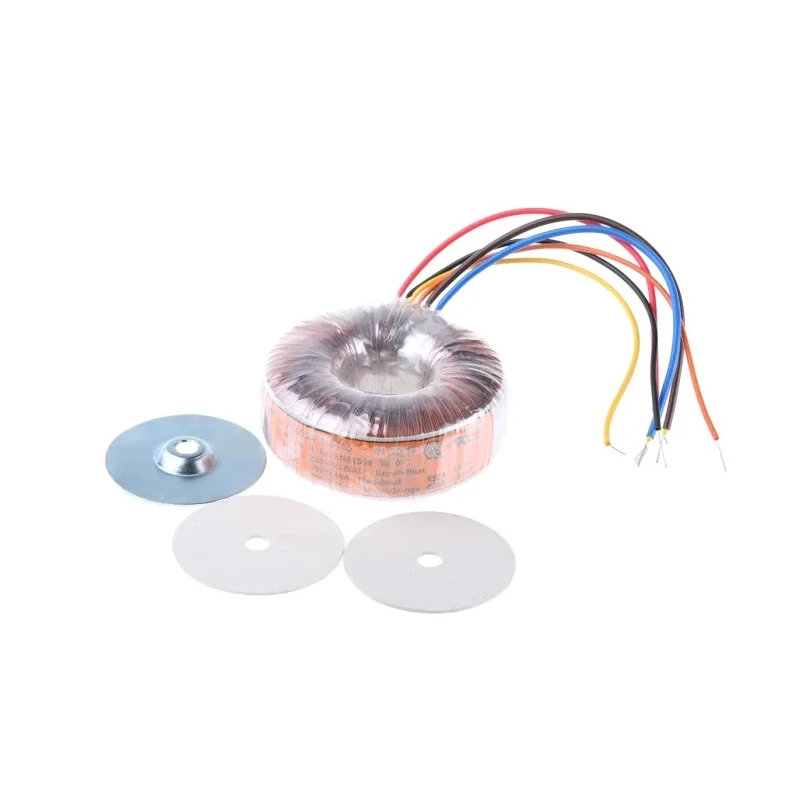

This transformer meets multiple international standards including BS415, UL506, UL5, VDE0550, EN61558, and EN60065. The unit undergoes 100% electrical and flash testing, guaranteeing quality and performance reliability. It is supplied complete with a full mounting kit for convenient installation.

Application areas include industrial electronics, power supplies, and other commercial electronic equipment where clean, reliable power is necessary. Its extremely low magnetic emissions and minimal induced noise make it suitable for sensitive electronic environments and laboratory instrumentation.

High-quality Toroidal Transformer with low noise and low iron losses. Two secondary outputs 2 x 55 V ac with 450mA current capability. Compact and lightweight design with 80mm diameter and 33mm height. Open style with copper conductor termination wires for secure connection.

Operates within temperature range 0°C to 180°C and frequency range 50Hz to 450Hz. Complies with BS415, UL506, UL5, VDE0550, EN61558, and EN60065 standards. Supplied with full mounting kit for easy installation. Extremely low radiated magnetic field and induced noise.
