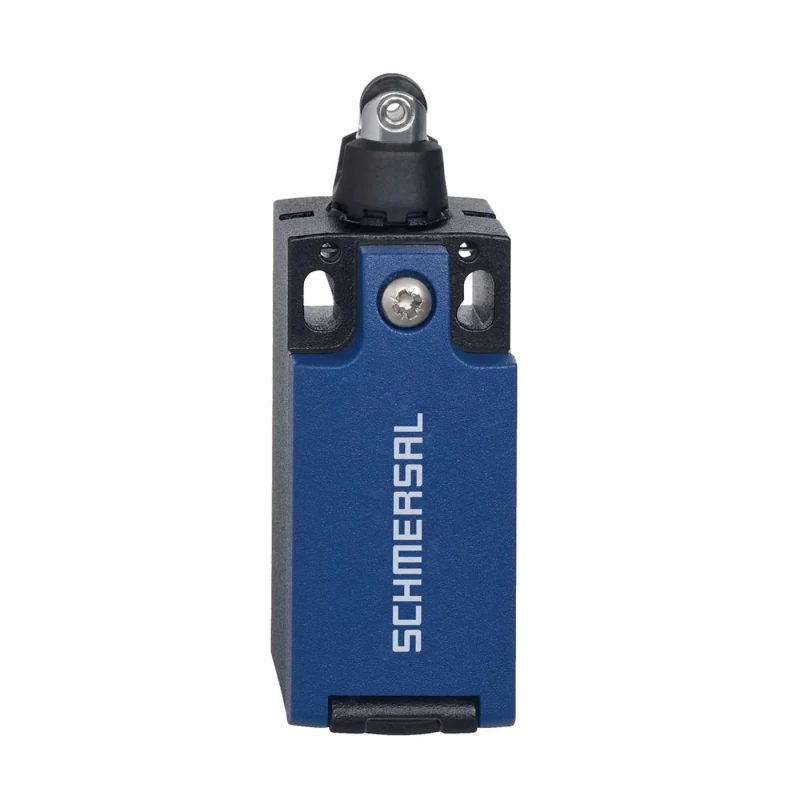

Schmersal Roller Plunger Limit Switch 1 NO/2 NC IP66 IP67 Die Cast Zinc Metal Housing 240V PS215-Z12-R200 103014957

The Schmersal PS215-Z12-R200 Roller Plunger Limit Switch is a high-quality automation component designed for industrial applications requiring precise position and limit sensing. Manufactured with a die cast zinc metal housing, this limit switch is robust and built to withstand harsh environmental conditions, featuring ingress protection ratings IP66 and IP67 that offer excellent resistance to dust and water immersion.

Equipped with a roller plunger actuator, the switch operates on a snap switch element principle and includes 1 normally open (NO) and 2 normally closed (NC) silver contacts, providing multiple contact configurations for versatile electrical load switching. The device supports a switching current of up to 15.3A and functions safely at a switching AC voltage of 240V, with a DC switching voltage rated at 24V.

Designed for rigorous industrial environments, it operates reliably within a temperature range of -30°C to 80°C. The switch incorporates screw type terminals for secure and stable electrical connections and enables conduit entry via a 1 x M20 x 1.5 interface for easy wiring integration.

With a mechanical life rated at 10,000,000 operations and a B10d normally-closed contact rating of 20,000,000 operations, the PS215-Z12-R200 series ensures long-term durability. It meets international standards IEC 60947-5-1 and ISO 13849-1 for safety and performance and is certified according to cULus, EAC, and CCC hazardous area standards, providing assurance of compliance in demanding industrial settings.

This limit switch finds applications in factory automation, machinery control, conveyor systems, electrical panels, and other industrial automation scenarios where accurate position detection and reliable switching are essential.

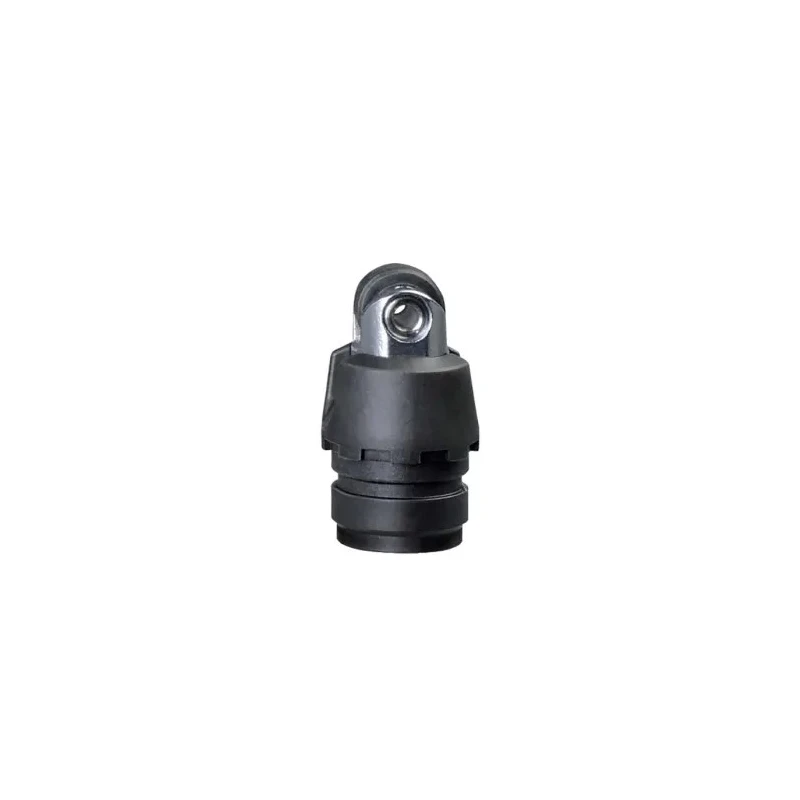

The roller plunger actuator provides reliable mechanical operation with a snap switch element. Constructed with die cast zinc metal housing ensuring durability and protection. Rated for protection classes IP66 and IP67 for resistance against dust and water ingress.

Features 1 normally open (NO) and 2 normally closed (NC) silver contacts for versatile switching. Has a high switching current of 15.3A and operates at a switching AC voltage of 240V. Designed for harsh environments with operating temperature range from -30°C to 80°C.

Equipped with screw terminals for secure electrical connections. Mechanical life expectancy of 10 million operations ensuring long service life. Includes hazardous area certifications cULus, EAC, and CCC for safety compliance.

Compact size with dimensions of length 32.5mm and width 31mm for easy integration.

The Schmersal PS215-Z12-R200 Roller Plunger Limit Switch represents a reliable and industrial-grade solution suitable for electrical, automation, and manufacturing segments. Explore more Limit Switch options and related automation components at EnvMart.
