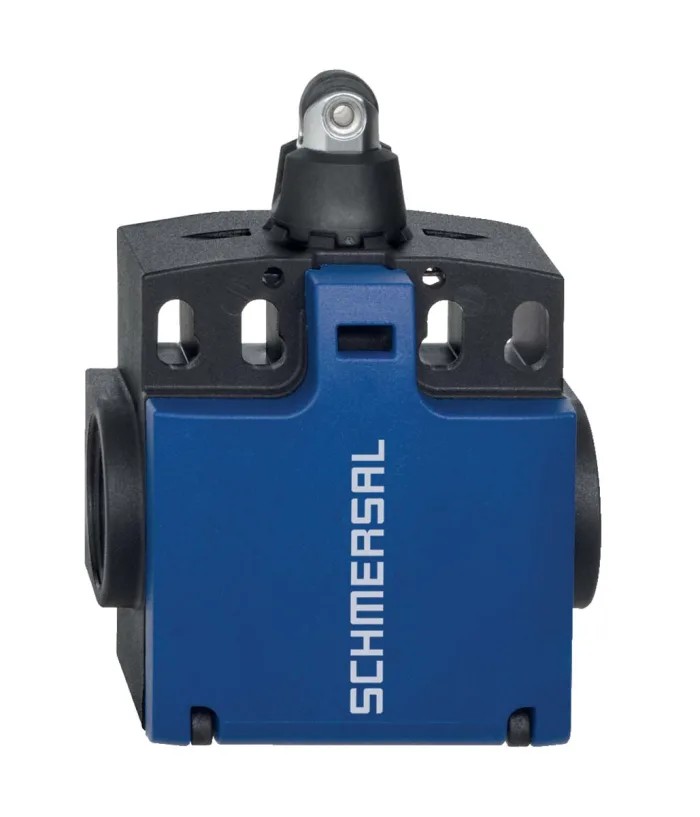

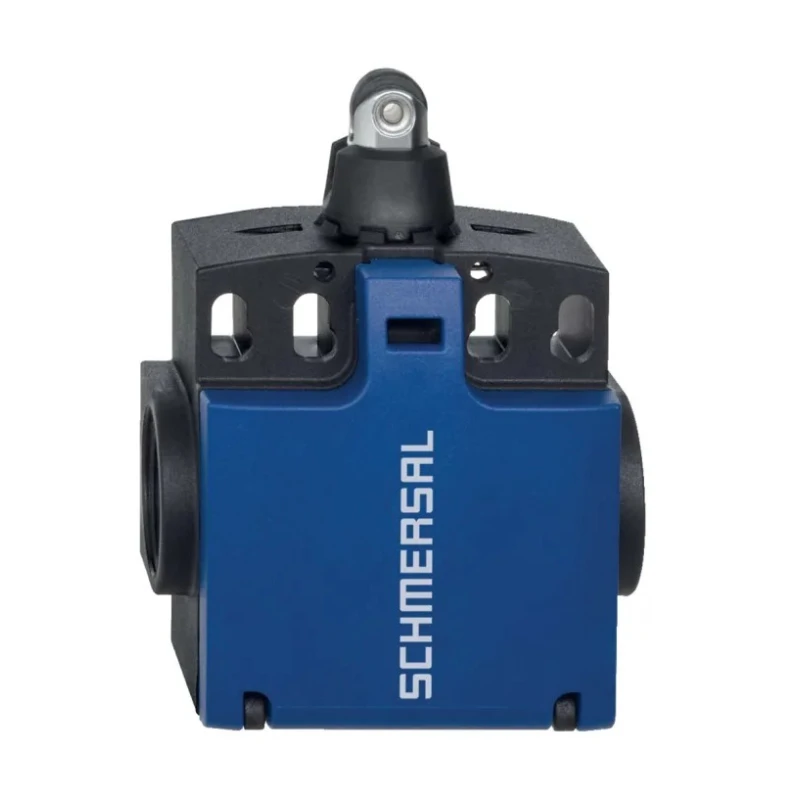

Schmersal DIN Rail Limit Switch PS226-Z12-R200 Series, 1 NO/2 NC Contacts, IP67/IP66, Plastic Fibreglass 103015053

Schmersal 103015053 DIN Rail Limit Switch PS226-Z12-R200 Series provides robust switching solutions suitable for demanding electrical and automation applications. Featuring a DIN rail actuator type and housed in a durable plastic fibreglass reinforced enclosure, this limit switch offers excellent mechanical and environmental protection.

This device includes one normally open (NO) contact and two normally closed (NC) contacts with silver contact material, suitable for reliable electrical control. It supports a switching current of 3A, with a thermal test current of 5A, operating both DC (24V) and AC (240V) voltages.

Designed for longevity, the switch endures a mechanical life of 10 million operations and a B10d rating of 20 million operations for NC contacts. Protection classifications IP66 and IP67 provide resistance against dust ingress and water jets, making it ideal for harsh industrial settings.

The switch’s operating force of 40N ensures effective actuation, while the screw terminal type allows secure electrical connections. It features two M20 x 1.5 conduit entries facilitating easy and safe wiring installations.

Environmental tolerance spans from -30°C to 80°C, which supports diverse industrial environments. Compliance to standards such as ISO 13849-1 and IEC 60947-5-1 underscores its safety and performance reliability.

The compact design with 33mm length and 59mm width provides flexibility in panel mounting and electrical enclosure integration. Manufactured in Germany, the product maintains high-quality manufacturing standards.

The actuator type is designed for DIN rail installation. It features silver contact material for effective electrical switching. The switch supports 24V DC and 240V AC switching voltages. Operating temperature ranges from -30°C to 80°C for versatile environmental use.

Equipped with screw terminal type for secure connections. Mechanical life rating is up to 10 million operations. Protection class IP66 and IP67 ensures resistance to dust and water exposure. It includes two conduit entries of M20 x 1.5 thread size.

The switch operates with an operating force of 40N for reliable activation. Manufactured in Germany to ISO and IEC approval standards. Compact size suitable for panel installation.

Ideal for industrial automation, electrical control panels, manufacturing systems, and HVAC applications, the Schmersal PS226-Z12-R200 series limit switch offers reliability and robust protection. Explore more Schmersal Limit Switch products and related electrical components at EnvMart.
