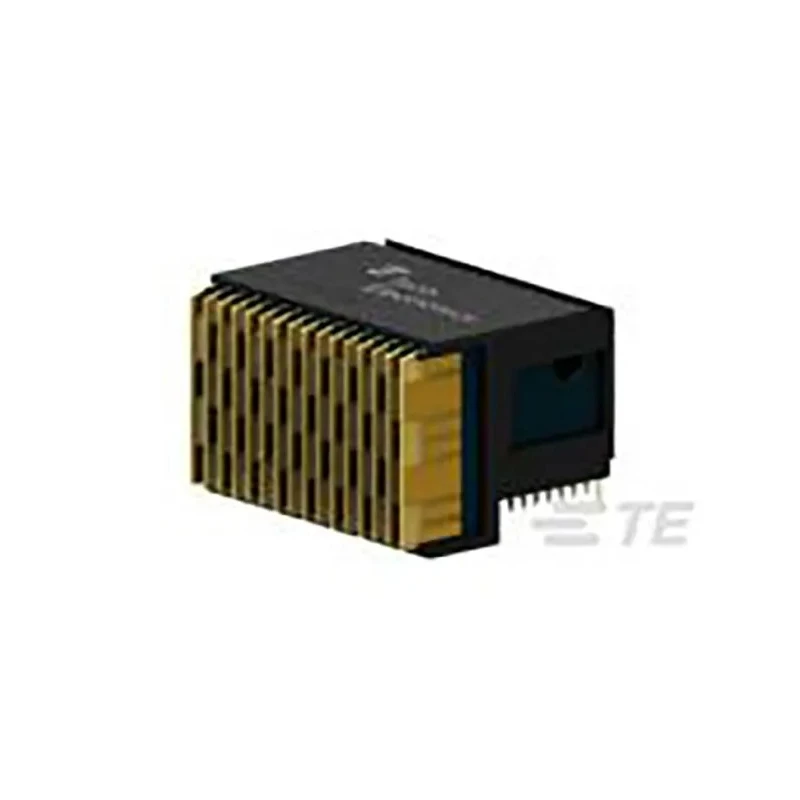

TE Connectivity High Speed Backplane Connector 1.9 mm Pitch Right Angle Male 16 Column 7 Row 112 Way 2102771-1

TE Connectivity 2102771-1 is a high speed backplane connector engineered for demanding industrial and military applications. Featuring a 1.9 mm pitch and right angle male configuration, this connector provides 112 contact points arranged in 16 columns and 7 rows, making it suitable for complex board-to-board interconnect requirements.

The housing material is liquid crystal polymer, chosen for its lightweight and rugged characteristics. The phosphor bronze contact material is gold plated with tin plating to provide exceptional electrical performance, corrosion resistance, and long-term reliability. The connector supports solder termination on board mounts and features a pinless interface design that enhances mechanical robustness and ease of assembly.

This connector series is designed with a quad-redundant contact system that significantly improves resistance to shock and vibration, making it ideal for harsh environments. It supports multiple high speed data transmission protocols including Ethernet, Fibre Channel, InfiniBand, PCI Express, and Serial RapidIO, enabling versatile integration across electronic systems.

Operating temperatures range from -55°C to 105°C, ensuring dependable performance under extreme thermal conditions encountered in ground defense, missile defense, aerospace, and commercial sectors. The connector's modular design allows it to be combined with power, RF, and optical modules in compliance with VITA standards (VITA 62, VITA 67, VITA 66), enhancing system flexibility.

Phosphor bronze contacts with gold and tin plating ensure superior conductivity. Liquid crystal polymer housing offers ruggedness and lightweight performance. Quad-redundant contact structure for high vibration and shock resistance.

Supports multiple high speed data protocols including Ethernet and PCIe. Right angle orientation with 112 contacts arranged in 16 columns and 7 rows. Operating temperature range from -55°C to 105°C for reliability in harsh environments.

Compatible with VITA power, RF, and optical modules for modular system design. Suitable for military, aerospace, commercial, and industrial applications. Explore a wide range of Backplane Connectors and industrial electronic components on EnvMart for robust and reliable interconnect solutions.
