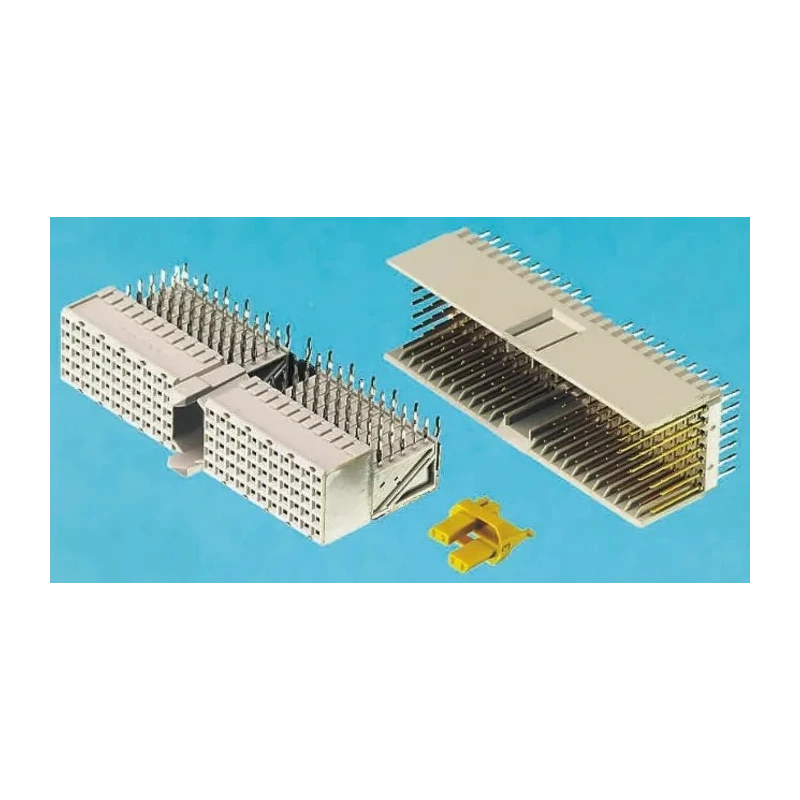

TE Connectivity Z-PACK HM 2 mm Pitch Hard Metric Type B Backplane Connector Straight Male 22 Column 7 Row 154 Way 5188835-1

TE Connectivity's 5188835-1 model is part of the Z-PACK HM 2 mm pitch hard metric type B backplane connector series, designed specifically for connecting daughterboards to motherboards or backpanels in compact PCI systems. This backplane connector features 154 ways with 22 columns and 7 rows, providing high-density and reliability for industrial and electronic applications.

The connector utilizes a polyethylene terephthalate (PET) housing that offers excellent mechanical strength and thermal stability. Its phosphor bronze contacts are plated with gold over nickel, ensuring superior electrical conductivity and resistance to corrosion, which is vital for high-performance electronics.

Operating temperatures range from -55°C to 125°C, allowing use in demanding environments such as industrial automation and telecommunications. The press fit termination type and through-hole mount ensure secure PCB connections with enhanced mechanical retention and electrical performance.

Polyethylene terephthalate housing material for durability and stability. 154 contact points arranged in a 22 column by 7 row configuration to support complex boards. Gold over nickel plating on phosphor bronze contacts for excellent conductivity and corrosion resistance.

Straight male connector with press fit termination and through-hole mount type for secure assembly. Current rating of 1.5A ensures adequate power handling for compact PCI systems. Wide operating temperature range suitable for harsh industrial environments.

Z-PACK HM series ensures compatibility with Euro-style packaging and compact PCI configurations.

This connector is widely used in industries requiring reliable backplane interconnects including computing, telecommunications, industrial controls, and other electronics manufacturing sectors. Its design supports hot-swap capability, making it suitable for real-time applications where minimal downtime is critical. The Z-PACK HM system accommodates standard and special length connectors for 3U and 6U card formats.

For engineers and manufacturers seeking high-quality Backplane Connectors that combine durability, performance, and ease of integration, the TE Connectivity 5188835-1 is an ideal choice. Browse EnvMart’s extensive catalog for additional TE Connectivity products and related backplane connector solutions.
