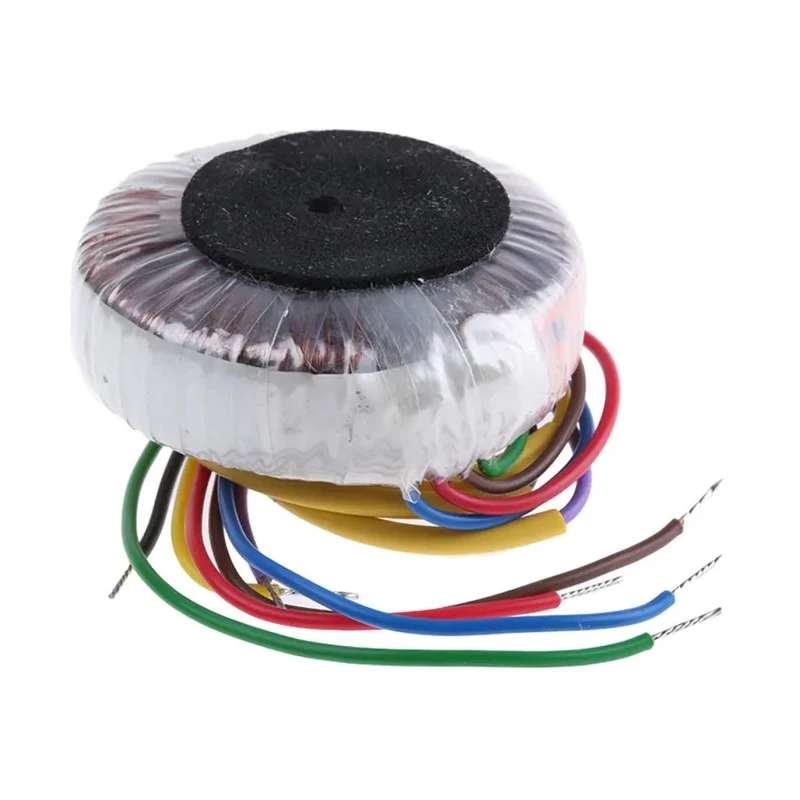

Nuvotem Talema Toroidal Transformer 230 V ac Primary, 2 x 9 V ac Secondary, 2 Outputs, 5 VA, 50/60 Hz, 180°C Max 60021

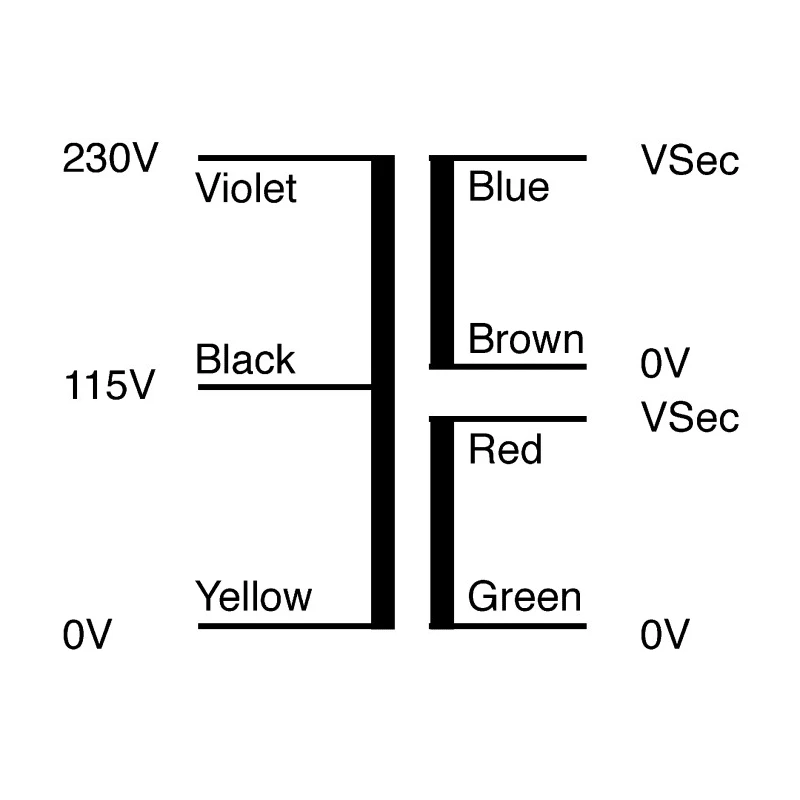

Nuvotem Talema 60021 Toroidal Transformer is engineered with a 230 V ac dual primary winding and two 9 V ac secondary outputs to deliver a total power of 5 VA. It is ideal for use in industrial, electronic components, and power supply applications requiring reliable and compact transformer solutions.

This transformer supports both 50 Hz and 60 Hz operating frequencies, ensuring compatibility with a broad range of electrical systems. Its low-profile, mini open style design combines a diameter of 49 mm and a height of 19 mm, facilitating easy mounting with a center fixing hole.

Double insulated primary leads and a potted center with an M4 fixing hole optimize safety and mechanical stability. With a maximum operating temperature of 180°C, it can withstand demanding thermal environments.

Designed to minimize radiated magnetic fields and induced noise, this Toroidal Transformer reduces interference in sensitive electronic circuits. The twin secondary windings offer flexibility to connect in series or parallel or use independently according to application needs.

Certified according to EN60742, BS415, EN60950, UL506, VDE0551, VDE0550, and EN60065 (IEC65), it meets international quality and safety standards for electronic transformers. Applications span industrial automation, power supplies, electronic instruments, and HVAC systems requiring robust power transformation in a compact form factor.

Features a 230 V ac dual standard tapped primary winding suitable for 50/60 Hz frequency operation. Provides two secondary outputs with 278 mA current rating for flexible use. Constructed with a low-profile, compact design featuring a diameter of 49 mm and height of 19 mm.

Designed with double insulated primary leads and potted center fixing for safety and durability. Operates safely up to a maximum temperature of 180°C. Certified to multiple international standards including EN60742, BS415, EN60950, UL506, VDE0551, and VDE0550.

Ensures low radiated magnetic field and minimal induced noise for high performance. Manufactured and tested according to rigorous quality control for industrial reliability. Explore further Nuvotem Talema transformers and high-quality electronic components at EnvMart for your industrial and laboratory needs.
