Nuvotem Talema Toroidal Transformer 230 V AC Primary, 2 x 25 V AC Secondary, 225 VA Power, Model 92429-P2S2

Nuvotem Talema 92429-P2S2 Toroidal Transformer is designed for electronic and industrial power supply applications. It features a 230 V AC primary voltage with twin 25 V AC secondary windings, providing two separate 25 V outputs for varied circuit designs. The transformer is rated for 225 VA power, ensuring suitability for moderate loads.

This transformer employs an open style toroid center construction, which significantly reduces radiated magnetic fields, thereby minimizing noise and interference in sensitive electronic equipment. Its compact size with a diameter of 112 mm and height of 47 mm allows installation in limited spaces.

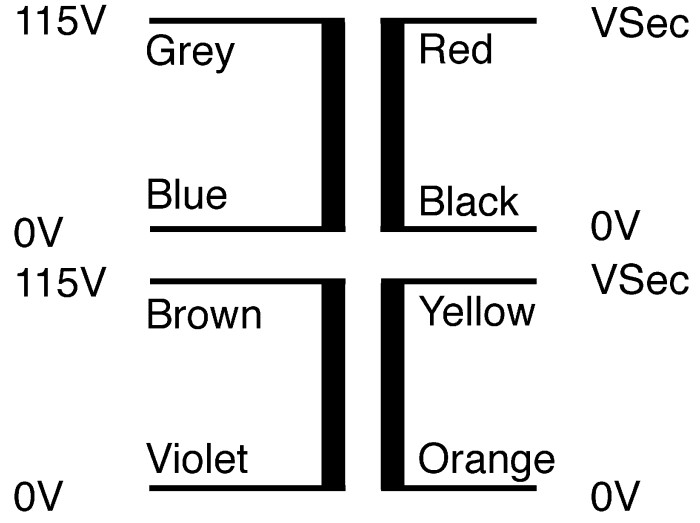

Operating frequency ranges from 50 Hz to a maximum of 60 Hz, with a maximum permissible operating temperature of 40°C, guaranteeing stable operation within typical industrial environments. It uses a single primary winding and twin secondary windings that can be connected in series, parallel, or independently, enhancing flexibility for diverse electrical configurations.

Additional features include double insulated primary leads and termination by leads, making assembly and connection straightforward. The unit adheres to RoHS compliance, underscoring its environmental standards and safety.

Supplied inclusive of a full mounting kit, this Toroidal Transformer is electrically 100% tested including flash tests to assure quality and reliability. It complies with international standards such as EN61558, EN60950, EN60065, VDE 0551, VDE 0550 and BS415, with UL506 and EN61558 approvals certified.

Primary voltage: 230 V AC. Secondary voltage: 2 x 25 V AC. Power rating: 225 VA. Open toroid center design. Compact dimensions: 112 mm diameter, 47 mm height. RoHS compliant. Includes mounting kit and lead termination. Standards body approvals including UL and EN.

This transformer is ideal for industrial, laboratory, power supply, and electronic equipment manufacturing applications, providing efficient and low-noise power conversion. Explore more transformers and electrical components at EnvMart for your technical needs.
