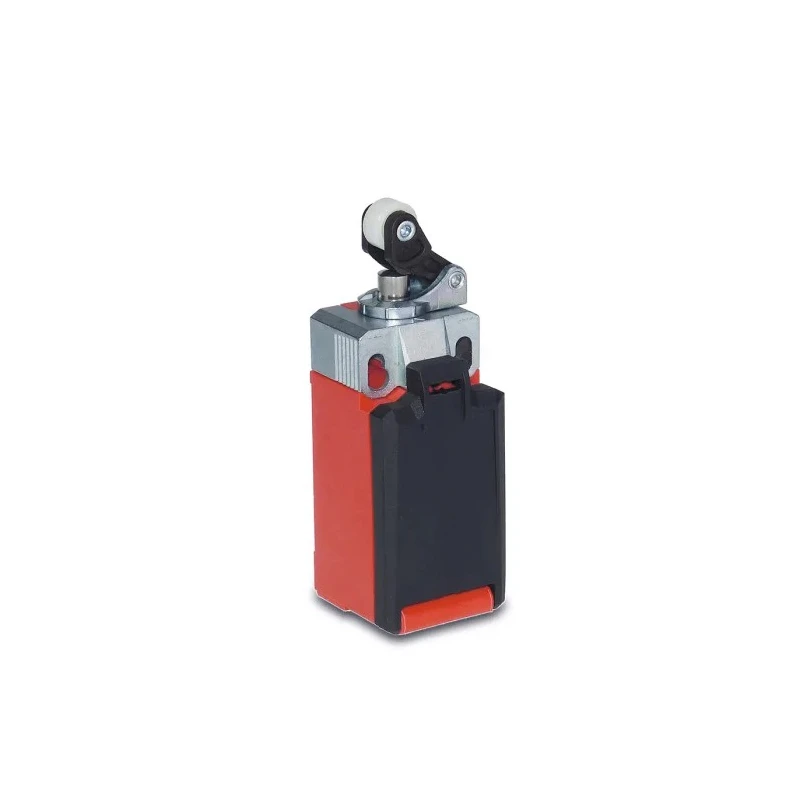

Bernstein AG Roller Lever Limit Switch, 1 NO/1 NC Contact Configuration, IP67 IP66, Fibreglass Reinforced 6083000221
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | Bernstein AG |
| Length | 31mm |
| Depth | 30.3mm |
| IP Rating | IP67, IP66 |
| Width | 90mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | IN65 |
| Maximum Operating Temperature | 75°C |
| Mounting Orientation | Screw |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Roller Lever |
| Contact Type | Slow Action |
| Minimum Operating Temperature | -30°C |
| Switching Current | 5A |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 10N |
| Mechanical Life | 10000000Cycles |
| Switching DC Voltage | 24V dc |
| Switching AC Voltage | 240V ac |
| Conduit Entry | M20 |
| Mechanical Service Life | up to 30 million switching cycles |
Key Features
- Robust fibreglass reinforced thermoplastic housing for durability.
- Rated for electrical switching currents up to 5A.
- Suitable for switching voltages of 24V DC and 240V AC.
- Mechanical service life up to 30 million cycles for long-term reliability.
- Operating temperature range from -30°C to 75°C for harsh environments.
- Mounting with screw orientation and M20 conduit entry.
- Includes metal actuator locking and mounting clip for added robustness.
- Adjustable lever with rotatable and repositionable actuator elements.
Product Description
Bernstein AG presents the 6083000221 Roller Lever Limit Switch from the IN65 series, designed for reliable position monitoring and safety applications across diverse industrial environments. The limit switch features a robust fibreglass reinforced thermoplastic housing rated for IP67 and IP66, offering excellent protection against dust and water ingress.
The switch is equipped with 1 normally open (NO) and 1 normally closed (NC) slow action contacts, supporting electrical switching currents up to 5 amperes. It is capable of handling switching voltages of 24 V DC and 240 V AC, making it versatile for various control circuits.
With a mechanical life rated for up to 30 million switching cycles, this switch ensures durable and dependable operation under continuous industrial use. It operates efficiently within a wide temperature range of -30°C to 75°C, adapting to harsh and varying workplace conditions.
The modular IN65 design includes metal actuator locking and a mounting clip that enhances the product's robustness. Its actuator lever is adjustable and rotatable, allowing for flexible installation and calibration to meet specific operational requirements. The screw mounting orientation combined with an M20 conduit entry facilitates secure and straightforward installation.
Bernstein AG's commitment to compliance is evident in this product's RoHS certification, ensuring it meets environmental and health safety standards. Manufactured in Hungary, the switch reflects high European production quality and engineering standards.
Durable fibreglass reinforced thermoplastic housing rated IP67, IP66. 1 NO/1 NC slow action contact configuration with 5A switching current. Electrical switching capacity of 24V DC and 240V AC. Long mechanical service life up to 30 million cycles.
Wide operating temperature range of -30°C to 75°C. Metal actuator locking and mounting clip for robustness. Adjustable and rotatable actuator lever for customized operation. Screw mounting with M20 conduit entry for easy installation.
RoHS compliant ensuring environmental safety. Manufactured in Hungary reflecting premium quality.
This limit switch is ideally suited for a wide range of industrial automation, electrical, manufacturing, and safety monitoring applications. Its sturdy design and flexible actuator options allow integration into complex control systems, contributing to enhanced operational safety and efficiency.
Explore more from Bernstein AG and related Limit Switch solutions in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a contact configuration of 1 normally open (NO) and 1 normally closed (NC) slow action contact.
The maximum switching current is rated at 5 amperes.
It supports switching voltages of 24V DC and 240V AC.
The mechanical service life is rated for up to 30 million switching cycles.
The operating temperature range is from -30°C to 75°C.
The housing is made from fibreglass reinforced thermoplastic, providing durability.
It is mounted using a screw orientation and includes an M20 conduit entry for installation.
This model uses a roller lever actuator that is adjustable and rotatable.
The dimensions are 90mm in width, 31mm in length, and 30.3mm in depth.
Yes, it is RoHS compliant, ensuring it meets environmental and health safety standards.
It is manufactured in Hungary, reflecting high European production quality.
The operating force required is 10N.
