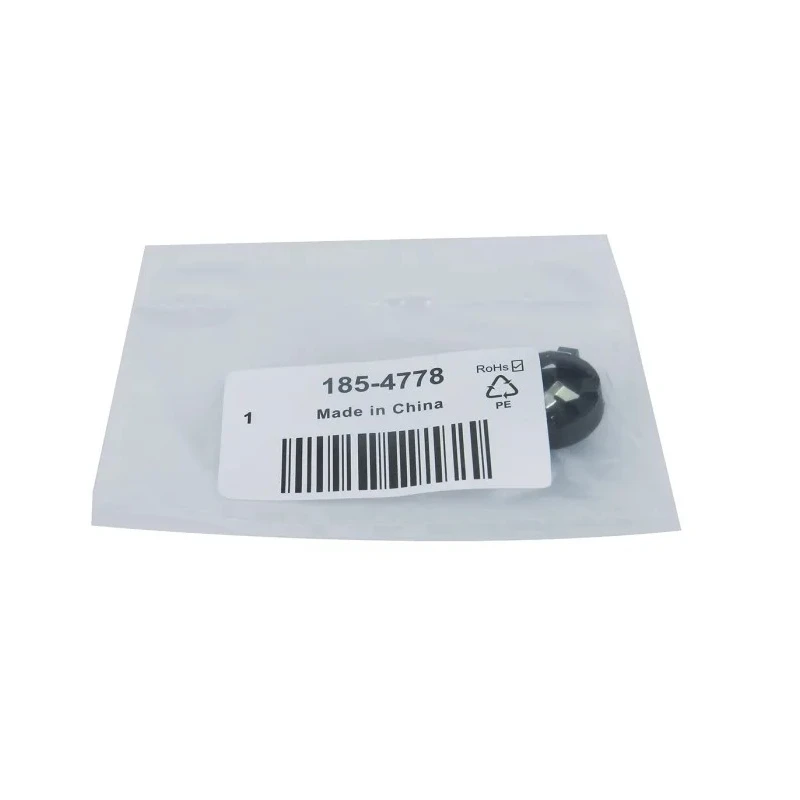

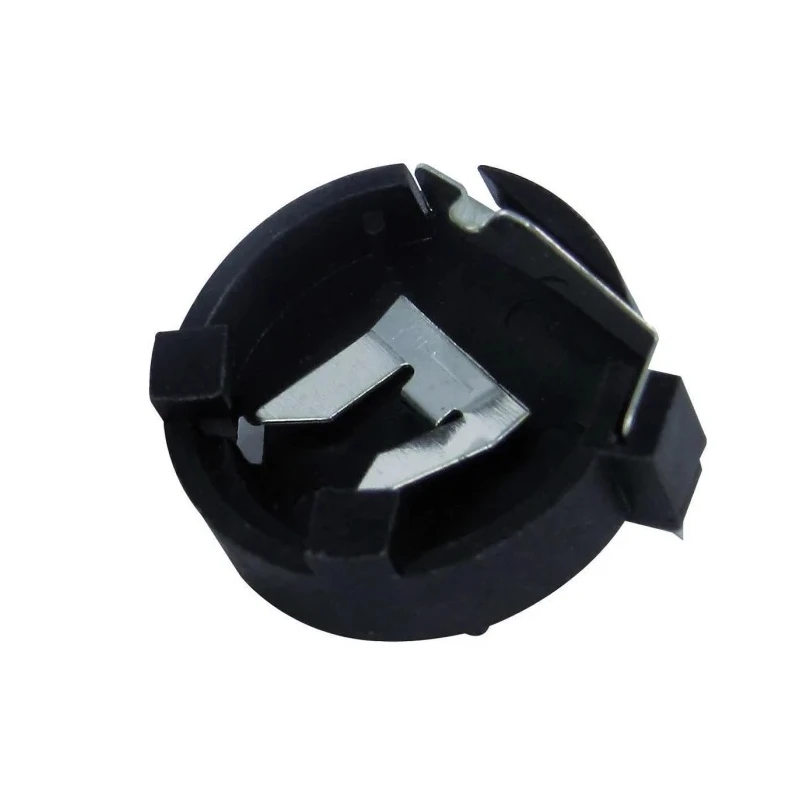

RS PRO Battery Holder Compatible with Battery Surface Mount PCB Mount Type Polybutylene Terephthalate Body Material CR1220
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 12.5mm |
| Brand | RS PRO |
| Material | PBT +30% glass filled |
| Body Material | Polybutylene Terephthalate |
| Height | 5.4mm |
| Humidity | 40°C |
| Model | CR1220 |
| Width | 15mm |
| Mount Type | PCB |
| Series | RS PRO |
| Number of Cells | 1 |
| Termination Type | Surface Mount |
| Insulation resistance | 500megaohms |
| Sub Type | Battery Holder |
| Compatible Battery Size | CR1220 |
| Contact Resistance | 30milliohms maximum |
Key Features
- Compatible with CR1220 size battery for single cell applications.
- Constructed with durable polybutylene terephthalate (PBT) with 30% glass fill.
- Features surface mount termination type for easy PCB integration.
- Electrical ratings include 500V AC/DC voltage and 2A current capacity.
- Operating temperature range from -55°C to 85°C ensures wide environmental tolerance.
- Tin plated phosphor bronze contacts provide low resistance and high reliability.
- Insulation resistance rated at 500 megaohms and contact resistance max 30 milliohms.
- Compact form factor with dimensions 15mm width x 12.5mm diameter x 5.4mm height.
Product Description
The RS PRO CR1220 Battery Holder is engineered for secure and efficient battery retention of CR1220 cells, optimized for surface mount PCB applications. This battery holder features a robust polybutylene terephthalate (PBT) body material filled with 30% glass to enhance mechanical strength and thermal stability.
Electrical performance supports a voltage rating of 500V AC/DC and current capacity up to 2A, suitable for diverse electronic circuits and power supply devices. The phosphor bronze contacts are tin plated over nickel with a 0.2mm thickness to maintain low contact resistance, ensuring reliable electrical conductivity.
Designed for industrial and commercial electronic applications, it withstands operating temperatures from -55°C to 85°C, making it versatile for use in various environmental conditions including automotive, instrumentation, and consumer electronics.
The insulation resistance stands at 500 megaohms, with contact resistance maintained under 30 milliohms, confirming electrical isolation and minimal power loss. Dimensional compactness with a width of 15mm, diameter of 12.5mm, and height of 5.4mm facilitates integration into dense PCB layouts.
This product complies with RoHS standards and meets UL 94V0 flammability ratings, ensuring safety and environmental adherence. It is manufactured in China under the RS PRO series brand, assuring quality and consistent performance.
Compatible with CR1220 size single cell battery. Polybutylene terephthalate body material with 30% glass filled reinforcement. Surface mount termination suitable for PCB mounting. Voltage rating of 500V AC/DC and current rating of 2A.
Operating temperature range from -55°C to 85°C. Tin plated phosphor bronze contacts ensure reliable conductivity. Insulation resistance of 500 megaohms and contact resistance max 30 milliohms. Dimensions: Width 15mm, Diameter 12.5mm, Height 5.4mm.
RoHS compliant and UL 94V0 flammability certified.
This RS PRO battery holder is ideal for applications in industrial electronics, power supply systems, instrumentation, laboratory equipment, and consumer device manufacturing. Browse RS PRO Battery Holders and compatible accessories on EnvMart for reliable and certified power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a voltage rating of 500V AC/DC and a current capacity of 2A.
The operating temperature range is from -55°C to 85°C, allowing it to function in various environmental conditions.
The body material is polybutylene terephthalate (PBT) reinforced with 30% glass fill for enhanced mechanical strength and thermal stability.
The dimensions are 15mm in width, 12.5mm in diameter, and 5.4mm in height.
It features a surface mount termination type, making it suitable for easy integration onto printed circuit boards (PCBs).
This holder is compatible with CR1220 size batteries for single cell applications.
The insulation resistance is rated at 500 megaohms, ensuring effective electrical isolation.
The maximum contact resistance is 30 milliohms, which helps maintain reliable electrical conductivity.
Yes, it is RoHS compliant and meets UL 94V0 flammability ratings, ensuring safety and environmental adherence.
It is designed for use in industrial electronics, power supply systems, instrumentation, and consumer device manufacturing.
It is manufactured in China under the RS PRO series brand.
It uses tin plated phosphor bronze contacts, which provide low resistance and high reliability.
