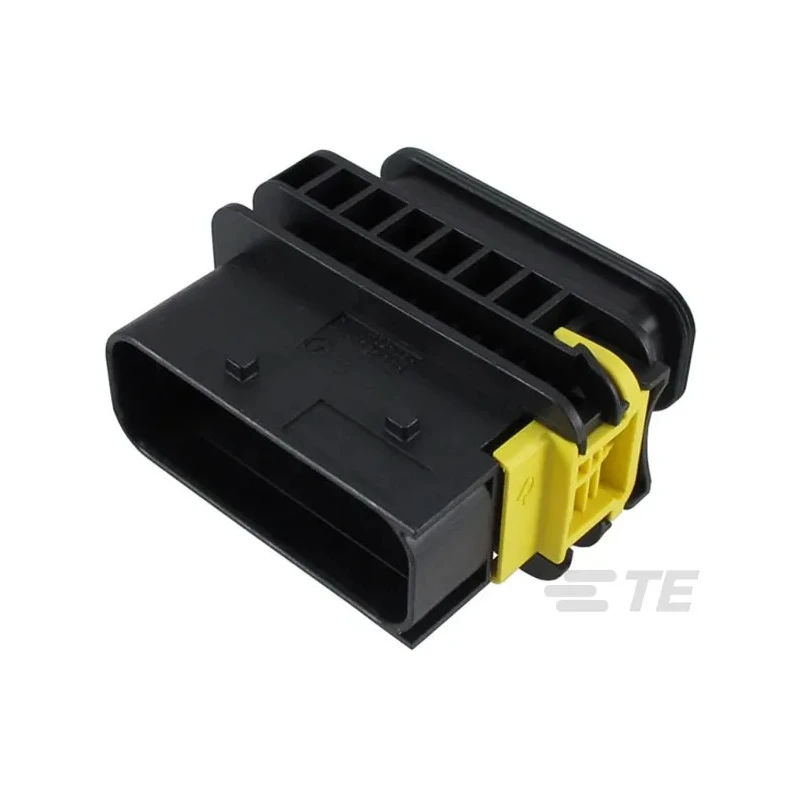

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1

Name: TE Connectivity HDSCS Automotive Connector Female Black Plug-in 16 Way Crimp Termination 1-1564528-1
Brand: TE Connectivity
SKU: 319485
Price: 5.74 USD
Availability: InStock



Category Automotive Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Black
Current	20, 40A
Height	27mm
Depth	47.1mm
IP Rating	IP67, IP6K9K
Width	52.6mm
Gender	Female
Mount Type	Plug-in
Housing Material	Fibreglass Reinforced Polybutylene Terephthalate
Series	HDSCS
Termination Type	Crimp
Maximum Operating Temperature	140°C
Sub Type	Tab Housing
Minimum Operating Temperature	-40°C
Number of Rows	2
Standards/Approvals	EU RoHS, EU ELV
Contact Plating	Tin
Number of Contacts	16

Key Features

Designed for robust automotive electrical connections and plug-in mounting.
Offers a current rating of 20 to 40 amps for reliable power transmission.
Constructed from fibreglass reinforced polybutylene terephthalate for durability.
Features tin-plated contacts to ensure corrosion resistance and conductivity.
Rated IP67 and IP6K9K for environmental sealing and protection against dust and water.
Operates reliably in temperatures from -40°C to 140°C.
Compact dimensions measuring 52.6mm width, 27mm height, and 47.1mm depth.
Includes a slide lock mechanism for secure mating and easy assembly.

Product Description

TE Connectivity 1-1564528-1 HDSCS Automotive Connector Female is a heavy-duty, environmentally sealed connector designed for automotive electrical systems. Its black plug-in housing supports 16-way crimp termination, providing reliable and high-current electrical connections up to 40 amps. The housing material of fibreglass reinforced polybutylene terephthalate ensures mechanical strength and chemical resistance suitable for harsh automotive environments.

This connector features tin-plated contacts that enhance corrosion resistance and electrical conductivity. It is designed for plug-in mounting and includes a secure slide lock mechanism to prevent accidental disconnection during operation.

The TE HDSCS connector is rated to IP67 and IP6K9K ingress protection standards, guaranteeing protection against dust ingress and high-pressure water jets, making it ideal for exposed automotive and industrial environments. It performs reliably across a wide temperature range from -40°C to 140°C, supporting robust operation under extreme conditions.

Measuring 52.6mm in width, 27mm in height, and 47.1mm in depth, the connector offers a compact form factor suitable for space-constrained applications. It accepts AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts, allowing flexible integration with various cable types and device terminations.

This automotive connector is perfectly suited for cable-to-cable and cable-to-device connections in automotive, industrial, and electrical applications that require dependable performance and environmental sealing.

Designed for robust automotive electrical connections and plug-in mounting. Offers a current rating of 20 to 40 amps for reliable power transmission. Constructed from fibreglass reinforced polybutylene terephthalate for durability.

Features tin-plated contacts to ensure corrosion resistance and conductivity. Rated IP67 and IP6K9K for environmental sealing and protection against dust and water. Operates reliably in temperatures from -40°C to 140°C. Compact dimensions measuring 52.6mm width, 27mm height, and 47.1mm depth.

Includes a slide lock mechanism for secure mating and easy assembly. Compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts. Suitable for cable-to-cable and cable-to-device automotive applications. Explore more Automotive Connectors and electrical components at EnvMart for your industrial, automotive, and electronic design needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The connector has a current rating of 20 to 40 amps, allowing for reliable power transmission in automotive applications.

It measures 52.6mm in width, 27mm in height, and 47.1mm in depth, making it suitable for space-constrained applications.

This model operates reliably in temperatures ranging from -40°C to 140°C, making it suitable for extreme conditions.

The housing is made from fibreglass reinforced polybutylene terephthalate, which provides mechanical strength and chemical resistance.

It features a crimp termination type, which allows for secure and reliable electrical connections.

Yes, it is rated IP67 and IP6K9K, providing protection against dust ingress and high-pressure water jets.

It accepts AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts, allowing for flexible integration with various cable types.

Yes, it includes a slide lock mechanism to ensure secure mating and prevent accidental disconnection during operation.

This connector is female, designed for plug-in mounting in automotive electrical systems.

It complies with EU RoHS and EU ELV standards, ensuring it meets environmental regulations.

The connector is manufactured in India, contributing to its global availability.

It is designed for cable-to-cable and cable-to-device connections in automotive, industrial, and electrical applications that require dependable performance.
