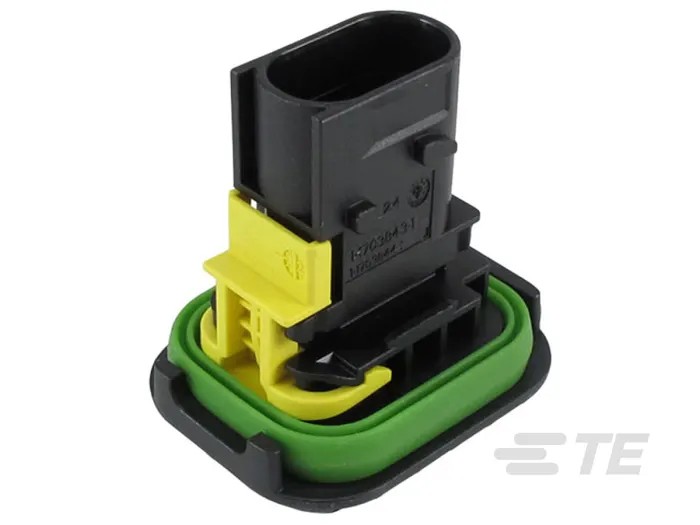

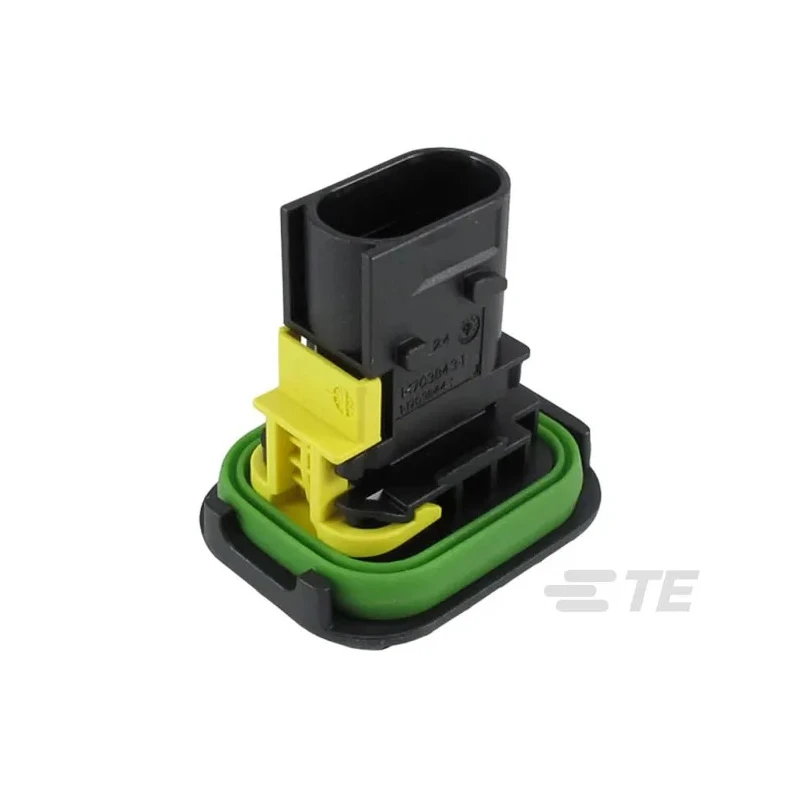

TE Connectivity HDSCS Automotive Connector Female Black Flange 3 Way Crimp Termination 1-1703843-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 20A |
| Height | 19mm |
| Depth | 47.1mm |
| IP Rating | IP67, IP6K9K |
| Width | 27.6mm |
| Gender | Female |
| Mount Type | Flange |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | HDSCS |
| Termination Type | Crimp |
| Maximum Operating Temperature | 140°C |
| Sub Type | Tab Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Contact Plating | Tin |
| Number of Contacts | 3 |
Key Features
- Features a fiberglass reinforced polybutylene terephthalate housing for durability.
- Rated for a current of 20 amperes with tin-plated contacts.
- Offers environmental sealing with IP67 and IP6K9K protection ratings.
- Operates reliably between -40°C and 140°C temperature range.
- Compact dimensions with 19mm height, 27.6mm width, and 47.1mm depth.
- Equipped with a slide lock for secure mating in harsh automotive environments.
- Designed for cable-to-cable and cable-to-device applications.
- Compatible with AMP MCP 6.3/4.8K, 2.8, and 1.5K contacts carrying up to 40 amps.
Product Description
TE Connectivity 1-1703843-1 is a high-performance HDSCS automotive female connector designed for demanding automotive and industrial electrical applications. This connector features a black flange mount housing made from fiberglass reinforced polybutylene terephthalate, ensuring excellent mechanical strength and chemical resistance.
The connector provides a secure crimp termination with 3 contacts arranged in a single row, delivering a robust current rating of 20 amperes. Its tin-plated contacts enhance corrosion resistance, making it reliable for long-term use. The housing is engineered to meet stringent environmental standards with IP67 and IP6K9K ingress protection, shielding against dust and water ingress even in harsh conditions.
Operating temperature ranges from -40°C to 140°C, supporting usage in extreme automotive climates. The connector's dimensions are compact, measuring 19mm in height, 27.6mm in width, and 47.1mm in depth, facilitating easy integration into automotive wiring systems. The flange mount type and slide lock mechanism ensure stable mechanical retention and ease of mating, suitable for cable-to-cable or cable-to-device connections.
This connector series supports AMP MCP contact systems (6.3/4.8K, 2.8, and 1.5K), designed for electrical systems carrying currents up to 40 amps. It is ideal for automotive electrical connectors, industrial machinery, and manufacturing facilities requiring dependable connection solutions.
Fiberglass reinforced polybutylene terephthalate housing offers mechanical and chemical durability. Three-contact configuration suitable for medium current automotive circuits. Tin plating on contacts enhances conductivity and corrosion resistance.
High IP67 and IP6K9K rating ensures protection against water and dust ingress. Wide operating temperature range from -40°C to 140°C for versatility. Flange mount with slide lock for secure and stable connection. Compatible with AMP MCP contact systems for various current capacities.
Compact size allows integration into diverse automotive applications.
Choose TE Connectivity HDSCS Automotive Connector 1-1703843-1 for reliable, industry-grade electrical connections engineered to withstand challenging automotive environments. Suitable across industrial, manufacturing, automotive, and electrical sectors. Browse the EnvMart catalog for more connectivity solutions from TE Connectivity and related brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 20 amperes, making it suitable for medium current automotive circuits.
The connector measures 19mm in height, 27.6mm in width, and 47.1mm in depth, allowing for compact integration into automotive wiring systems.
It features a crimp termination type, which provides a secure connection for the contacts.
The connector operates reliably within a temperature range of -40°C to 140°C, suitable for extreme automotive climates.
The housing is made from fiberglass reinforced polybutylene terephthalate, offering mechanical strength and chemical resistance.
It has an IP67 and IP6K9K rating, providing protection against dust and water ingress.
This model is designed with 3 contacts arranged in a single row, suitable for various electrical applications.
It is designed for cable-to-cable and cable-to-device applications in automotive and industrial electrical systems.
It is equipped with a slide lock mechanism that ensures secure mating and stable mechanical retention in harsh environments.
Yes, it is compatible with AMP MCP contact systems, including 6.3/4.8K, 2.8, and 1.5K contacts.
The housing of this connector is black, which is typical for many automotive connectors.
The connector is manufactured in India, ensuring compliance with regional manufacturing standards.
