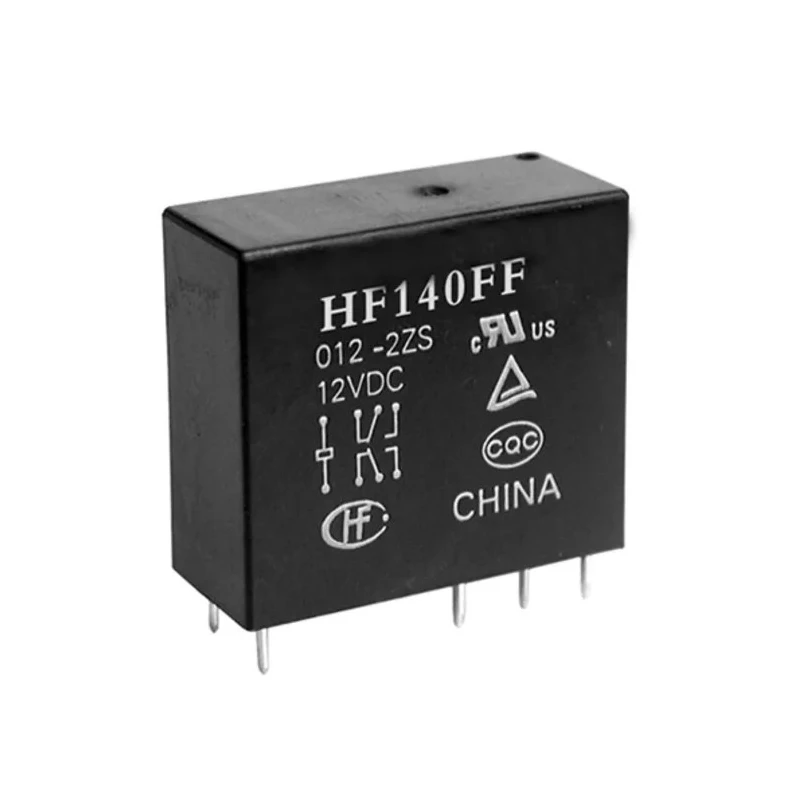

Hongfa Europe GMBH PCB Power Relay 12V DC Coil 10A Switching Current DPST HF140FF/012-2HTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.3mm |
| Length | 29mm |
| Model | HF140FF/012-2HTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF140FF |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 275Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Compact and reliable power relay suitable for PCB mounting.
- Coil voltage rated at 12V DC with a coil resistance of 275 ohms.
- Switching currents up to 10A, accommodating DC voltage up to 30V and AC voltage up to 250V.
- Contact material made of silver alloy ensuring low contact resistance of 50 milliohms.
- Operating temperature range from -40°C to 85°C for diverse environments.
- Coil power consumption is low at 530 mW, ensuring efficient operation.
- Isolation voltage between coil and contact is 5 kVAC for safety and reliability.
- Flux proofed design improves longevity under typical PCB environmental conditions.
Product Description
Hongfa Europe GMBH HF140FF/012-2HTF PCB Power Relay is a miniature, non-latching electromagnetic relay designed for intermediate power applications and PCB mounting. It features a 12V DC coil and is capable of switching currents up to 10A with a dual-pole single-throw (DPST) contact configuration.
This relay supports switching DC voltages up to 30V and AC voltages up to 250V, with a switching power rating of 2.5 kVA. Its silver alloy contacts provide low contact resistance of 50 milliohms, ensuring effective electrical conductivity.
The relay is suitable for operation in wide temperature ranges from -40°C to 85°C, making it reliable in various industrial and automotive environments. The coil resistance is 275 ohms with a low coil power consumption of 530 mW, enhancing energy efficiency.
The design incorporates flux proofing which contributes to operational longevity on PCB assemblies. The relay offers isolation voltage between coil and contacts up to 5 kVAC, ensuring electrical safety and robustness.
Produced to meet RoHS compliance, this power relay is environmentally friendly. It is widely used as a control device in industrial, automotive, automation, and electrical signal conditioning applications.
Compact configuration suitable for PCB mount installations. High switching capability with a 10A current rating. Wide operational temperature range enhances usage versatility. Silver alloy contacts reduce electrical resistance for optimal performance.
Low coil power consumption promotes energy efficiency. Ensures electrical isolation and safety with 5 kVAC coil-contact insulation. Flux proofed for improved durability in PCB environments. RoHS compliant for environmental safety.
Applicable across industrial, automotive, and signal control uses. Reliable 12V DC coil voltage for consistent operation. Equip your designs with a dependable Hongfa Europe GMBH power relay. Explore EnvMart's extensive catalogue for more electronic components and Power Relay options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage rating for this model is 12V DC.
It can handle a maximum switching current of 10A.
The dimensions are 29mm in length, 13mm in width, and 26.3mm in height.
This relay features a dual-pole single-throw (DPST) contact configuration.
It can switch DC voltages up to 30V and AC voltages up to 250V.
The coil resistance is 275 ohms.
The contact material is made of silver alloy, which ensures low contact resistance.
The coil power consumption is low at 530 mW.
The operating temperature range is from -40°C to 85°C.
The isolation voltage between the coil and contact is 5 kVAC.
Yes, this relay is RoHS compliant, making it environmentally friendly.
This model is designed for PCB mounting.
