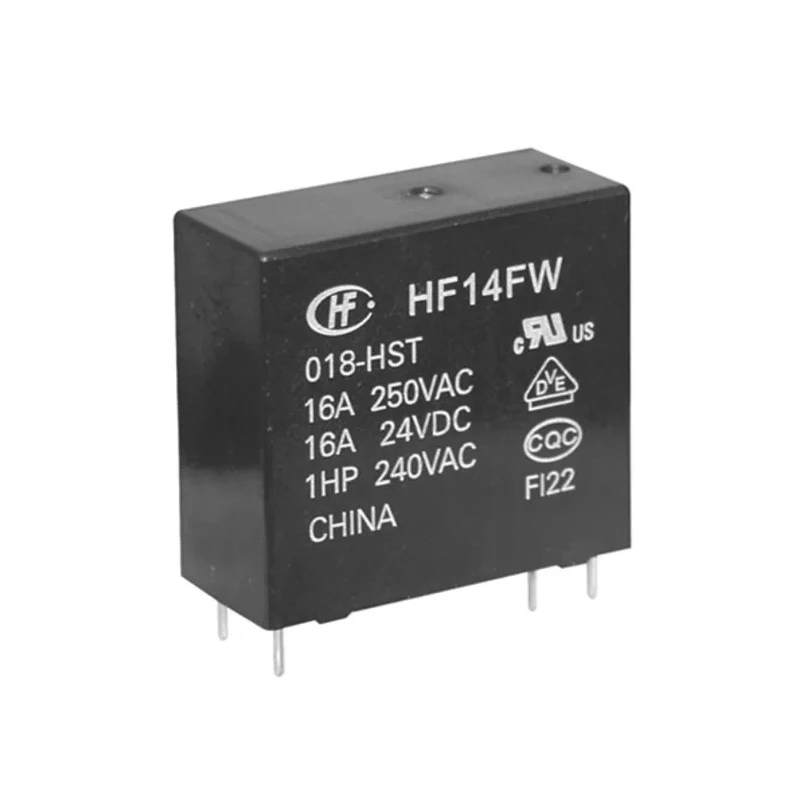

Hongfa Europe GMBH PCB Power Relay 24V dc Coil 20A Switching Current SPDT HF14FW/024-ZPTF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 26.5mm |
| Length | 29mm |
| Model | HF14FW/024-ZPTF |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | HF14FW |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 20A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 820Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 277V |
| Coil Power | 720mW |
Key Features
- Designed for PCB mounting with PCB pin terminals.
- Supports high switching power of 5.5 kVA for AC loads.
- Operates reliably from -40°C to 85°C ambient temperature range.
- Silver alloy contacts provide low contact resistance and durability.
- Coil resistance is 820 ohms, with coil power consumption at 720 mW.
- Meets RoHS standards and environmentally friendly compliance.
- Suitable for industrial and automotive control applications.
Product Description
Hongfa Europe GMBH HF14FW/024-ZPTF is a PCB mount power relay featuring a 24V dc coil voltage and a 20A switching current with SPDT (1 Form C) contact configuration. This SPDT non-latching electromagnetic relay provides reliable control suitable for intermediate power categories.
The relay supports switching power up to 5.5 kVA AC and is capable of switching 30V DC and 277V AC voltages. It is designed with silver alloy contacts that ensure low contact resistance of 50 mΩ for enhanced conductivity and longevity.
The coil resistance is 820 Ω, delivering a coil power of 720 mW, optimized for efficient operation. It is housed in a compact form factor measuring 29mm in length, 26.5mm in height, and 13mm in width, making it suitable for dense PCB layouts. Mounting is via PCB pin terminals.
Operating temperature ranges from -40°C to 85°C, allowing use in diverse industrial and automotive environments. The relay meets RoHS environmental standards, ensuring compliance with modern regulatory requirements.
Typical applications include use as control devices in industrial automation systems, automotive electronics, and other electrical control circuits requiring precise switching capabilities and high current handling.
This relay is flux proofed with an isolation voltage between coil and contacts rated at 4 KV AC, ensuring durability and safety in demanding environments. Designed for PCB mounting with PCB pin terminals. Supports high switching power of 5.5 kVA for AC loads.
Operates reliably from -40°C to 85°C ambient temperature range. Silver alloy contacts provide low contact resistance and durability. Coil resistance is 820 ohms, with coil power consumption at 720 mW. Compact and space-saving dimensions.
Meets RoHS directives for environmental safety. Suitable for industrial and automotive control applications. Explore more Power Relays and related electrical components on EnvMart for your automation and control system needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hongfa Europe GMBH HF14FW/024-ZPTF power relay has a switching current capacity of 20A.
This relay operates with a coil voltage of 24V DC.
The dimensions of the relay are 29mm in length, 26.5mm in height, and 13mm in width.
It supports a maximum switching power of 5.5 kVA for AC loads.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The relay operates reliably within an ambient temperature range of -40°C to 85°C.
It is designed with silver alloy contacts, which provide low contact resistance and durability.
The coil resistance is 820 ohms, with a coil power consumption of 720 mW.
Yes, it meets RoHS standards for environmental compliance.
This model is designed for PCB mounting and uses PCB pin terminals for installation.
It is capable of switching 30V DC and 277V AC voltages.
This relay is suitable for industrial and automotive control applications, particularly in electrical control circuits requiring precise switching capabilities.
