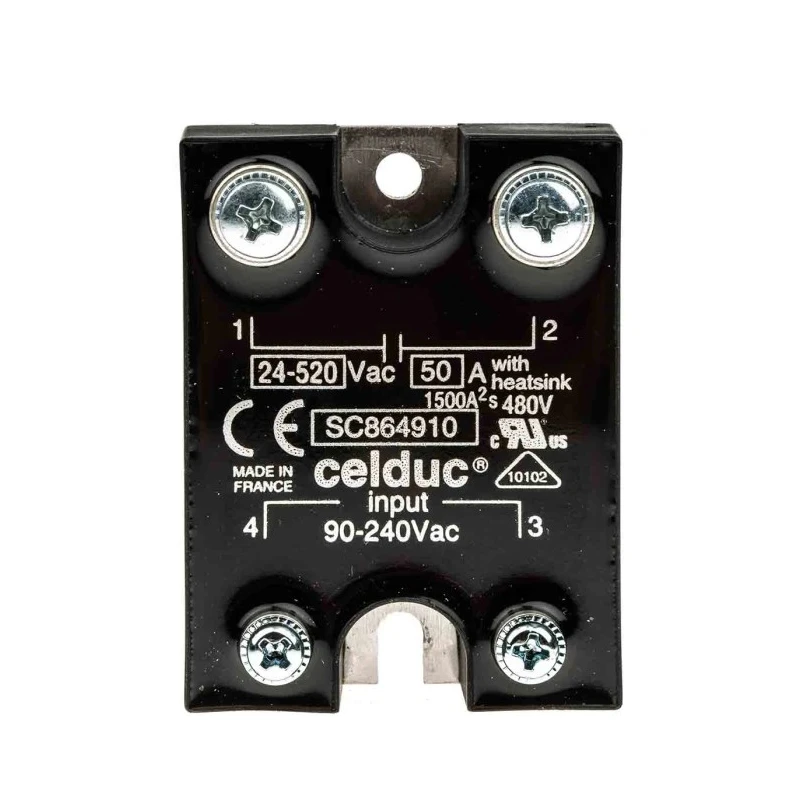

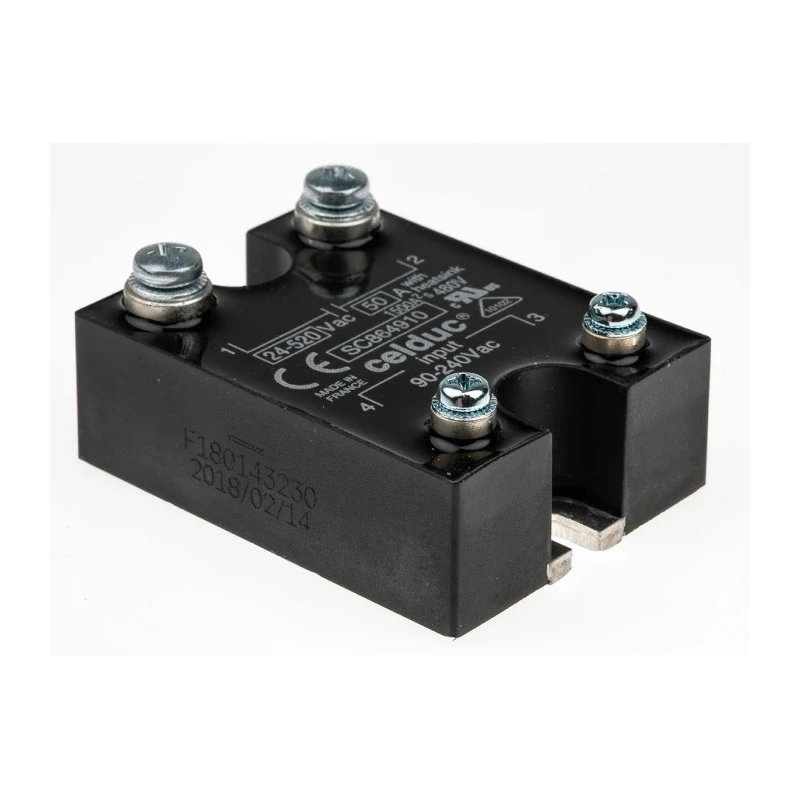

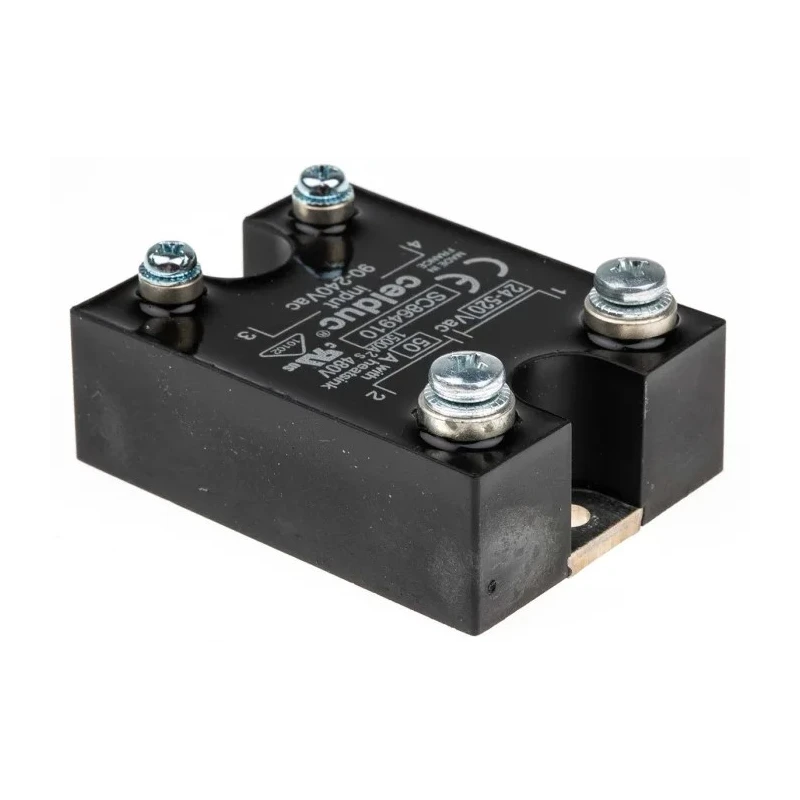

Celduc SC8 Series Solid State Relay, Panel Mount, 50 A Load, 520 Vrms Load, 240V AC Control SC864910

Celduc SC864910 is a high-performance solid state relay from the SC8 Series, optimized for panel mount installations. It supports a robust maximum load current of 50 A and can handle load voltages up to 520 Vrms. The control voltage ranges from 90 V AC/DC minimum to a maximum of 240 V AC, enabling compatibility with various control systems.

This relay employs zero cross switching technology, which ensures switching occurs at zero voltage crossings, minimizing electrical noise and enhancing the reliability and lifespan of connected equipment. Its single-phase synchronous design and triac output type make it well-suited for controlling resistive and inductive loads such as heating elements, furnaces, presses, extruders, motor controls, solenoids, and brakes.

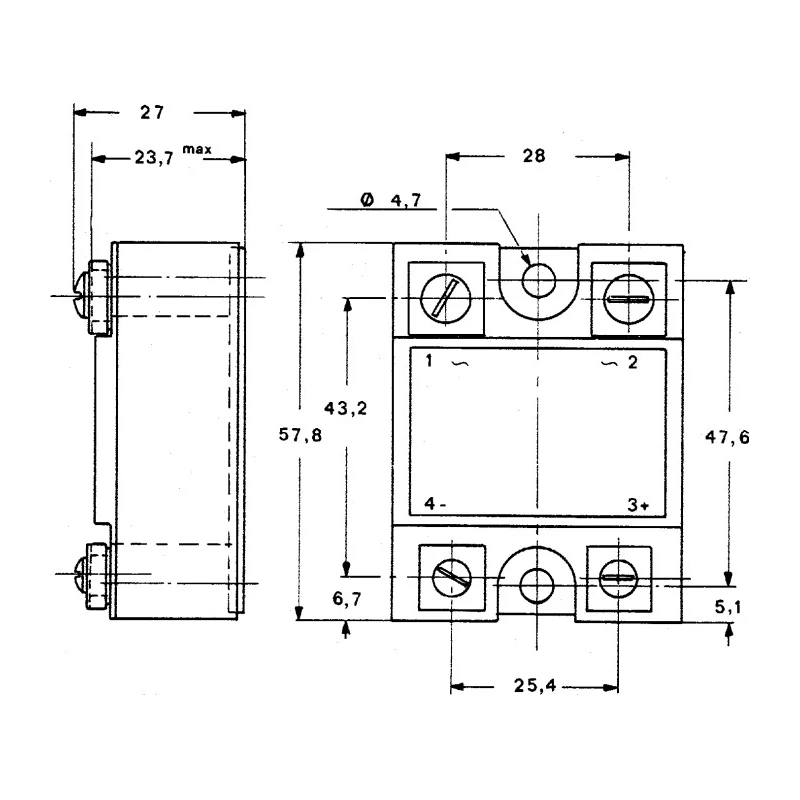

The device features screw terminal connections that facilitate secure and easy wiring. With dimensions of 58.2 mm in length, 44.5 mm width, and 27 mm height, this relay is compact and ideal for panel mounting. The operating temperature range from -40°C to 100°C allows its use in varied industrial conditions. It holds UR standards approval ensuring compliance with safety and quality requirements.

Its IP20 rating protects against solid foreign objects greater than 12 mm but does not provide protection against liquids, making it suitable for controlled indoor environments. The off-state leakage current is low at 3 mA, aiding energy efficiency during standby conditions.

Designed and manufactured in France, the Celduc SC864910 solid state relay combines durability, efficiency, and precision control for industrial and automation applications such as heating control, motor operation, and home automation systems.

Supports maximum load current of 50 amperes for heavy-duty applications. Panel mount design with screw terminal type for secure installation. Zero cross switching function reduces electrical noise and extends relay lifespan.

Wide operating temperature range from -40°C to 100°C suits various industrial environments. Compact dimensions: 58.2 mm length, 44.5 mm width, and 27 mm height enable space-saving setups. Screw terminals provide reliable electrical connections with ease of cabling.

Triac output type suitable for single-phase synchronous AC load switching. IP20 rated enclosure offers basic protection against solid objects and fingers. Low off-state leakage current of 3 mA minimizes standby power consumption.

Designed and manufactured in France ensuring quality and compliance. Explore more Solid State Relay products to enhance your electrical and automation systems at EnvMart.
