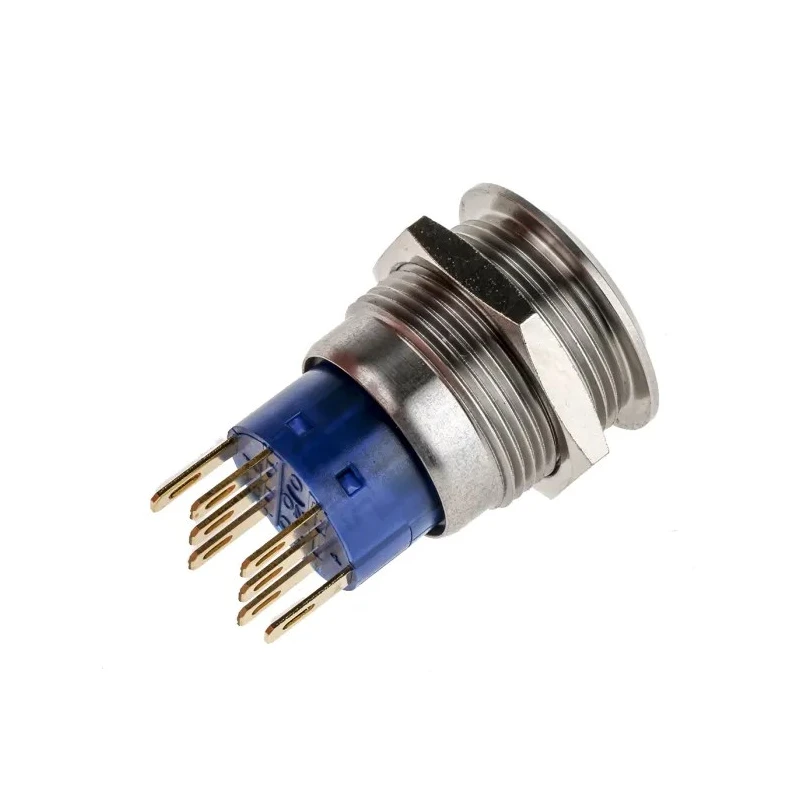

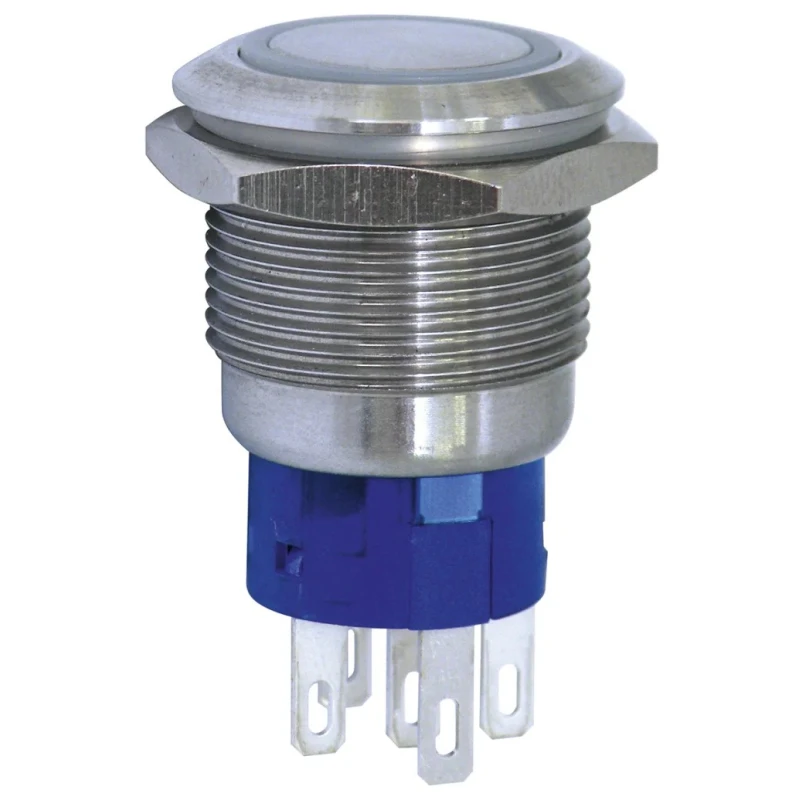

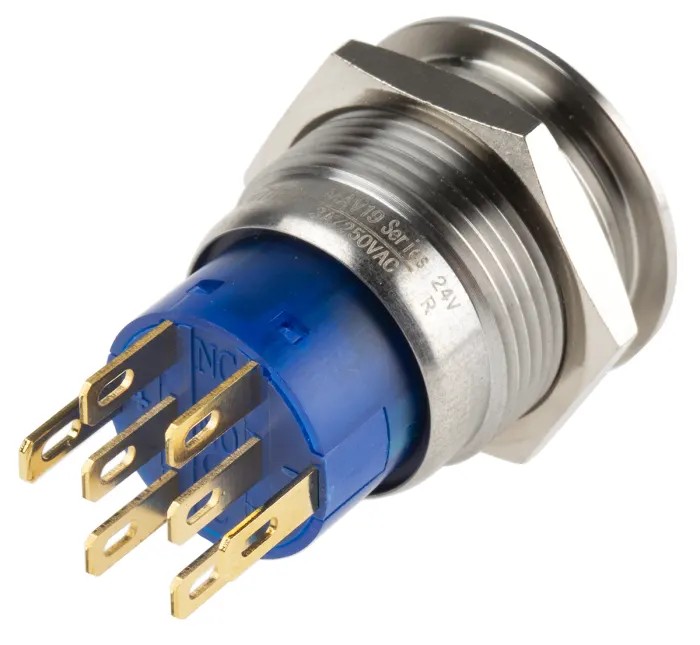

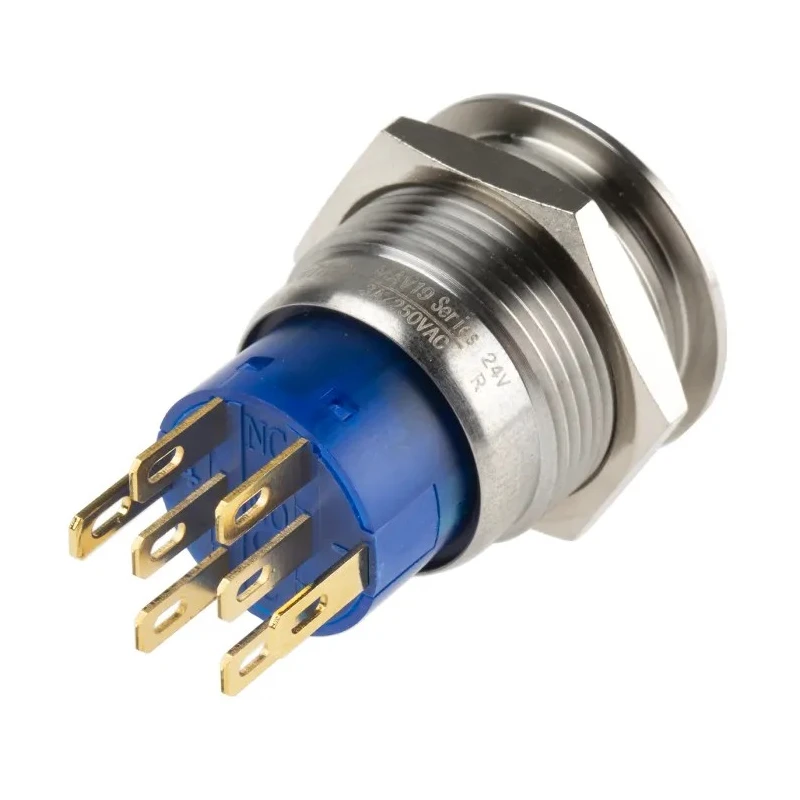

KNITTER-SWITCH Illuminated Vandal Proof Momentary Panel Push Button Switch DPDT Red LED IP67 250V MAV19A0F20E-324-JR
Specifications
| Country of Origin | China |
|---|---|
| Brand | KNITTER-SWITCH |
| Model | MAV19A0F20E-324-JR |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | MAV |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -20°C |
| Terminal type | Solder Lug |
| Standards/Approvals | CSA, UL |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Contact DC Voltage | 250V |
| Actuator Style | Round |
| Switch Contact Current | 3A |
| Contact AC Voltage | 250V ac |
| LED Voltage | 24 V, ca. 12 mA |
Key Features
- The switch features a stainless steel silver actuator with round style for durability.
- It operates momentarily with DPDT on-off switch configuration rated at 250V AC and DC contact voltages.
- The red LED illumination utilizes 24 V at approximately 12 mA for clear visual indication.
- Constructed with solder lug terminals and gold flash over silver solder tab surface for reliable connectivity.
- The device offers IP67 ingress protection, making it suitable for harsh environments.
- It supports a contact current rating of 3A and operates safely within a temperature range from -20°C to 120°C.
- Panel mount type with an M19x1 bushing size ensures secure installation.
- The switch complies with CSA and UL standards for industrial safety and quality assurance.
Product Description
KNITTER-SWITCH MAV19A0F20E-324-JR is an illuminated vandal proof Push Button Switch designed for momentary operation with a panel mount configuration and double pole double throw (DPDT) contacts. This robust switch features a stainless steel silver actuator with round style and red LED illumination powered at 24 V and approximately 12 mA for high visibility in control applications.
Rated for contact voltages of 250 V AC and DC, and contact current of 3A, the switch offers reliable and safe switching performance in demanding industrial environments. The IP67 rating ensures full protection against dust ingress and water immersion, making it ideal for harsh or outdoor installations.
The device includes solder lug terminals with gold flash over silver solder tabs for secure, corrosion-resilient connections. Operating temperature ranges from -20°C minimum up to 120°C maximum, ensuring functionality across diverse climatic conditions.
This high-quality switch is engineered to meet CSA and UL standards, providing assured operational safety and compliance for electronic control panels, automation systems, and industrial machinery.
Typical applications include electrical panels, automation equipment, industrial controls, and machinery where vandal resistance and reliable momentary on-off switching are essential. The MAV19A0F20E-324-JR offers precision, durability, and enhanced visibility through its illuminated push button design.
The switch features a stainless steel silver actuator with round style for durability. It operates momentarily with DPDT on-off switch configuration rated at 250V AC and DC contact voltages. The red LED illumination utilizes 24 V at approximately 12 mA for clear visual indication.
Constructed with solder lug terminals and gold flash over silver solder tab surface for reliable connectivity. The device offers IP67 ingress protection, making it suitable for harsh environments. It supports a contact current rating of 3A and operates safely within a temperature range from -20°C to 120°C.
Panel mount type with an M19x1 bushing size ensures secure installation. The switch complies with CSA and UL standards for industrial safety and quality assurance. Discover more industrial-grade switches and components in the Electronics & Electricals category at EnvMart for reliable and certified control solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switch features a double pole double throw (DPDT) contact configuration, allowing for versatile on-off operation.
It is rated for contact voltages of 250V AC and 250V DC, making it suitable for various electrical applications.
The contact current rating for this switch is 3A, which supports reliable operation in its intended applications.
This model is equipped with solder lug terminals, providing secure and corrosion-resilient connections.
The switch operates safely within a temperature range of -20°C to 120°C, suitable for diverse environmental conditions.
It has an IP67 rating, ensuring full protection against dust ingress and water immersion, making it ideal for harsh environments.
The switch includes a red LED illumination powered at 24V and approximately 12 mA, providing clear visual indication during operation.
It features a round actuator made of stainless steel with a silver finish, designed for durability and vandal resistance.
Yes, it complies with CSA and UL standards, ensuring operational safety and quality assurance in industrial applications.
This model is designed for panel mounting, ensuring secure installation in control panels and other applications.
Typical applications include electrical panels, automation equipment, industrial controls, and machinery requiring momentary on-off switching.
The actuator color is silver, which complements its stainless steel construction and provides a professional appearance.
