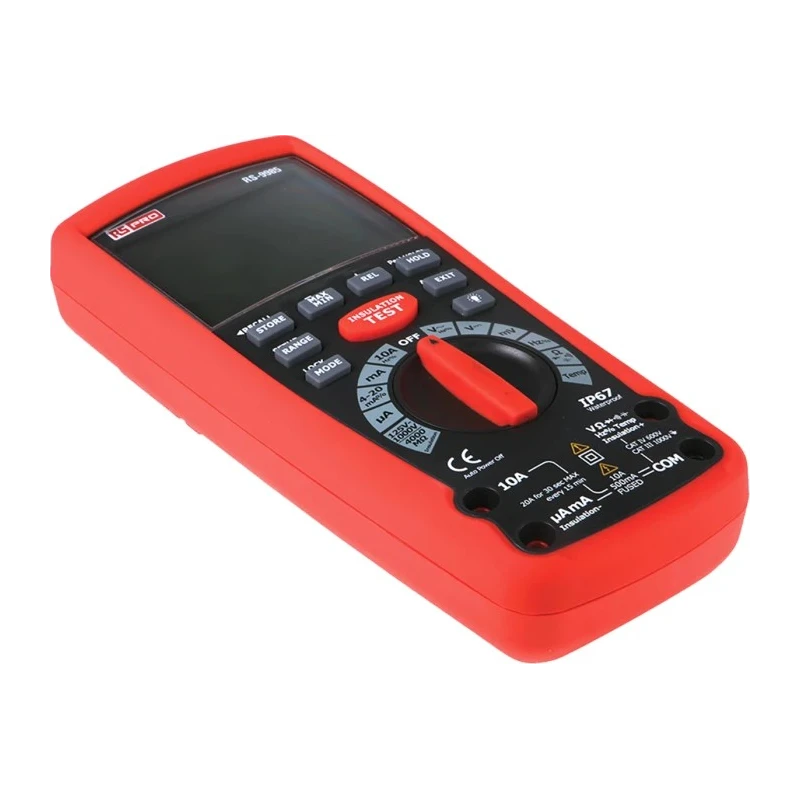

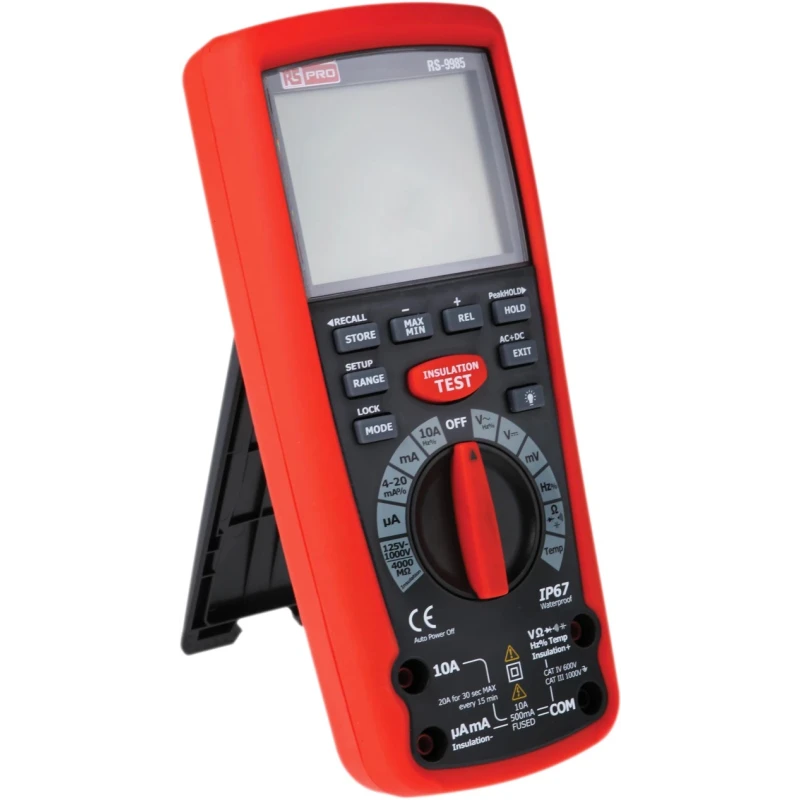

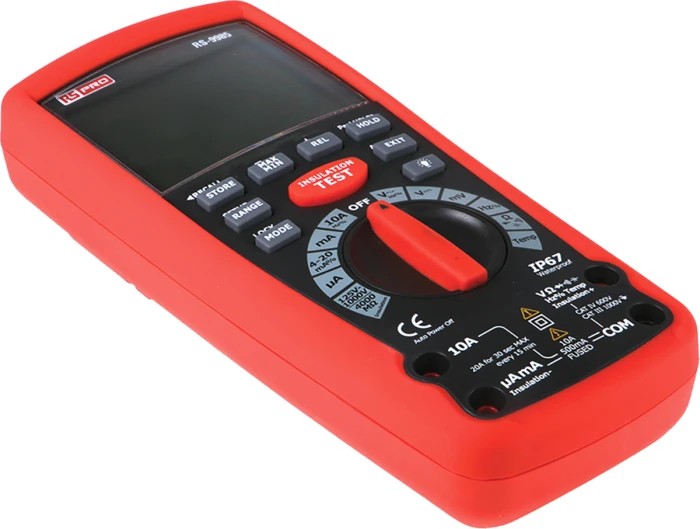

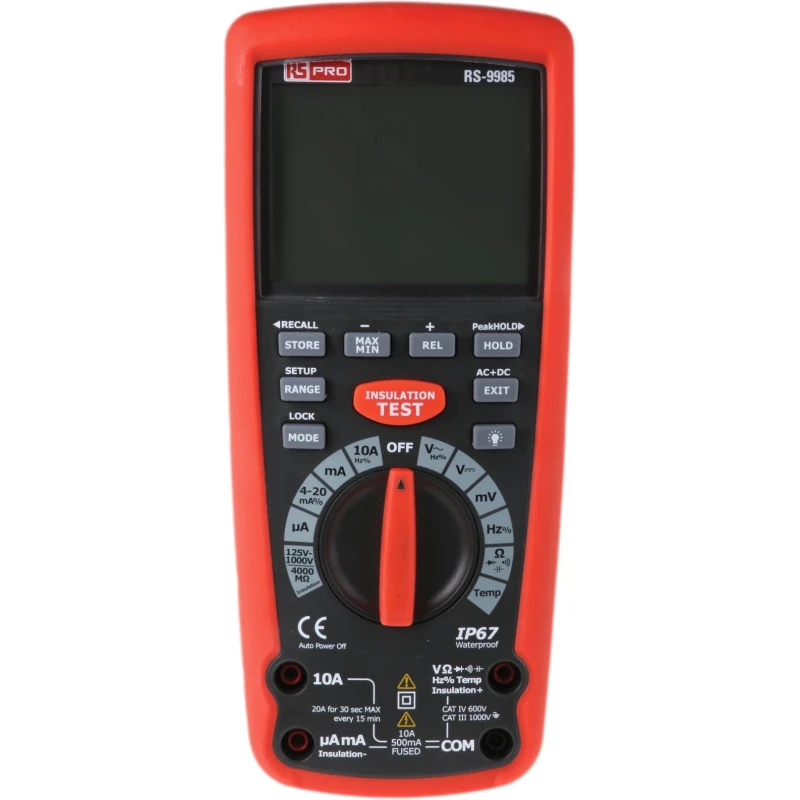

RS PRO Insulation Tester with 125 V Min and 1 kV Max Test Voltage, 4 GΩ Resistance, CAT IV, CAT III Safety Standards RS-9985
Specifications
| Country of Origin | China |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery type | AAA |
| Height | 220mm |
| Length | 96.5mm |
| Model | RS-9985 |
| Gross Weight | 631g |
| Width | 60.5mm |
| Maximum Operating Temperature | 40°C |
| Tester Type | Insulation Tester |
| Minimum Operating Temperature | 5°C |
| Test Current | 1mA |
| Minimum test Voltage | 125V |
| Standards/Approvals | EN 610101, IEC 610101 |
| Safety Category Level | CAT IV, CAT III |
| Safety Category Voltage | 1kV |
| Maximum Test Voltage | 1kV |
| Insulation Testing Resistance | 4GΩ |
| Insulation testing | Maximum of 1000V |
Key Features
- The device features a large LCD display with backlighting for clear visibility.
- It has an IP67 rating, ensuring dust tight and waterproof protection.
- Auto power off function extends battery life and can be disabled as needed.
- Wide resistance measurement range from 0.001Ω to 4000MΩ.
- Includes auto AC/DC voltage detection for accurate readings.

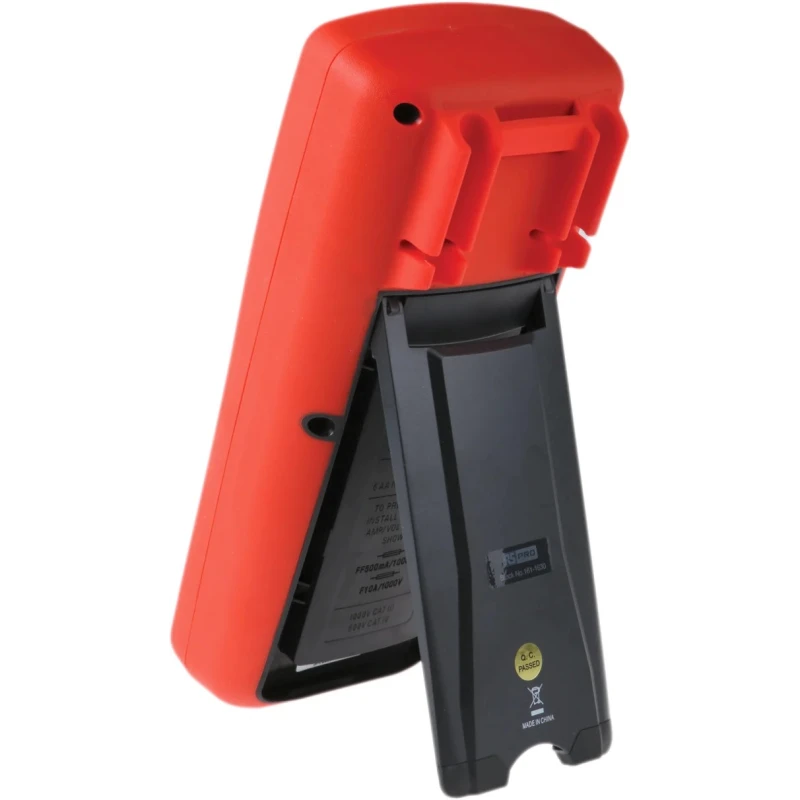

- Ergonomic tilt stand with nail hook and convenient test probe storage.
- Equipped with K-type thermocouple reading capability and supplied adapters.
- True RMS measurement allows accuracy for both sinusoidal and non-sinusoidal AC waves.
Product Description
RS PRO RS-9985 Insulation Tester is a high-precision instrument designed for measuring insulation resistance with a minimum test voltage of 125 V and maximum of 1 kV. This compact and robust tester features a clear backlit LCD display for easy reading in various industrial environments.
The device holds an IP67 rating, making it dust tight and protected against water ingress, ensuring durability in harsh conditions. It automatically detects AC/DC voltage for seamless measurements and offers a wide resistance measurement range up to 4000MΩ. Its true RMS capability enables accurate measurements on non-sinusoidal AC waves.
Designed with an ergonomic tilt stand and nail hook, the RS-9985 provides easy operation and convenient storage for test leads. It includes a K-type thermocouple adapter to measure temperature, expanding its versatility.
This tester is suitable for electrical installations, maintenance, and troubleshooting across automotive, industrial, and network applications. It complies with rigorous safety standards EN 610101 and IEC 610101 and carries CAT IV and CAT III ratings for safe operation up to 1 kV.
The large, backlit LCD ensures visibility in dim environments. IP67 certification protects against dust and water penetration. Auto power off extends battery life, with user override capability. Resistance measurement range from 0.001Ω to 4000MΩ offers high test flexibility.
Auto AC/DC voltage detection simplifies use during measurements. Ergonomic design includes tilt stand and nail hook for ease of testing. True RMS function enhances precision for AC current measurements. K-type thermocouple allows accurate temperature readings with supplied adaptor.
Safety ratings CAT IV and CAT III certify protection for high-voltage testing.

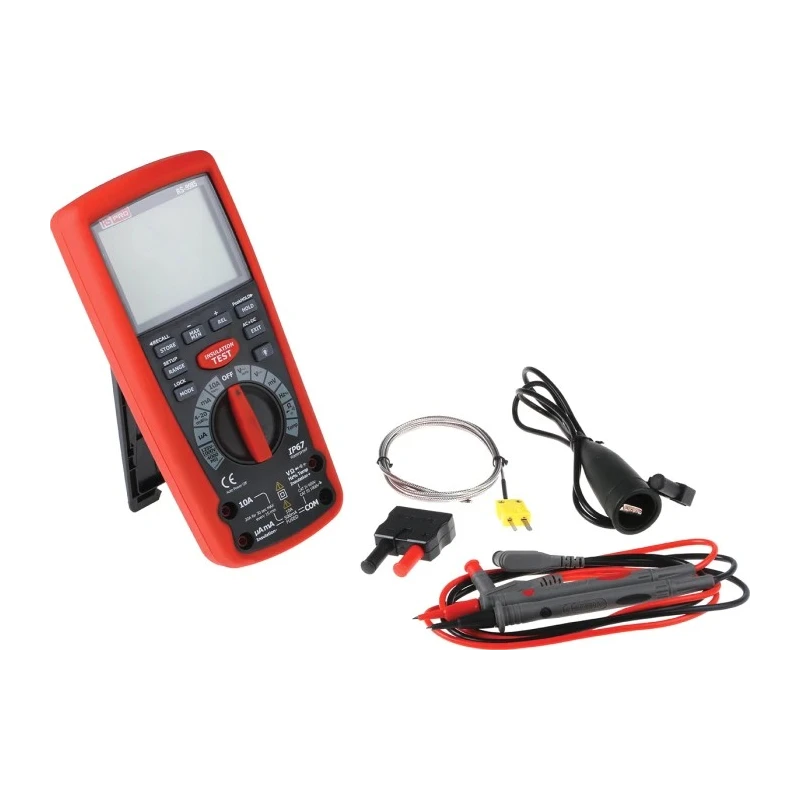

The RS PRO RS-9985 Insulation Tester is an invaluable tool for industrial, electrical, automotive, and network maintenance tasks, providing reliable insulation resistance testing to prevent electrical faults and ensure system safety. It comes with essential test leads and a 9V battery for immediate use. Explore more measuring and testing instruments at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum test voltage of this insulation tester is 1 kV.
It has a wide resistance measurement range from 0.001Ω to 4000MΩ.
This model complies with EN 610101 and IEC 610101 safety standards, carrying CAT IV and CAT III ratings.
It features a large LCD display with backlighting for clear visibility in various conditions.
The operating temperature range is from 5°C to a maximum of 40°C.
Yes, it includes a K-type thermocouple adapter for measuring temperature.
The gross weight of this unit is 631g.
It is powered by AAA batteries, and a 9V battery is included for immediate use.
It features an ergonomic tilt stand, a nail hook for easy operation, and convenient storage for test probes.
The test current for this model is 1mA.
The RS-9985 has an IP67 rating, indicating it is dust tight and protected against water ingress.
Yes, it includes auto AC/DC voltage detection for accurate readings during measurements.
