Alps Alpine SPPJ3 Series Push Button Switch Latching PCB Mount DPDT 30 V dc SPPJ3

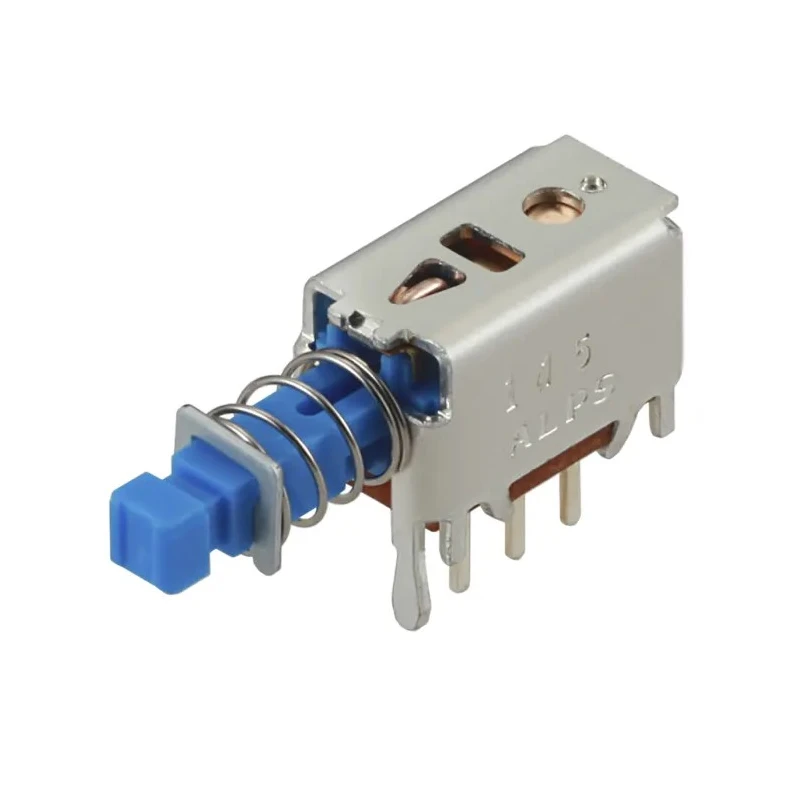

Name: Alps Alpine SPPJ3 Series Push Button Switch Latching PCB Mount DPDT 30 V dc SPPJ3
Brand: Alps Alpine
SKU: 318035
Price: 2.91 USD
Availability: InStock



Category Push Button Switch Brand Alps Alpine Condition New

Specifications

Country of Origin	India
Brand	Alps Alpine
Height	8.3mm
Model	SPPJ3
Width	6.6mm
Mount Type	PCB
Series	SPPJ3
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Minimum Operating Temperature	-40°C
Terminal type	PCB Pin
Standards/Approvals	RoHS
Switch Operation	Latching
Actuator Colour	Black
Contact DC Voltage	30V dc
Actuator Style	Square
Switch Contact Current	200mA

Key Features

The actuator is black and square with 2.5 mm travel for easy operation.
This switch offers reliable latching operation suitable for compact applications.
Designed for PCB mounting, it is simple to install in space-constrained environments.
It supports a contact current of 200 mA at a maximum voltage of 30 V dc.
Operates over a temperature range from -40°C to 85°C, ensuring durability.
The switch complies with RoHS standards ensuring environmental compliance.
It provides a long life cycle with a mean time before failure (MTBF) of 10,000 cycles.

Product Description

Alps Alpine SPPJ3 Series Push Button Switch SPPJ3 is a high-quality latching switch designed for PCB mounting, featuring a double-pole double-throw (DPDT) contact configuration suitable for various electronic and electrical applications.

The actuator is black and square-shaped with 2.5 mm travel, providing a tactile response and robust mechanical performance. This switch is suitable for compact, space-critical applications where reliable switching is required.

Supporting a contact current of 200 mA and a DC voltage rating of 30 V, it provides stable electrical performance. It operates efficiently in harsh environments with an operating temperature range from -40°C to 85°C, making it a durable component in industrial, automation, and electronic systems.

The SPPJ3 switch complies with RoHS standards, ensuring it meets environmental and safety requirements. Its compact dimensions of 6.6 mm width and 8.3 mm height make it ideal for integration into densely populated PCBs.

This product offers a mean time before failure (MTBF) rating of 10,000 cycles, emphasizing its long service life and reliability in repetitive use applications. The actuator is black and square with 2.5 mm travel for user-friendly actuation.

Simple PCB mounting supports efficient assembly and space saving. Offers latching switch operation ensuring the switch stays in the toggled position. Contact configuration is DPDT for complex circuit control functionality.

Maximum contact current is 200 mA at 30 V dc for low power applications. Wide operating temperature range of -40°C to 85°C allows use in varied environments. RoHS compliant, meeting modern environmental standards. Dimensions are compact with 6.6 mm width and 8.3 mm height.

Durable with a mean time between failures (MTBF) of 10,000 cycles.

This switch is suitable for industrial, automation, HVAC controls, and electronic equipment requiring precise and reliable switching functions. It is an ideal choice for designers seeking a robust, compact, and efficient latching push button switch for PCB applications.

Explore more Push Button Switches and components on EnvMart for your electronic and electrical project needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The SPPJ3 switch features a double-pole double-throw (DPDT) contact configuration, suitable for various electronic and electrical applications.

This model supports a maximum contact current of 200 mA at a DC voltage rating of 30 V.

The dimensions of the SPPJ3 switch are 6.6 mm in width and 8.3 mm in height, making it compact for PCB mounting.

The switch operates efficiently over a temperature range from -40°C to 85°C, allowing it to function in various environments.

Yes, the SPPJ3 switch complies with RoHS standards, ensuring it meets modern environmental and safety requirements.

This switch is designed for PCB mounting, allowing for simple installation in space-constrained environments.

The actuator of the SPPJ3 switch is square in style and black in color, providing a user-friendly actuation experience.

The SPPJ3 switch has a mean time before failure (MTBF) rating of 10,000 cycles, indicating its reliability in repetitive use applications.

The actuator has a travel distance of 2.5 mm, which allows for easy operation.

The switch features PCB pin terminals, which facilitate its mounting on printed circuit boards.

This switch is suitable for industrial, automation, HVAC controls, and electronic equipment requiring precise and reliable switching functions.

The latching operation ensures that the switch stays in the toggled position until it is manually changed, providing reliable control in various applications.
