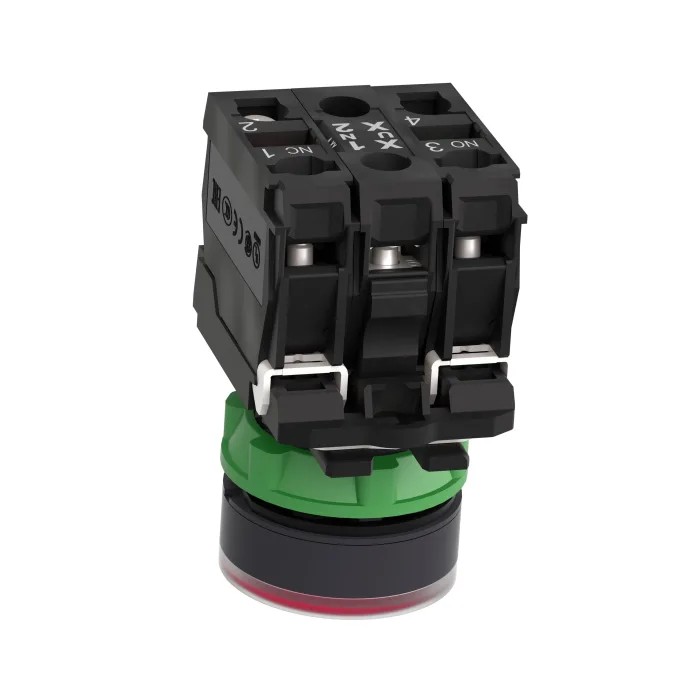

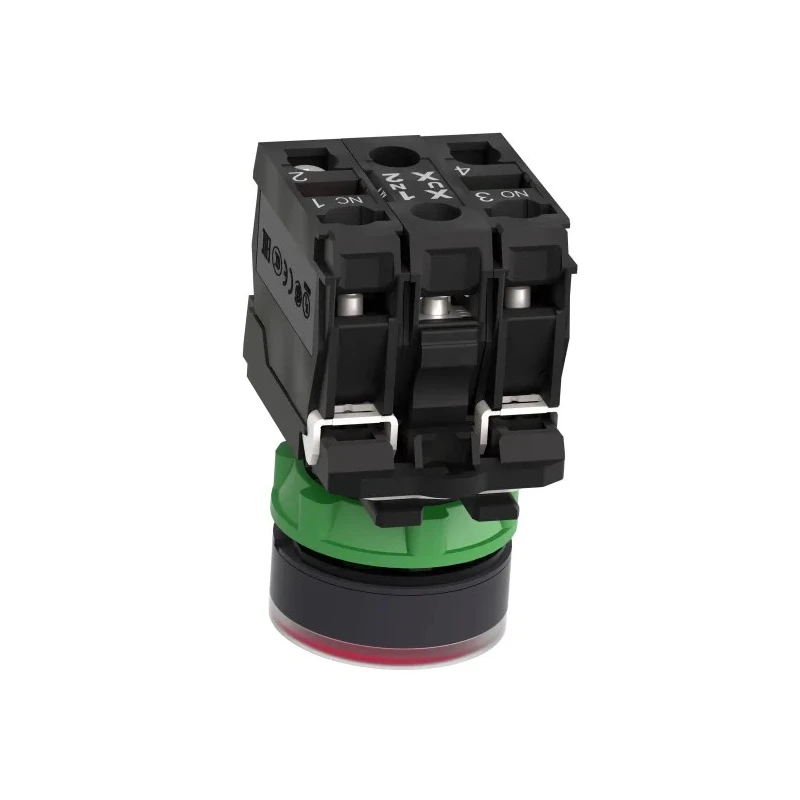

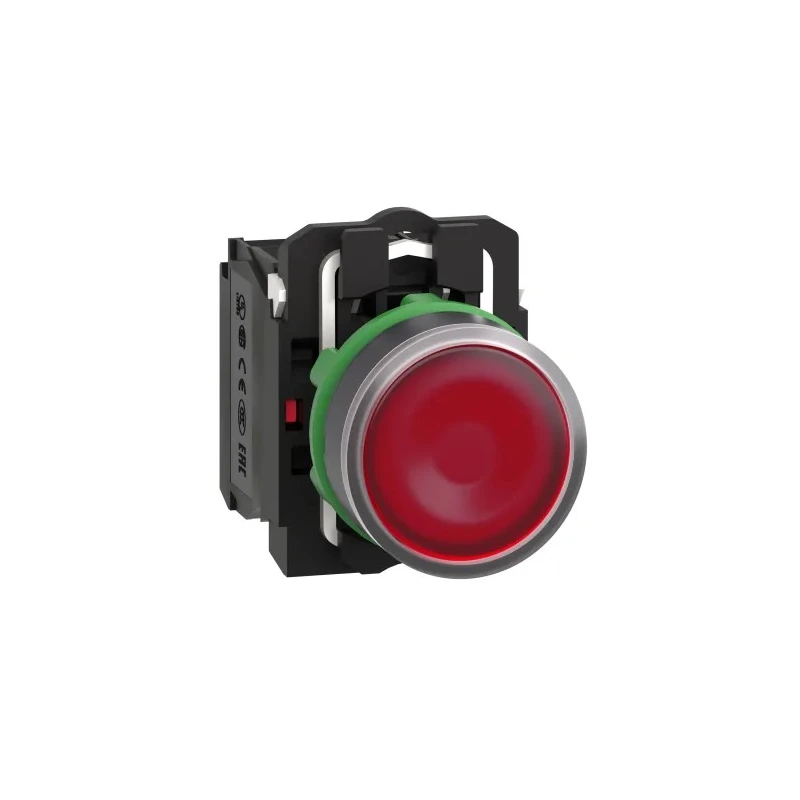

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB5AW34M5

Schneider Electric XB5AW34M5 is an illuminated push button switch designed specifically for industrial and electrical automation applications. It features a robust round red actuator with LED illumination, ensuring excellent visibility even in low light conditions. The switch operates with a spring return mechanism, allowing it to return to its default position after activation which improves safety and operational efficiency.

Its panel mount design integrates seamlessly with control panels, requiring a 22 mm diameter cutout for installation. The SPDT contact configuration (1 NO/1 NC) offers flexible operational modes suitable for a range of control and signaling applications in machinery, lighting systems, HVAC controls, and automation processes.

Engineered for durability, the switch withstands temperature extremes from -25°C to +70°C and meets stringent standards such as UL 508, JIS C8201-5-1, EN/IEC 60947 series, and CSA C22.2 No. 14. It is certified for use in harsh environments thanks to its IP66, IP67, and IP69K ingress protection, enabling resistance to dust, water jets, and high pressure cleaning at 7,000,000 Pa at 55°C.

The switch features screw-type terminals that comply with EN/IEC 60947-1 standards for safe and reliable electrical connections. It is rated for 240V AC contact voltage and supports a switch contact current of 10A, suitable for controlling a wide range of industrial equipment.

With a mechanical lifespan of 10 million cycles and an electrical lifespan of 1 million cycles, this push button is designed for long-lasting performance in demanding industrial applications. It is also a Better World product with the claim of being repairable by the end user, highlighting its sustainability and serviceability.

Features a spring return actuator for automatic reset after operation. Round red illuminated push button enhances visibility in control panels. Supports panel mounting with a 22 mm diameter cutout size. SPDT (Single Pole Double Throw) contact configuration for versatile switching applications.

Equipped with red LED illumination for clear status indication. Screw terminal type ensures secure and easy wiring connections. Operates reliably within a temperature range of -25°C to +70°C. Conforms to multiple international standards including UL, JIS, IEC, and CSA.

Designed to withstand harsh industrial environments with IP66, IP67, and IP69K protection ratings. Mechanical durability of 10 million cycles and electrical durability of 1 million cycles ensure long-term reliability.

This illuminated push button switch is widely used in various industrial control panels, machinery interfaces, lighting controls, and HVAC systems. Its combination of durability, compliance, and ease of use makes it an ideal choice for manufacturing plants, commercial buildings, and automation system integrators looking to ensure reliable human-machine interaction.
