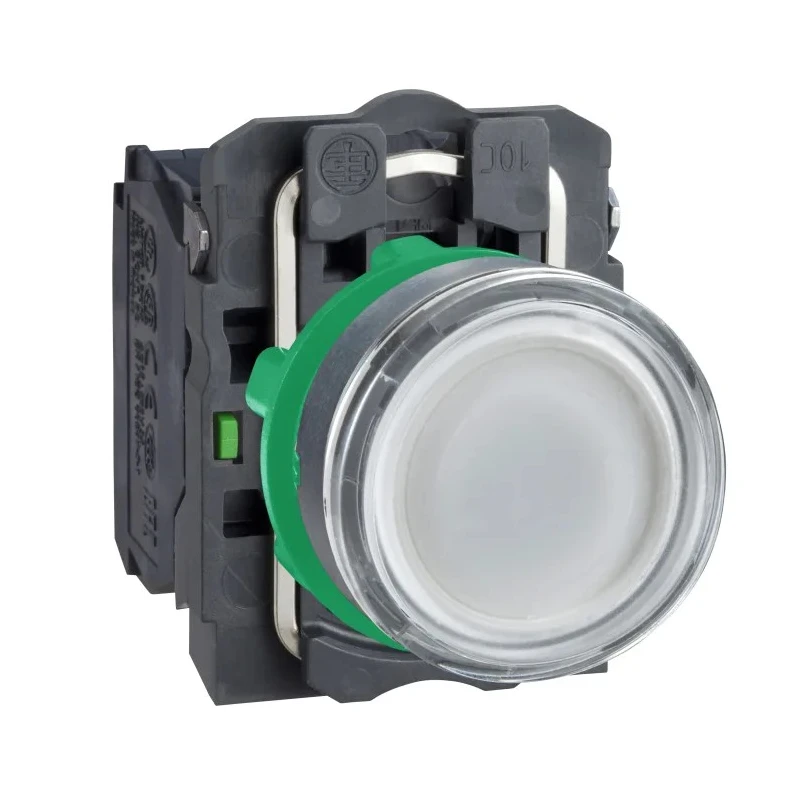

Schneider Electric Harmony XB5 Series Illuminated Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout XB5AW3165

Schneider Electric XB5AW3165 Harmony XB5 Series illuminated push button switch features a spring return mechanism and SPDT contact arrangement suitable for industrial and automation control panels requiring reliable user interface elements.

This panel mount switch fits standard 22 mm cutouts and uses screw clamp terminals for straightforward wiring. The white illuminated round actuator provides ergonomic operation and clear machine status indication even in low light environments.

Constructed with durable double-insulated plastic, the switch is resistant to chemicals, impacts, dust, water ingress, and vibrations, supporting IP66, IP67, IP69, and IP69K protection levels. These attributes make it ideal for harsh industrial, manufacturing, and outdoor applications including electrical automation systems.

The device is rated to handle contact currents of 10 A at 600 V AC/DC and offers operational functionality across a temperature range of -25°C to 70°C. The spring return action ensures the push button returns to its default position after actuation, allowing reliable impulse control.

Designed for long-term durability and ease of maintenance, it supports up to 10,000,000 mechanical operations. The plastic bezel also ensures double electrical insulation for enhanced safety.

The white illuminated actuator ensures enhanced panel visibility. Compact 22 mm round panel cutout size allows wide compatibility. SPDT contact configuration supports dual circuit switching. Spring return mechanism for impulse style push button operation.

High mechanical endurance with 10 million operation cycles. Robust IP66 to IP69K ratings for extreme environmental resistance. Screw terminal connections provide secure wiring. Operating temperature range from -25°C to 70°C.

10 A rated contact current at 600 V AC/DC contact voltage. Impact and chemical resistant plastic bezel.

This illuminated Push Button Switch from Schneider Electric Harmony XB5 Series is widely used in industrial automation, machinery controls, electrical panels, and safety boards where precise and reliable push button control is essential. Its high ingress protection and mechanical durability ensure dependable performance in challenging environments such as manufacturing floors, water treatment plants, and HVAC systems.
