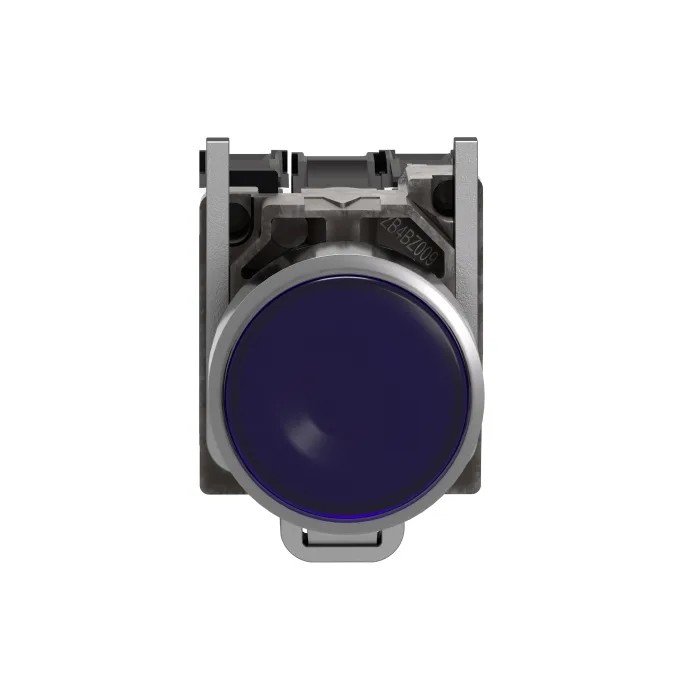

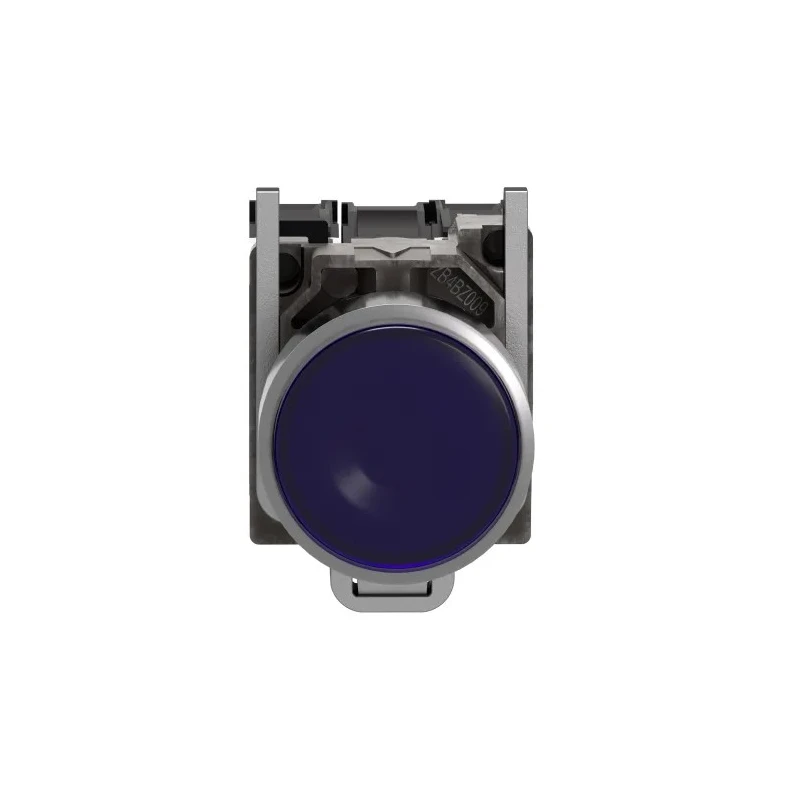

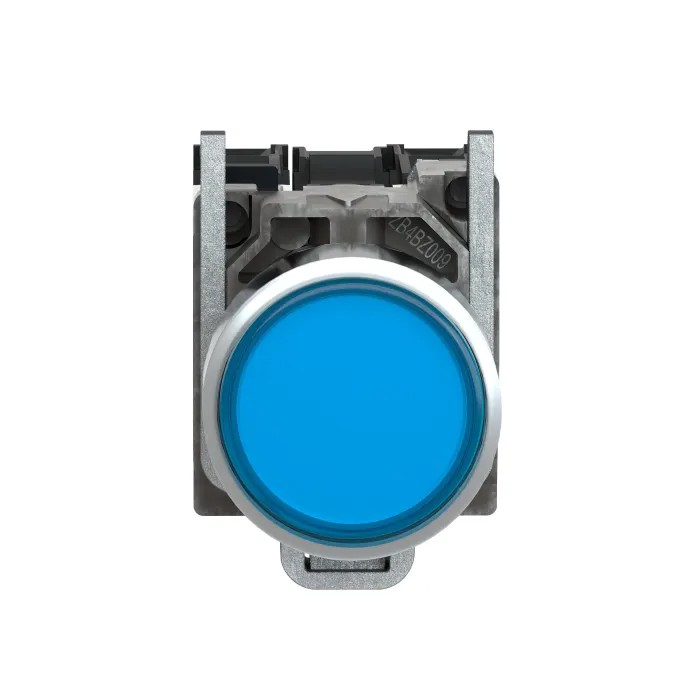

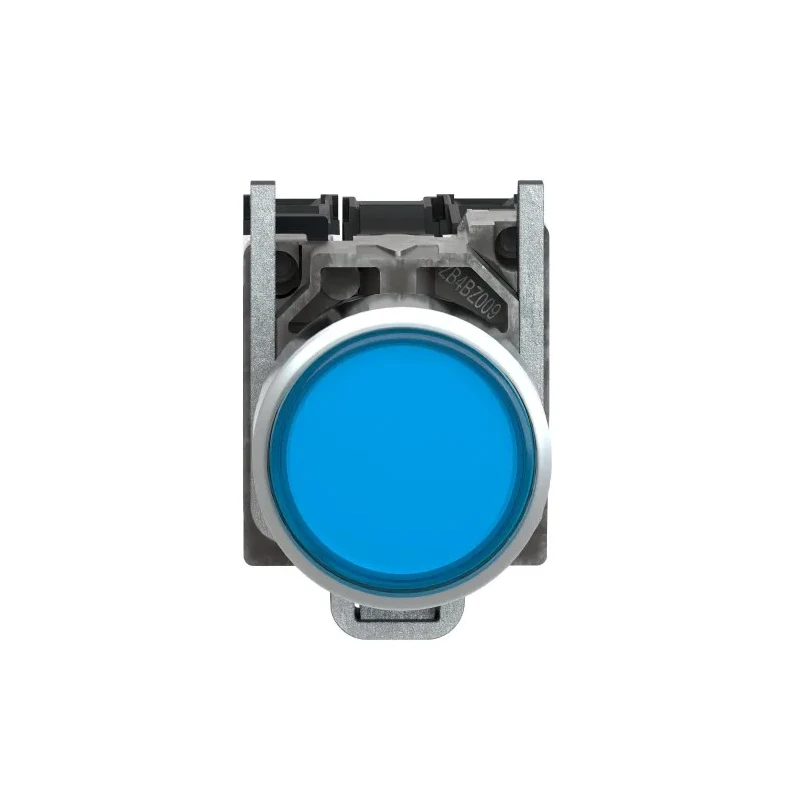

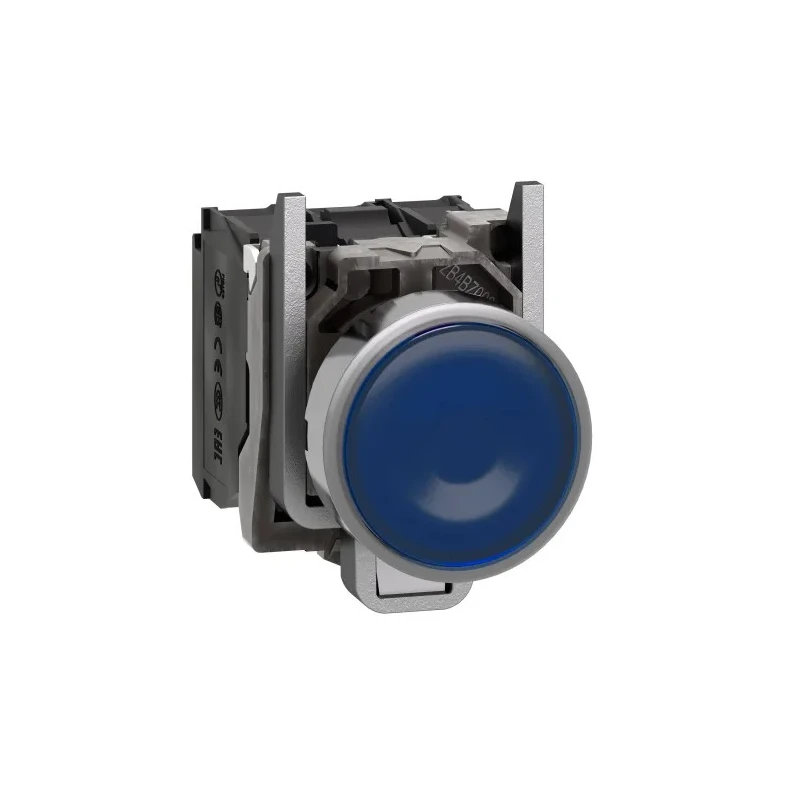

Schneider Electric Harmony XB4 Series Illuminated Push Button Switch SPDT Blue LED 22 mm Cutout Slow Break XB4BW36M5

Name: Schneider Electric Harmony XB4 Series Illuminated Push Button Switch SPDT Blue LED 22 mm Cutout Slow Break XB4BW36M5
Brand: Schneider Electric
SKU: 318026
Price: 72.55 USD
Availability: InStock



Category Push Button Switch Brand Schneider Electric Condition New

Specifications

Country of Origin	India
Brand	Schneider Electric
Height	47mm
Length	101mm
Model	XB4BW36M5
IP Rating	IP66, IP67, IP69, IP69K
Width	30mm
Mount Type	Panel
Series	Harmony XB4
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	1 NO/1 NC
Minimum Operating Temperature	-40°C
Panel Cutout Size	22 mm
Terminal type	Screw
LED Colour	Blue
Switch Operation	Slow Break
Actuator Colour	Blue
Contact DC Voltage	240V
Actuator Style	Round
Switch Contact Current	10A
Contact AC Voltage	240V ac
Better World Claim	Repairable by the End User
Legend	Blank

Key Features

Designed for panel mounting with a 22 mm cutout for precise installation.
Illuminated blue LED improves operational visibility in low-light conditions.
SPDT contact configuration allows versatile circuit connections.
High IP66, IP67, IP69, and IP69K protection against dust and water ingress.
Operational temperature range from -40°C to +70°C for diverse environments.
Durable plastic and chromium-plated metal construction for longevity.
Rated at 10A switch contact current suitable for various control circuits.
Screw clamp terminals accommodate wire sizes up to 2x2.5mm².

Product Description

Schneider Electric XB4BW36M5 is a Harmony XB4 Series illuminated Push Button Switch designed for robust industrial applications. This slow break switch features a blue LED indicator, enhancing visibility during operation for control panels in automation systems and machinery controls.

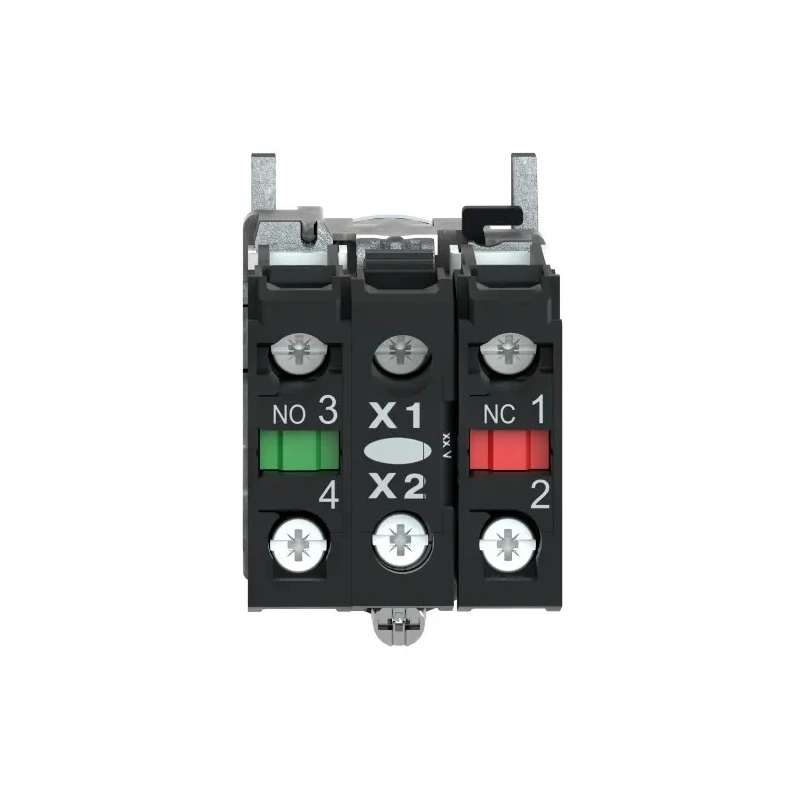

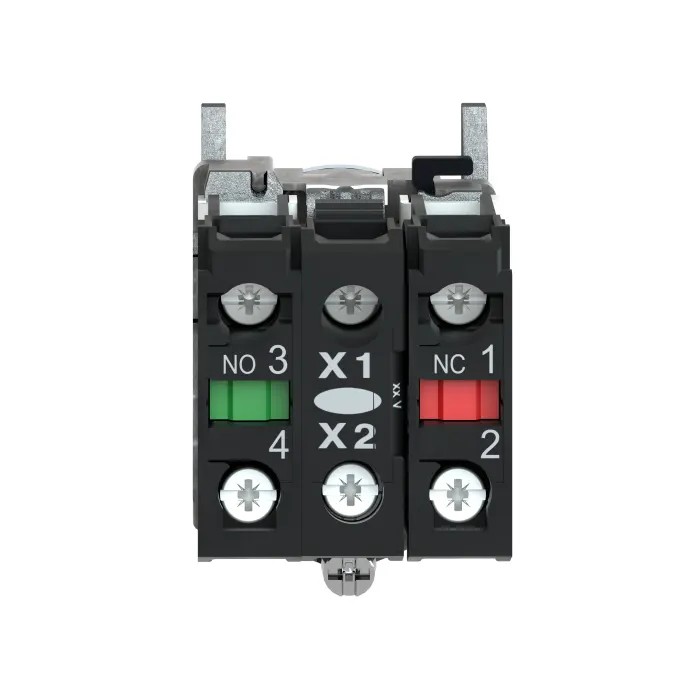

The push button incorporates a 22 mm panel cutout and is suited for flush panel mounting. Its SPDT contact configuration provides flexible switching capabilities, allowing one normally open and one normally closed contact.

Engineered for harsh environments, this switch holds IP66, IP67, IP69, and IP69K ingress protection ratings, making it dust-tight and resistant to powerful water jets and high-pressure cleaning. It functions effectively across a wide temperature range from -40°C to 70°C, ensuring reliability in extreme ambient conditions.

Constructed from durable plastic and chromium-plated metal, this push button offers longevity and repairability, promoting sustainability in industrial use. The 10A contact current rating supports diverse electrical control applications. Screw terminals enable stable and secure wiring connections up to 2x2.5mm² wire size.

This switch complies with multiple international standards including UL 508, EN/IEC 60947-5-1, and CSA C22.2 No. 14, assuring safe and reliable operation. Designed for control panel integration in industrial automation systems.

Suitable for emergency stop and signalling applications in machinery controls. Protects circuits with robust slow break switching operation. Durable in environments with dust, moisture, and temperature extremes. Enhances visibility and safety with the integrated blue LED illumination.

Schneider Electric products like this push button are widely utilized in electrical control circuits, manufacturing automation, HVAC systems, and other industrial operations. Browse more Schneider Electric push buttons and switches at EnvMart for quality and reliability.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch features a Single Pole Double Throw (SPDT) contact configuration, providing one normally open and one normally closed contact.

The maximum operating temperature for this model is 70°C, allowing it to function effectively in high-temperature environments.

This model has a height of 47 mm, a width of 30 mm, and a length of 101 mm, making it suitable for panel mounting.

It has an IP rating of IP66, IP67, IP69, and IP69K, indicating it is dust-tight and resistant to high-pressure water jets.

The switch is rated for a contact current of 10A, suitable for various electrical control applications.

The required panel cutout size for this switch is 22 mm, ensuring precise installation.

It uses screw terminals that accommodate wire sizes up to 2x2.5 mm², providing stable and secure wiring connections.

The illuminated push button features a blue LED, enhancing visibility during operation in low-light conditions.

The minimum operating temperature for this model is -40°C, allowing it to operate in extremely cold environments.

This switch is suitable for control panel integration in industrial automation systems, emergency stop, and signaling applications in machinery controls.

The push button is constructed from durable plastic and chromium-plated metal, promoting longevity and repairability.

It complies with multiple international standards, including UL 508, EN/IEC 60947-5-1, and CSA C22.2 No. 14, ensuring safe and reliable operation.
