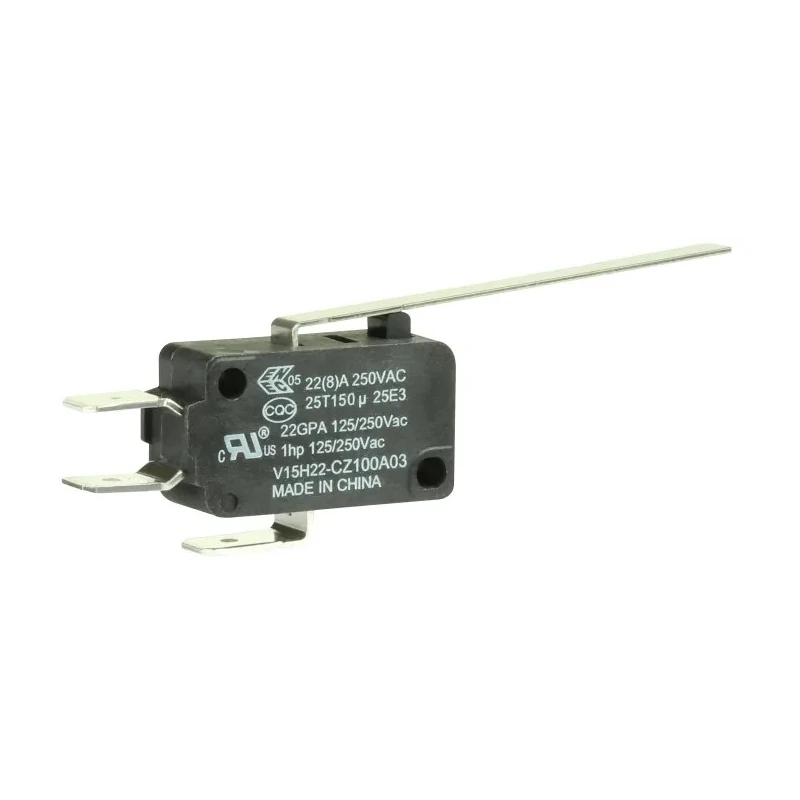

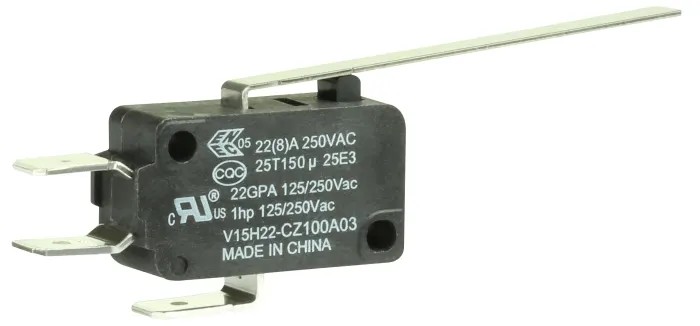

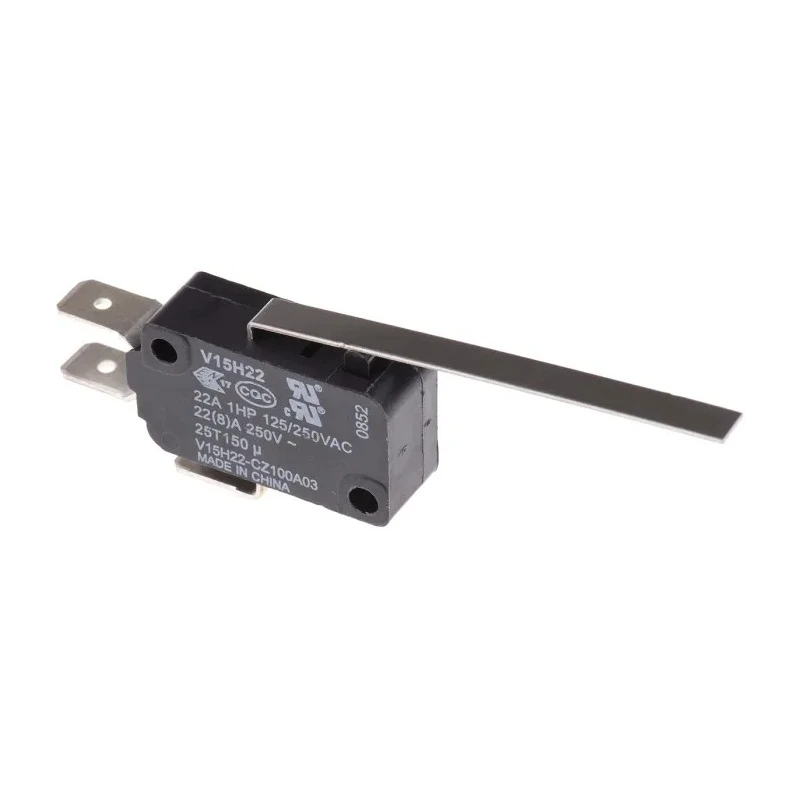

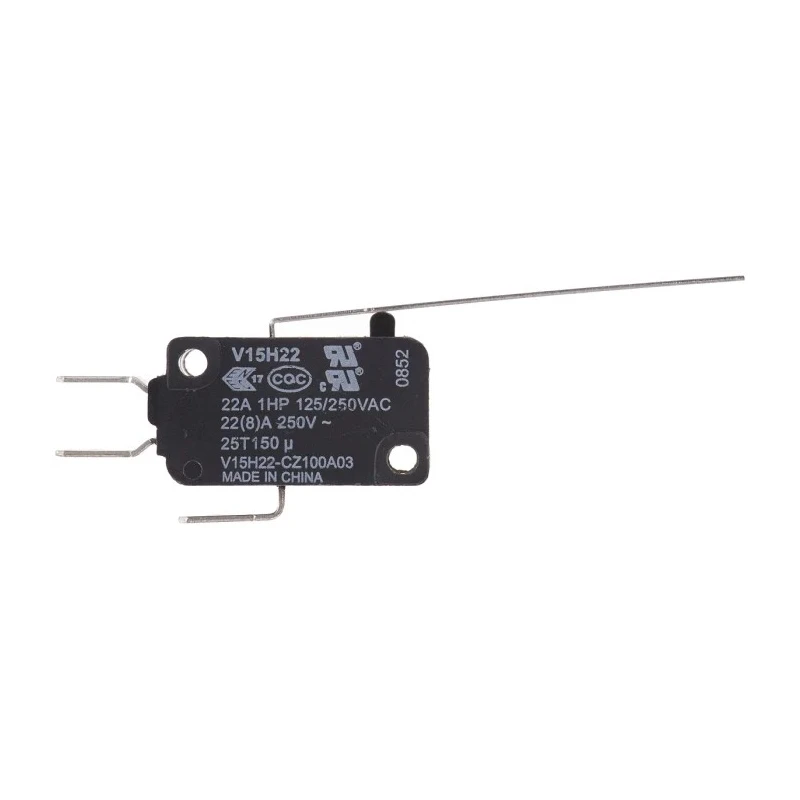

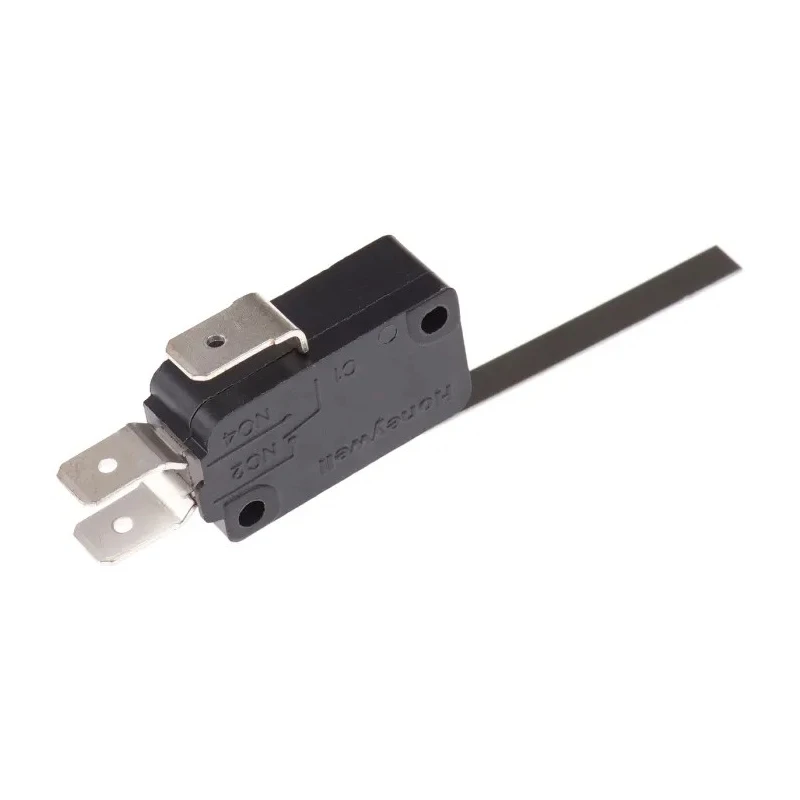

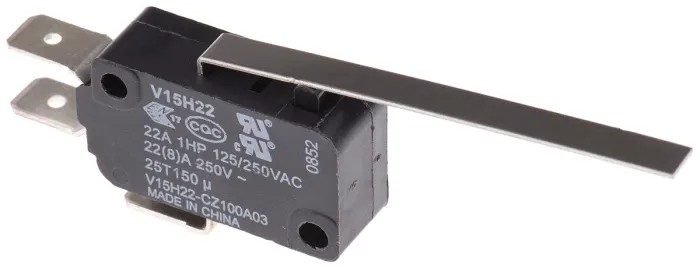

Honeywell Technologies Long Leaf Lever Micro Switch 22A 250V AC SPDT IP67 V15H22-CZ100A03

Honeywell Technologies V15H22-CZ100A03 is a high-reliability Long Leaf Lever Micro Switch engineered for diverse industrial, automation, and electrical control use cases. Rated for a 22 ampere contact current and 250V AC voltage, this SPDT micro switch offers robust performance in demanding environments.

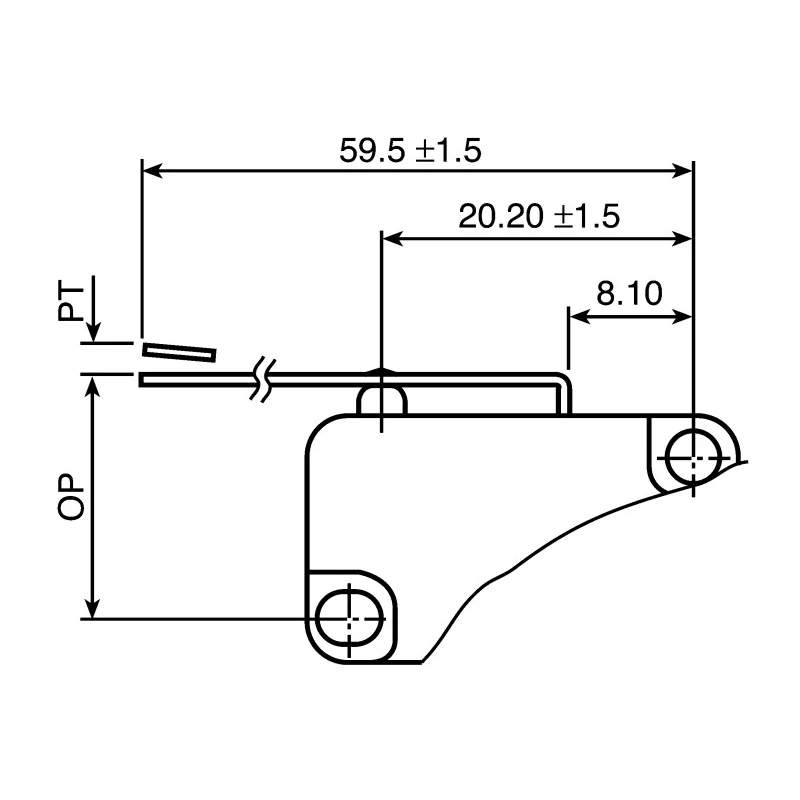

The switch's long leaf lever actuator provides a large contact surface and extended mechanical travel, ensuring precise and reliable engagement with actuating mechanisms such as cams or plungers. The sealed housing with an IP67 ingress protection rating effectively prevents water and dust ingress, making it suitable for harsh and wet industrial applications.

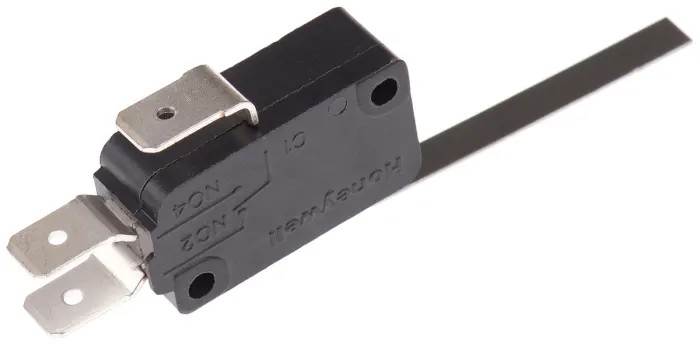

This model features quick connect terminals that allow for rapid wiring and easy maintenance without specialized tools, reducing downtime in field servicing. The switch can operate reliably within a wide temperature range from -25°C to 150°C, enabling use in extreme cold storage or high-temperature process environments.

The single pole double throw (SPDT) contact configuration enables changeover switching or safety interlock applications commonly found in motor controls, conveyor systems, and automated machinery. It is designed for long-term durability with a mechanical life expectancy of one million cycles.

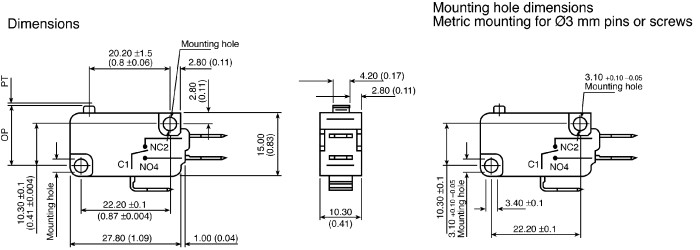

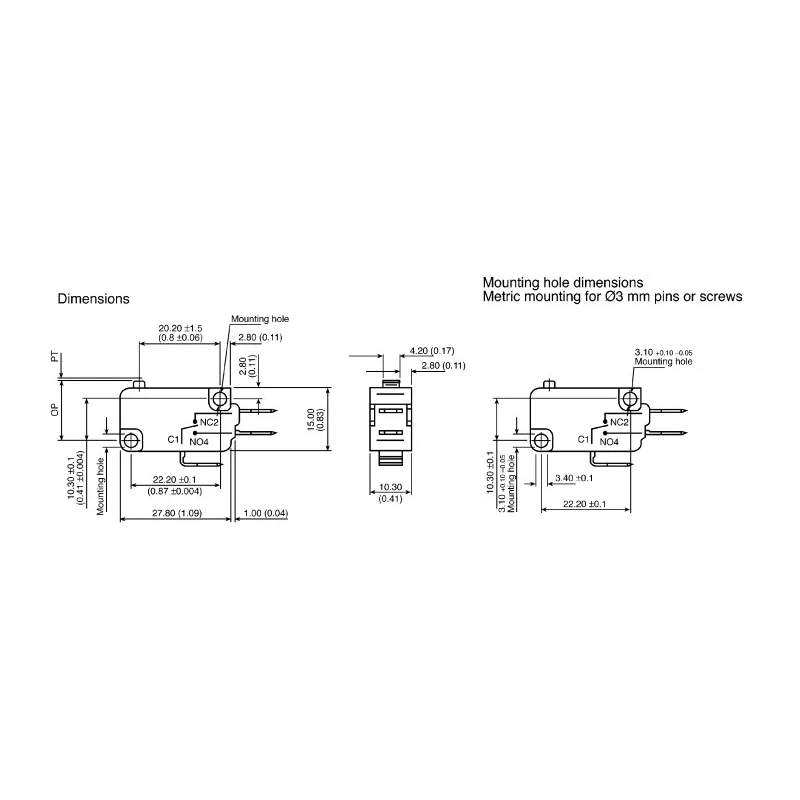

Certified to industry standards including CQC, cUL, ENEC, RoHS, and UL, this Honeywell Technologies micro switch meets global regulatory requirements for safety and environmental compliance. Manufactured in China, it offers compact dimensions - 27.8 mm length, 15.9 mm depth, and 10.3 mm width - facilitating integration in control panels and electrical assemblies.

Features a long leaf lever actuator for precise mechanical actuation. Quick connect terminals enable fast installation and maintenance. Sealed IP67 housing protects against water and dust ingress. Handles 22A contact current at 250V AC for robust electrical performance.

Single pole double throw (SPDT) configuration for versatile circuit control. Wide operating temperature range from -25°C to 150°C. Mechanical life rated up to 1,000,000 cycles for longevity. Multiple certifications including CQC, cUL, ENEC, RoHS, and UL ensure compliance.

Compact physical dimensions for easy mounting and integration.

This micro switch is ideal for industrial automation tasks such as limit switching on actuators, motor control circuits, conveyor systems, and safety interlock applications. It suits installations requiring durable, waterproof, and high-current switching solutions in manufacturing, HVAC, and process industries.
