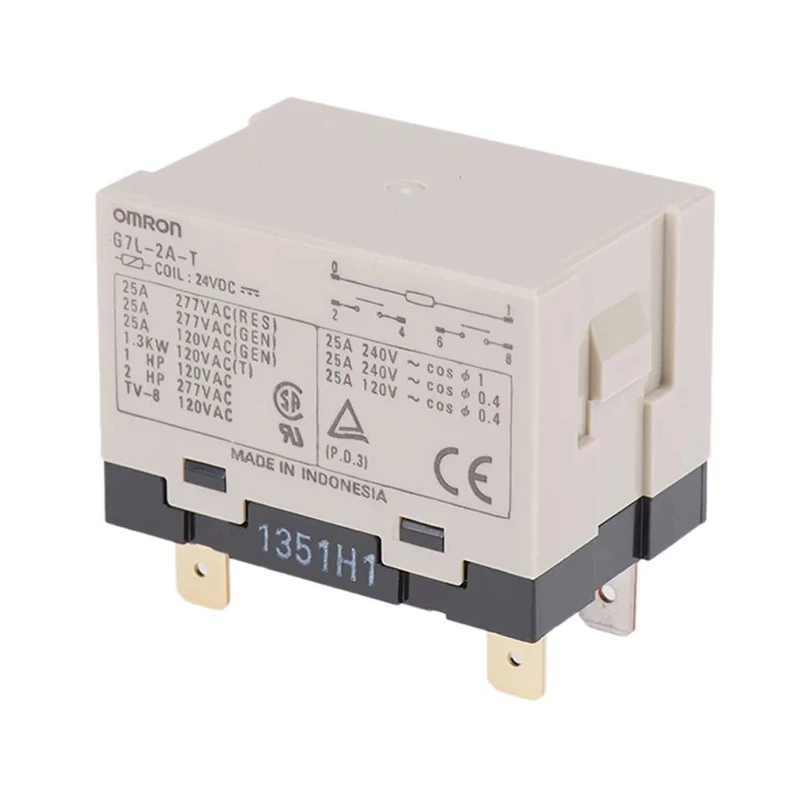

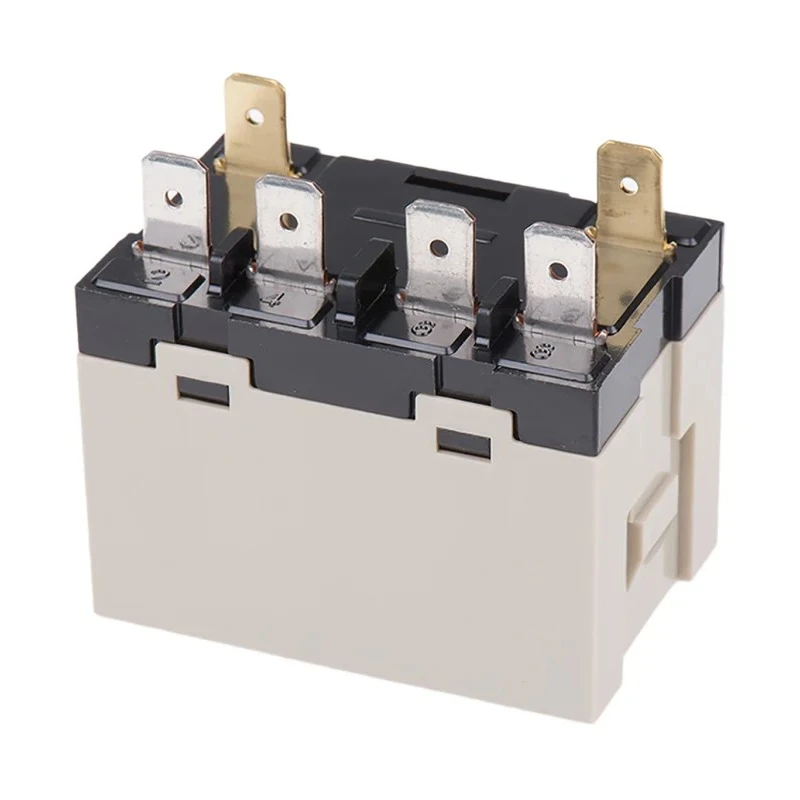

Omron Panel Power Relay, 24V DC Coil Voltage, 25A Switching Current, DPST, Quick Connect Terminals G7L-2A-T DC24
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 53mm |
| Length | 52.5mm |
| Model | G7L-2A-T DC24 |
| Width | 33.5mm |
| Mount Type | Panel |
| Series | G7L |
| Maximum Operating Temperature | 60°C |

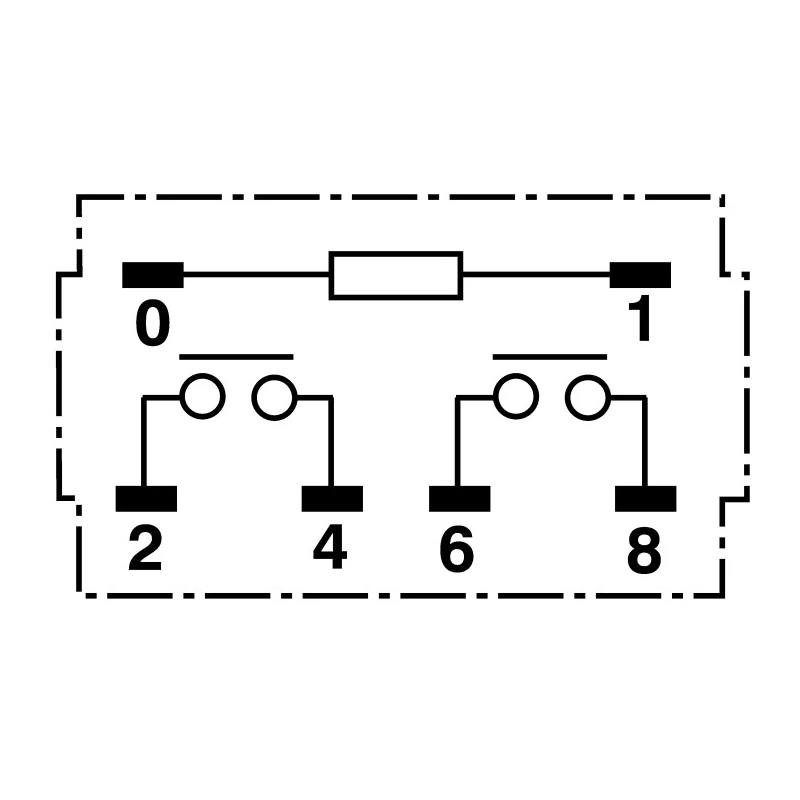

| Contact Configuration | DPST |
| Minimum Operating Temperature | -25°C |
| Switching Current | 25A |
| Terminal type | Quick Connect |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 303Ω |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.9W |
Key Features
- Coil resistance is 303 ohms for stable operation.
- Quick connect terminal type allows easy and secure mounting.
- Operational temperature range from -25°C to 60°C ensures reliable performance.
- Compact dimensions of 52.5mm length, 33.5mm width, and 53mm height.
- Switching AC voltage rating up to 250V AC and switching power of 5.5 kVA.
- Flame-resistant insulation materials enhance safety and durability.
- Contact resistance rated at 50 milliohms for efficient electrical connectivity.
- Designed for applications including power controllers for water heaters, motors, lighting control, and office equipment.
Product Description
Omron G7L-2A-T DC24 panel power relay is a non-latching relay designed for panel mounting, featuring a 24V DC coil and a dual-pole single-throw (DPST) contact configuration with a switching current of 25A. The high-capacity relay supports switching AC voltages up to 250V and switching power up to 5.5 kVA, providing robust switching for industrial and commercial electrical systems.
The coil resistance is precisely 303 ohms, allowing stable coil operation with low power consumption of 1.9 watts. This relay operates reliably within a temperature range from -25° to 60°C, making it suitable for demanding environments. The quick connect terminal type simplifies installation and maintenance in control panels.

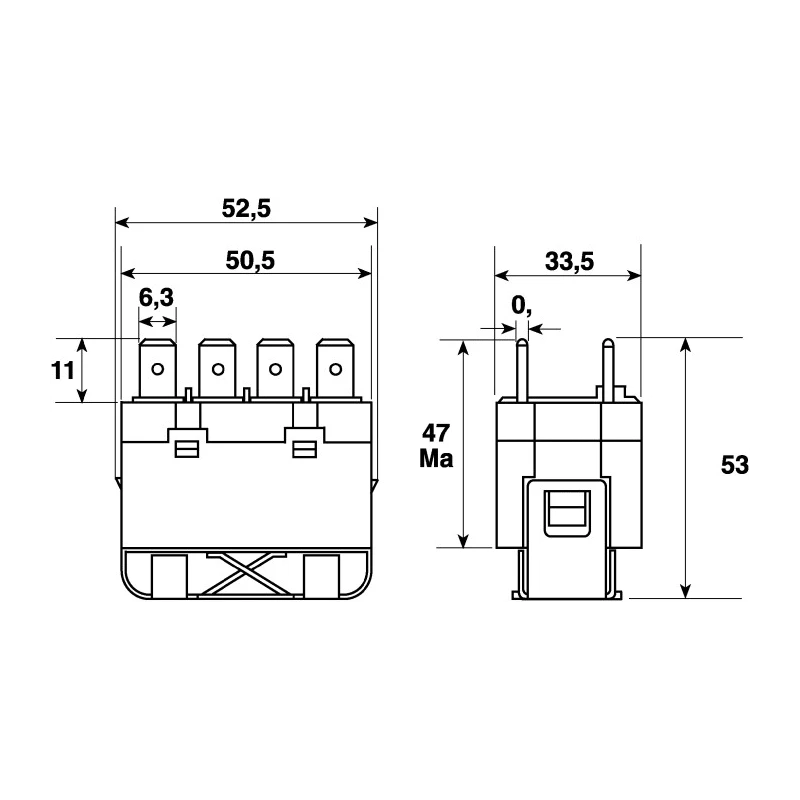

Manufactured using flame-resistant materials for all insulation components, the Omron G7L-2A-T DC24 ensures enhanced safety. Its compact dimensions (Length: 52.5 mm, Width: 33.5 mm, Height: 53 mm) support space-efficient integration into panel layouts.
Common applications include power control for water heaters and dryers, switching motors and power tools, lighting control systems, magnetron control in microwave ovens, as well as power supply switching for office equipment such as copy machines and facsimile devices.
Coil resistance is 303 ohms for stable operation. Quick connect terminal type allows easy and secure mounting. Operational temperature range from -25°C to 60°C ensures reliable performance. Compact dimensions of 52.5mm length, 33.5mm width, and 53mm height.
Switching AC voltage rating up to 250V AC and switching power of 5.5 kVA. Flame-resistant insulation materials enhance safety and durability. Contact resistance rated at 50 milliohms for efficient electrical connectivity.
Designed for applications including power controllers for water heaters, motors, lighting control, and office equipment.
Omron is a recognized brand in industrial electrical components, providing reliable and durable relays for a wide range of automation and power control tasks. EnvMart offers this relay to support your industrial and commercial electrical system needs.
Explore more products in our Power Relays category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
This relay has a maximum switching current of 25A.
The dimensions of this relay are 52.5mm in length, 33.5mm in width, and 53mm in height.
It operates reliably within a temperature range from -25°C to 60°C.
This relay features quick connect terminals for easy and secure mounting.
The switching AC voltage rating for this model is up to 250V AC.
This relay has a dual-pole single-throw (DPST) contact configuration.
The coil resistance is 303 ohms, allowing for stable operation.
The contact resistance is rated at 50 milliohms for efficient electrical connectivity.
The switching power rating for this relay is up to 5.5 kVA.
It is designed for applications including power control for water heaters, motors, lighting control, and office equipment.
This relay complies with RoHS standards.
