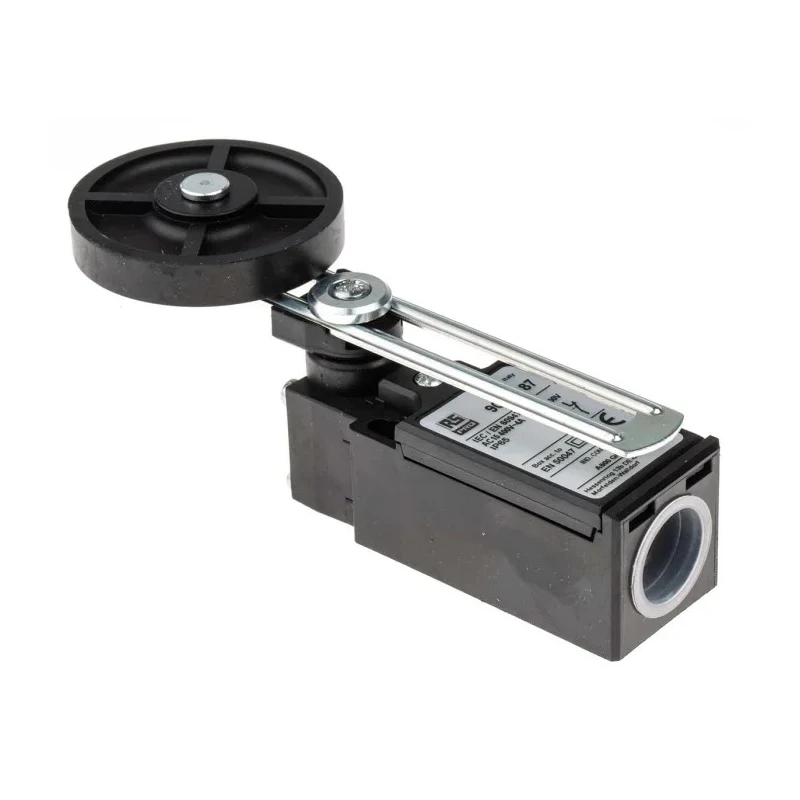

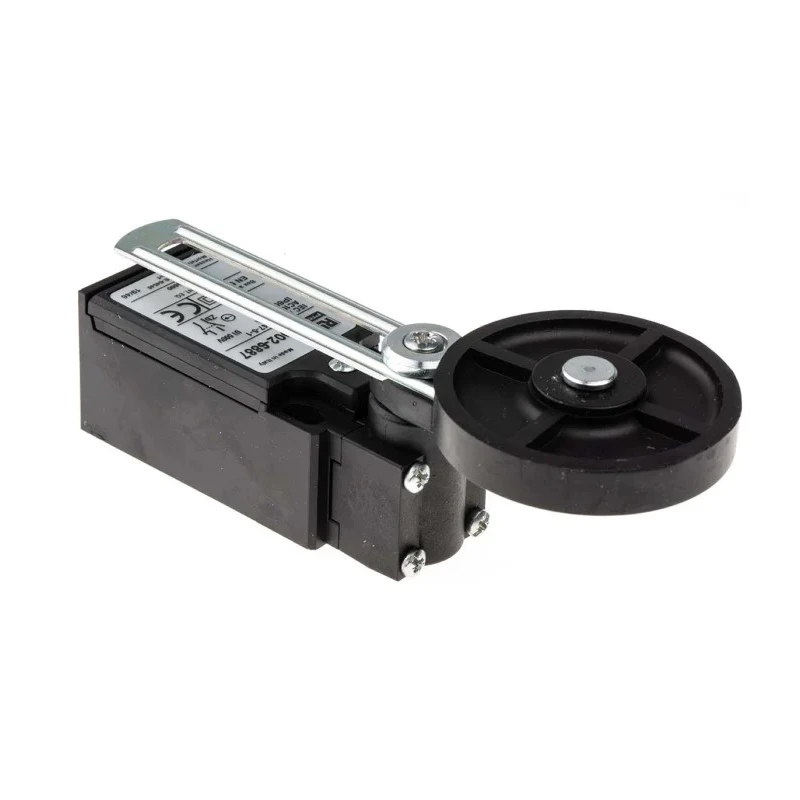

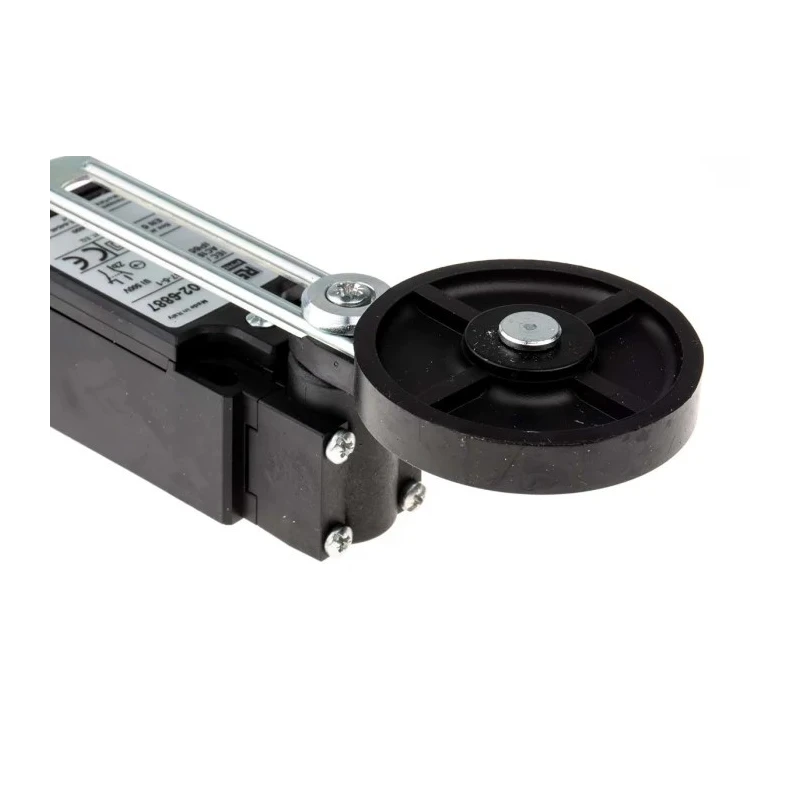

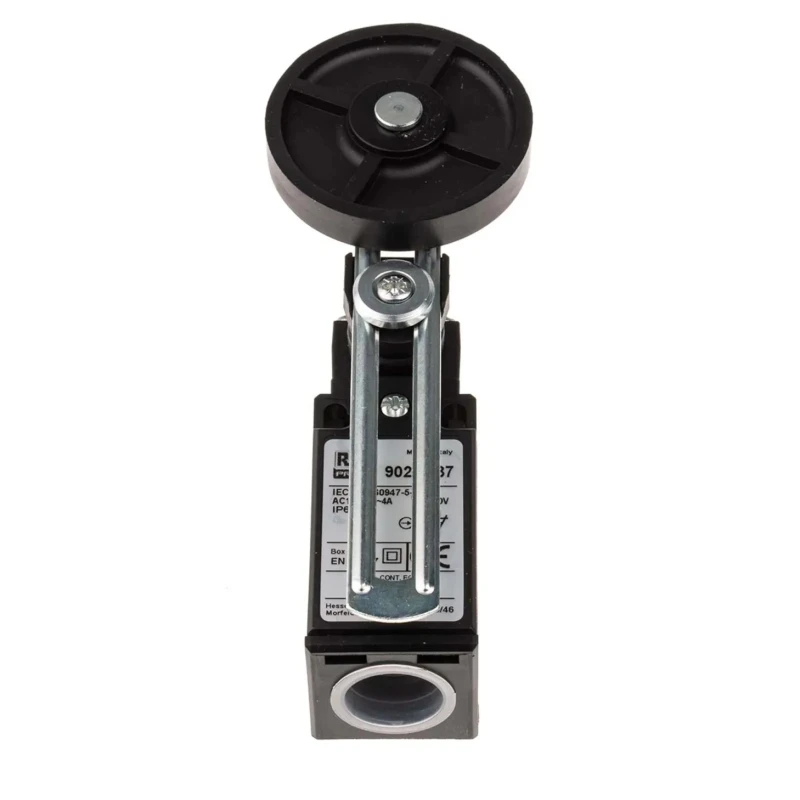

RS PRO Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Reinforced Thermoplastic Housing, 400V AC, 10A IP65

RS PRO IP65 Adjustable Roller Lever Limit Switch is a precision-engineered industrial component with a 1 NO/1 NC contact configuration, designed for reliable control and automation of mechanical equipment. This limit switch operates at a maximum AC voltage of 400V and a maximum DC voltage of 250V, suitable for a wide range of electrical applications.

The device features an adjustable roller lever actuator providing dependable snap action contact closure, ensuring precise and repeatable operation. Its fibreglass reinforced thermoplastic housing offers enhanced durability and double insulation, making it flame retardant (UL-VO) and suitable for use in demanding industrial environments.

Equipped with a cable terminal and an M20 x 1.5 conduit entry, the switch supports secure wiring installations. An IP65 rating protects against dust ingress and water jets, enhancing its versatility for indoor and outdoor industrial use.

With a mechanical life rated at 15 million operations and a minimal operating force of 0.1 N, this limit switch is built for long-term reliable service. It functions effectively within a wide temperature range from -25°C to 70°C, and is designed for vertical mounting orientation, making installation straightforward in various equipment setups.

Dimensions of the switch are compact, measuring 30.3 mm in length, 170.5 mm in width, and 30 mm in depth. The switch is commonly used across industrial sectors including manufacturing, automation, HVAC systems, and assembly lines where precise mechanical control is critical. Typical applications include controlling the movement of robotic arms, operating furnaces, or managing the opening and closing of garage doors.

This limit switch has an IP65 rating for dust and water resistance. It offers a contact arrangement of 1 normally open and 1 normally closed contact. Fibreglass reinforced thermoplastic housing provides durability and flame resistance.

Adjustable roller lever actuator ensures flexible installation and reliable operation. Rated for 10A switching current with a maximum AC voltage of 400V and DC voltage of 250V. Designed for vertical mounting and cable terminal connection using M20 x 1.5 conduit entry.

Operates in temperatures from -25°C to +70°C, suitable for industrial environments. Mechanical life rated at 15 million operations for extended reliability. Compact dimensions: 30.3 mm (L) x 170.5 mm (W) x 30 mm (D). Explore our collection of industrial Limit Switches and control components at EnvMart to find quality solutions tailored to your engineering requirements.
