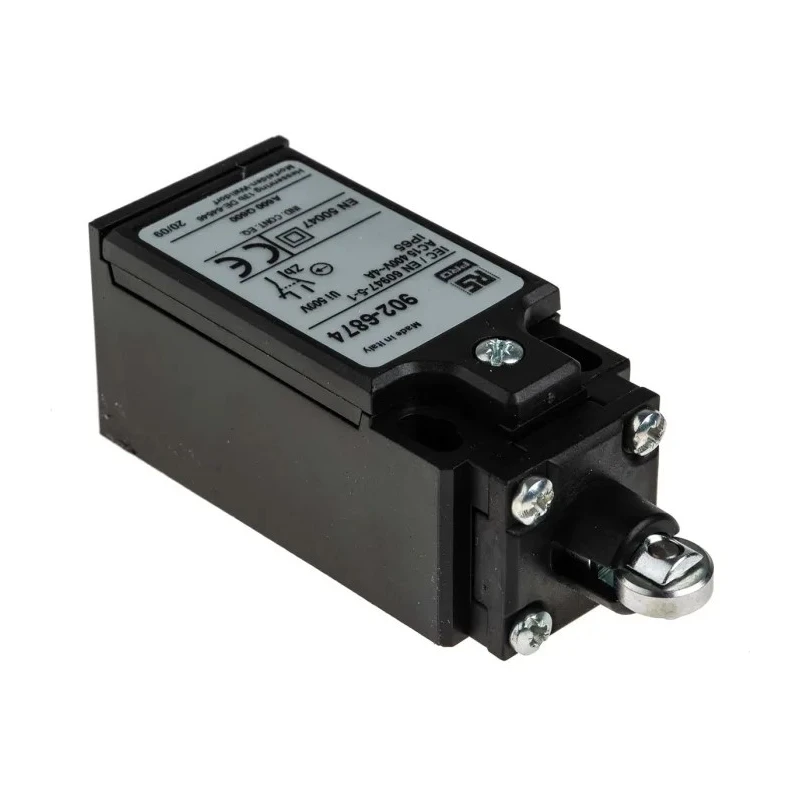

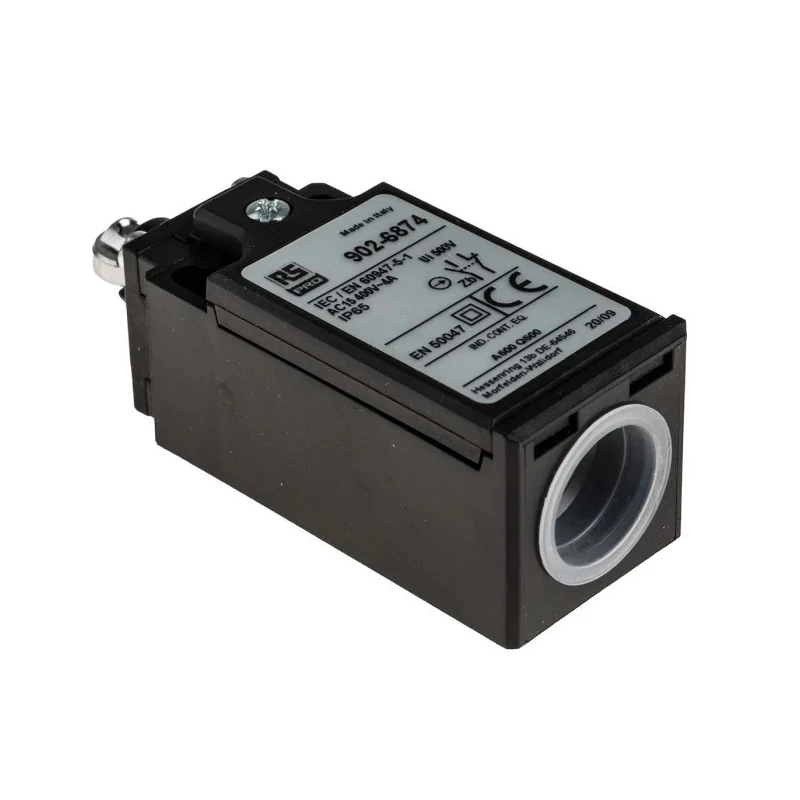

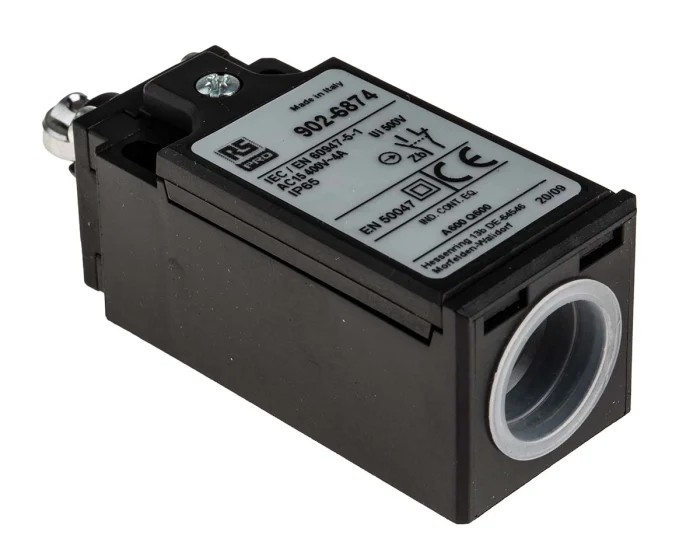

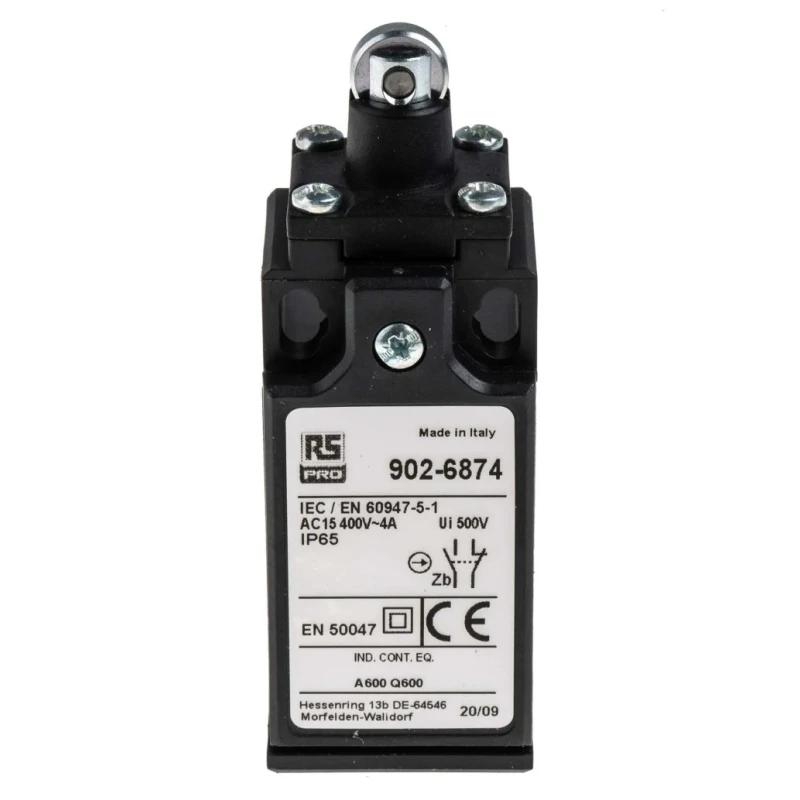

RS PRO Roller Plunger Limit Switch 1 NO/1 NC, IP65, Fibreglass Reinforced Thermoplastic Housing, 400V AC, 10A IP65

RS PRO IP65 roller plunger limit switch 1 NO/1 NC is engineered for industrial automation control with a fibreglass reinforced thermoplastic housing that ensures double insulation and flame retardancy. Rated IP65, this switch is protected against dust and oil, making it reliable for harsh industrial environments such as manufacturing lines, material handling systems, and automated machinery.

Equipped with a roller plunger actuator, the switch accommodates side thrust forces effectively, providing snap action contact reliability at currents up to 10 A and voltages of 400 V AC or 250 V DC, suitable for controlling motors, conveyors, and safety interlocks.

The switch supports vertical mounting and operates efficiently in temperature ranges from -25°C to +70°C. An operating force of 12 N enables sensitive detection, while the mechanical life of 15 million operations confirms its durability and long lifespan in repetitive tasks.

Installation is straightforward with a cable terminal type and a conduit entry of M20 x 1.5. Dimensions of 30.3 mm length, 84 mm width, and 30 mm depth provide a compact form factor for space-limited control panels and assemblies.

Certified to standards including UL, RoHS, IMQ, IEC, EN, and CSA, this limit switch meets rigorous quality and safety benchmarks. Manufactured in Italy, the RS PRO IP65 limit switch is ideal for a wide range of industrial sectors such as manufacturing automation, HVAC control, and material transport systems.

The switch has a durable fibreglass reinforced thermoplastic housing offering double insulation and flame-retardant properties. Rated at IP65, it provides robust protection against dust ingress and oil resistance for harsh environments.

Capable of switching up to 400 V AC and 10 A current with 250 V DC switching voltage capacity. The roller plunger actuator is suitable for applications requiring side thrust tolerance with snap action contacts. Designed for vertical mounting with operating temperature range from -25°C to +70°C, ensuring operational stability.

Features a mechanical life expectancy of at least 15 million operations for long-term reliability. Convenient cable terminal connection and M20 x 1.5 conduit entry provide easy wiring and installation. Operating force is 12 N ensuring precise actuation with minimal effort.

Compact dimensions of approximately 30.3 mm length, 84 mm width, and 30 mm depth allow versatile integration.

For engineers and maintenance professionals seeking a robust, reliable limit switch for precision control in industrial electrical panels and equipment, RS PRO offers trusted performance and quality assurance.
