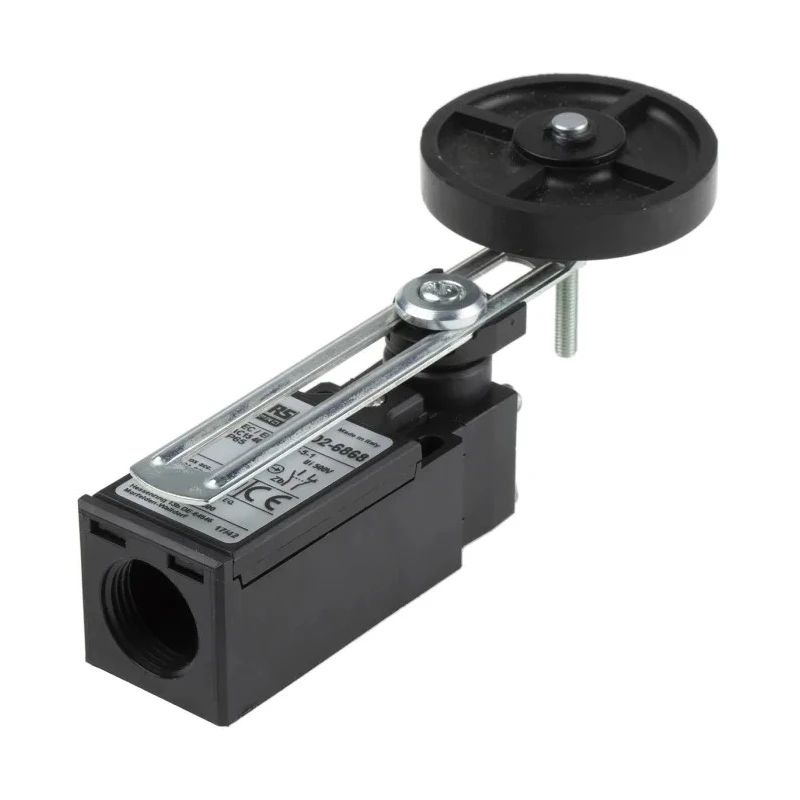

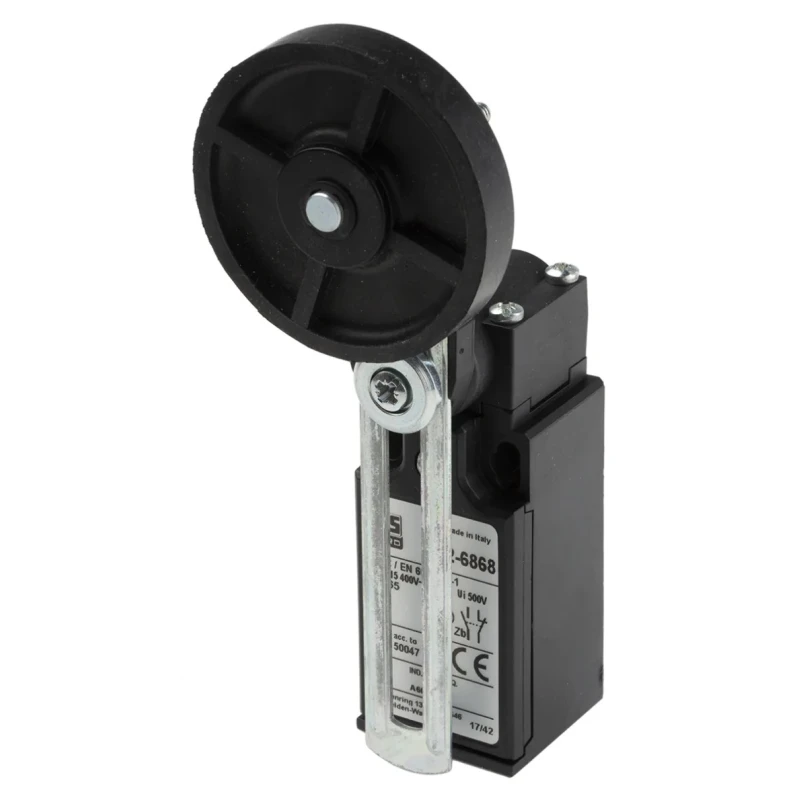

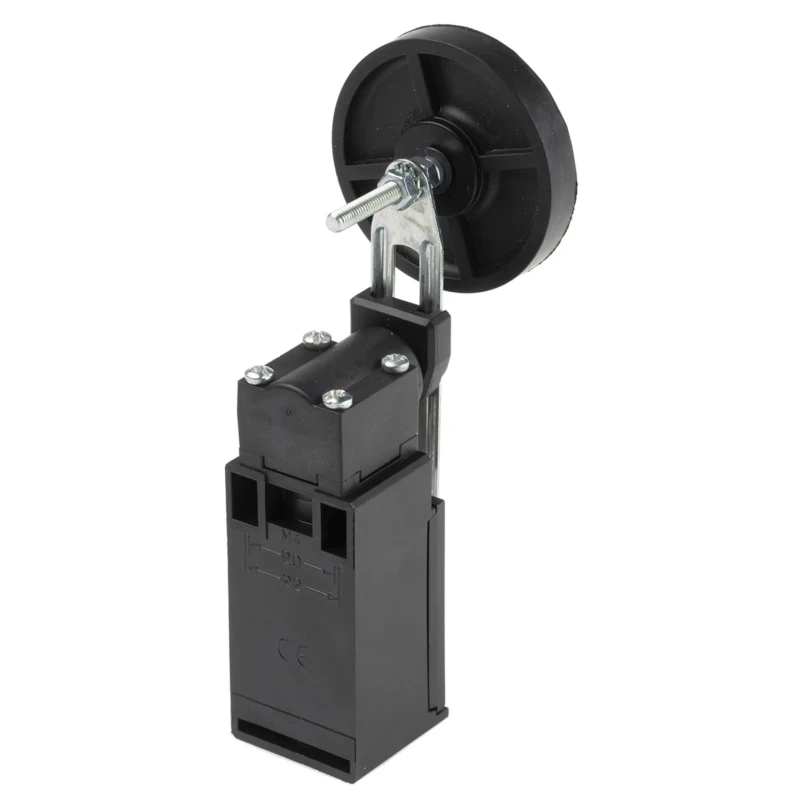

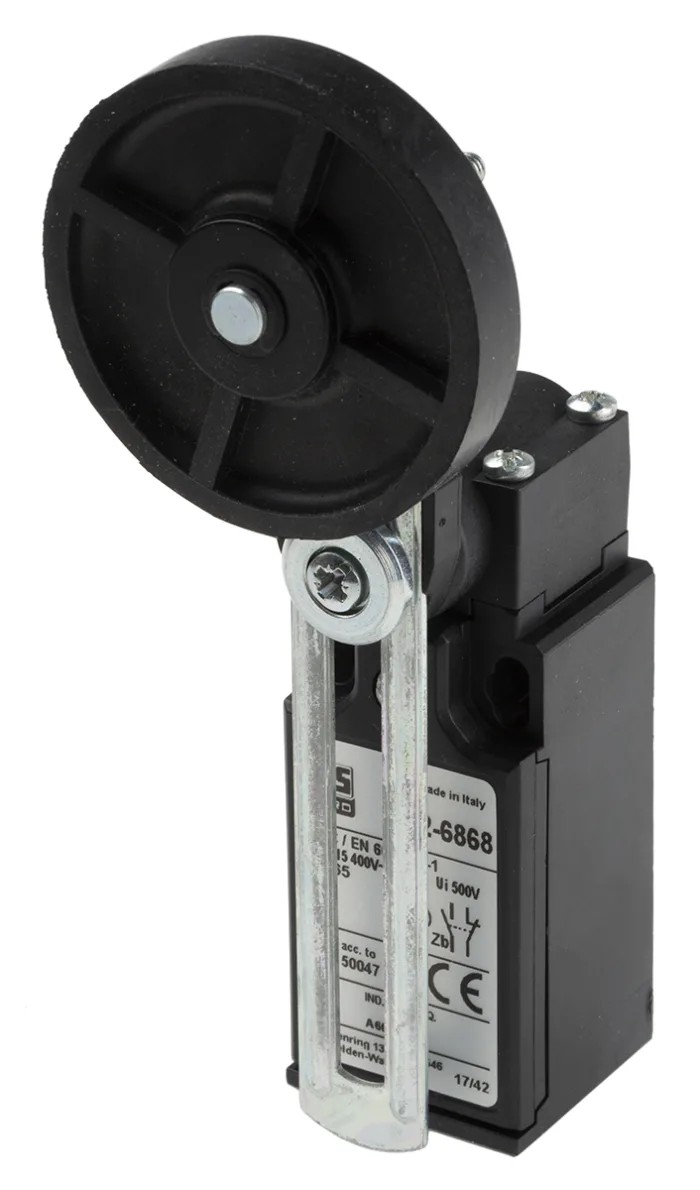

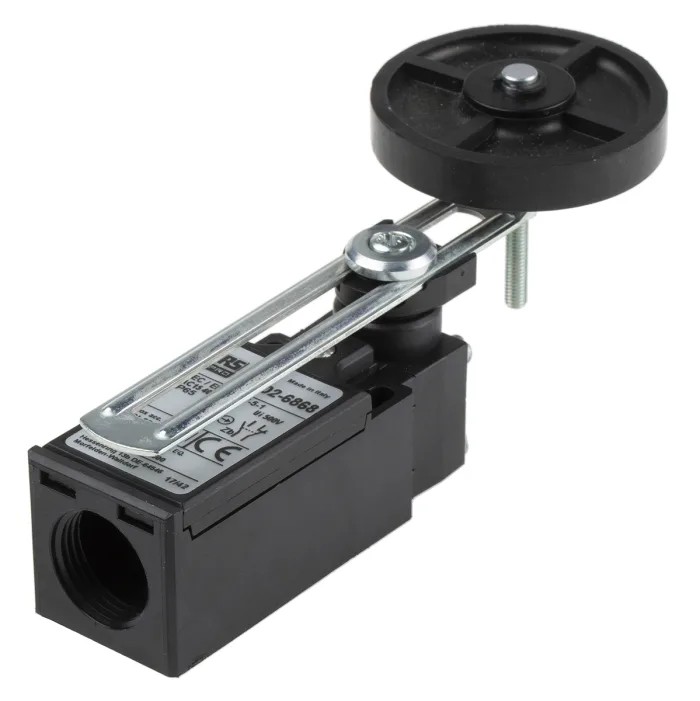

RS PRO Adjustable Roller Lever Limit Switch, 1 NO/1 NC, IP65, Fibreglass Reinforced Thermoplastic Housing, 400V AC, 10A IP65
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | RS PRO |
| Length | 30.3mm |
| Model | IP65 |
| Depth | 30mm |
| IP Rating | IP65 |
| Width | 170.5mm |
| Housing Material | Fibreglass Reinforced Thermoplastic |
| Series | RS PRO |
| Maximum Operating Temperature | 70°C |
| Mounting Orientation | Vertical |
| Contact Configuration | 1 NO/1 NC |
| Actuator Type | Adjustable Roller Lever |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -25°C |
| Switching Current | 10A |
| Terminal type | Cable |
| Standards/Approvals | UL, RoHS, IMQ, IEC, EN, CSA |
| Operating Force | 0.1N |
| Mechanical Life | 15000000Operations |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 400V ac |
| Conduit Entry | M20 x 1.5 |
Key Features
- Adjustable roller lever actuator enables flexible mechanical operation.
- Housing is IP65 rated for protection against dust and low-pressure water jets.
- Switch has snap-action contacts configured as 1 normally open and 1 normally closed.
- Suitable for electrical automation and control applications requiring reliable limit detection.
- Wide operating temperature range from -25°C to 70°C ensures durability in harsh environments.
- Mechanical life rated to 15 million operations for long service life.
- Vertical mounting configuration with cable terminal type for easy installation.
- Meets multiple global standards including UL, IEC, EN, CSA, RoHS, IMQ for assured quality and safety.
Product Description
RS PRO IP65 Adjustable Roller Lever Limit Switch 1 NO/1 NC features a robust fibreglass reinforced thermoplastic housing that provides excellent insulation and corrosion resistance, making it ideal for industrial automation environments. This limit switch is designed to operate at a maximum of 400V AC and 10A current capacity with snap action contacts configured as 1 normally open (NO) and 1 normally closed (NC), ensuring flexible control options.
The actuator is an adjustable roller lever with a rubber roller that can be shortened or extended to suit specific application needs, offering versatility in system integration. The switch meets an IP65 ingress protection rating, guaranteeing protection against dust ingress and low-pressure water jets, suitable for outdoor and industrial conditions.
Designed for vertical mounting and equipped with cable terminal connections, the switch is easy to install and maintain. It operates reliably within a temperature range of -25°C to +70°C and has a mechanical lifespan rated at 15 million operations, ensuring long-lasting performance in continuous industrial use.
This product complies with international standards and certifications including UL, RoHS, IMQ, IEC, EN, and CSA, confirming its safety and reliability in demanding industrial, manufacturing, HVAC, and automation control applications.
Adjustable roller lever actuator type for custom mechanical actuation. Fibreglass reinforced thermoplastic housing for enhanced durability and safety. Rated IP65 for dust and water jet protection. Snap-action contact type with 1 NO and 1 NC contacts.
Supports switching voltages up to 400V AC and 250V DC with a 10A current rating. Vertical mounting orientation facilitates installation in tight spaces. Cable terminal type for secure wiring connections. Mechanical life expectancy up to 15 million operations.
Operating temperature range from -25°C to 70°C for varied environments. Conduit entry M20 x 1.5 suitable for industrial conduit fittings. Manufactured in Italy ensuring European quality standards.
This RS PRO limit switch is ideal for use in electrical control panels, conveyor systems, machinery safety interlocks, and other automation uses where precise and reliable limit detection is critical. Explore EnvMart's extensive range of Limit Switches and electrical components for industrial automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a maximum voltage of 400V AC and a current capacity of 10A.
This limit switch has an IP65 ingress protection rating, which ensures it is protected against dust and low-pressure water jets.
It features an adjustable roller lever actuator, allowing for flexible mechanical operation.
The dimensions are 170.5mm in width, 30mm in depth, and 30.3mm in length.
The mechanical life is rated at 15 million operations, indicating its suitability for long-term use.
It operates reliably within a temperature range of -25°C to +70°C.
This limit switch is designed for vertical mounting, which facilitates installation in various applications.
It has snap-action contacts configured as 1 normally open (NO) and 1 normally closed (NC).
It meets multiple global standards including UL, RoHS, IMQ, IEC, EN, and CSA for safety and reliability.
This model is equipped with a cable terminal type for secure wiring connections.
The conduit entry is M20 x 1.5, suitable for industrial conduit fittings.
It is suitable for electrical control panels, conveyor systems, machinery safety interlocks, and other automation uses requiring reliable limit detection.
