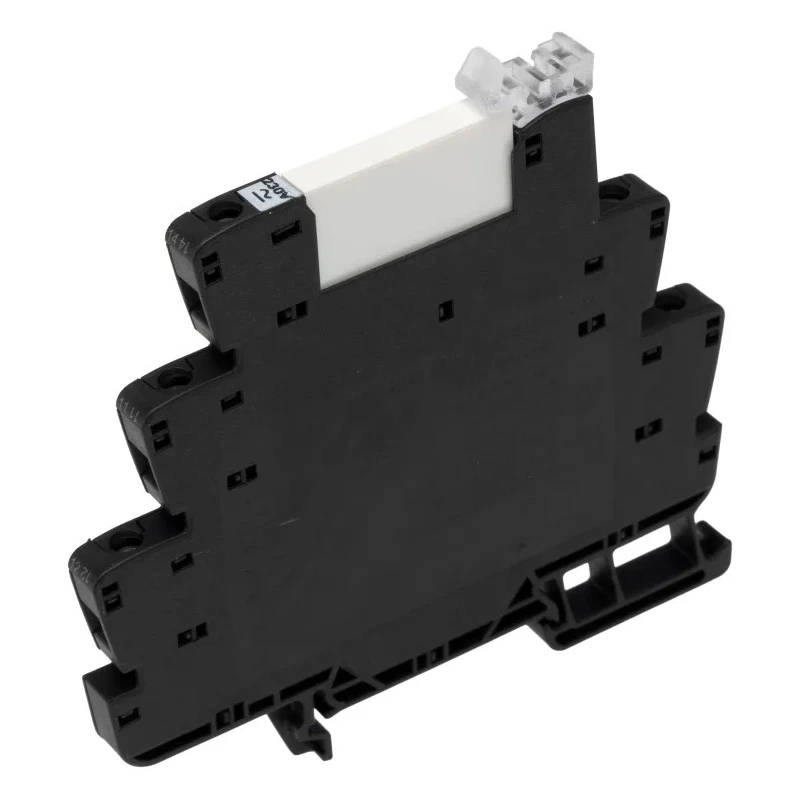

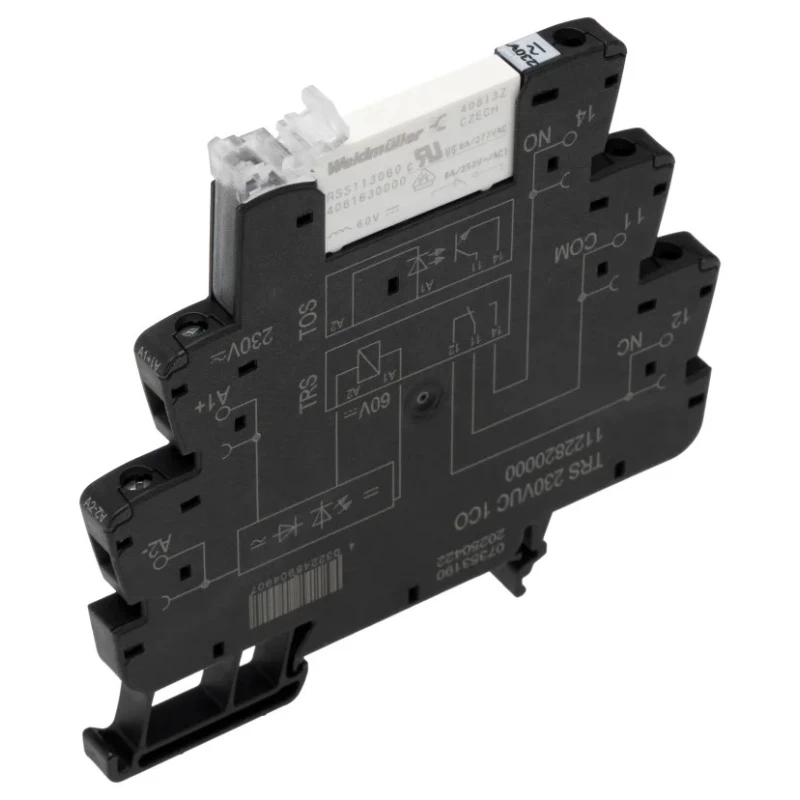

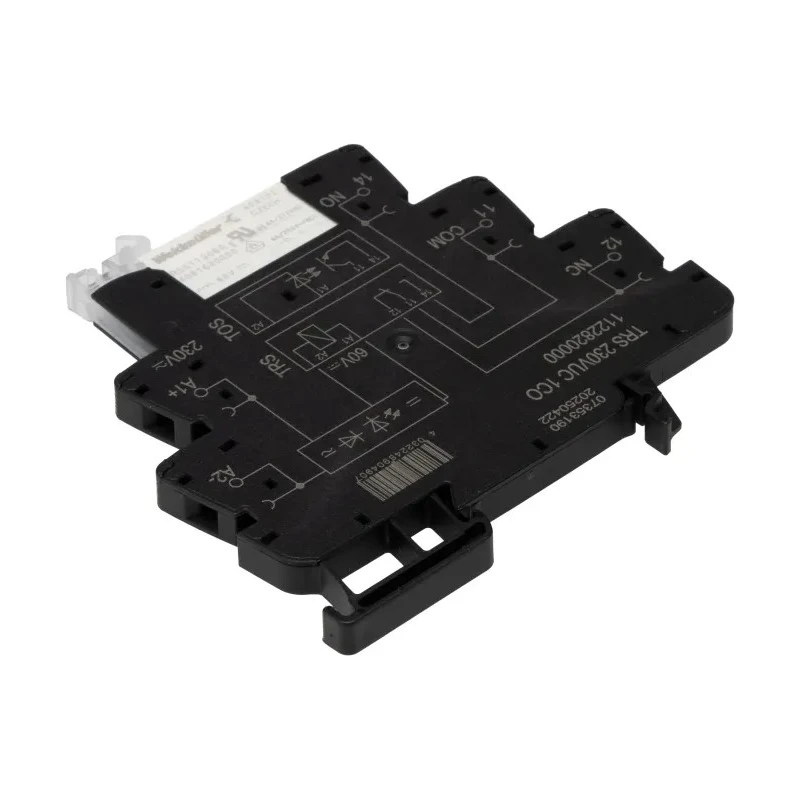

Weidmüller Electromechanical Interface Relay, DIN Rail Mount, 230V Coil, SPDT, 3.5mA Coil Current 1122820000
Specifications
| Country of Origin | China |
|---|---|
| Brand | Weidmüller |
| Height | 89.6mm |
| Length | 6.4mm |
| Width | 87.8mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | TRS |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 6A |
| Terminal type | Screw |
| Coil Voltage | 230V |
| Coil Current | 3.5mA |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
Key Features
- SPDT contact configuration allows flexible switching between circuits.
- Screw terminal type ensures secure and easy wiring connections.
- Compact DIN Rail mount design with dimensions 6.4mm width, 87.8mm depth, and 89.6mm height.
- Silver alloy contacts provide excellent conductivity and durability.
- Operating temperature range from -40°C to +60°C for diverse environmental conditions.
- Switching voltage ratings of 250V AC and 250V DC support various applications.
- Coil current of 3.5mA ensures efficient power consumption.
- Standards compliances include EN 55011, EN 61000-6-4, EN 61000-6-2, EN 61000-6-1, and EN 50178.
Product Description
Weidmüller 1122820000 Electromechanical Interface Relay is engineered for high reliability in signal switching tasks within electrical and automation systems. This device features a compact DIN Rail mount design with precise dimensions of 6.4mm width, 87.8mm depth, and 89.6mm height, making it suitable for space-constrained industrial panels.
Equipped with a Single Pole Double Throw (SPDT) contact configuration and screw terminal type, the relay provides flexible circuit switching and secure wiring connections. The coil operates at 230V with a low coil current of 3.5mA, ensuring energy-efficient performance.
The relay's silver alloy contacts guarantee excellent conductivity and long-lasting durability under frequent switching. It supports switching voltages up to 250V for both AC and DC applications and can handle switching currents up to 6A, suitable for general purpose control tasks.
Designed for robustness, it operates efficiently across a wide temperature range from -40°C to +60°C, making it ideal for diverse industrial environments. The relay complies with key standards such as EN 55011, EN 61000-6-4, EN 61000-6-2, EN 61000-6-1, and EN 50178, ensuring electromagnetic compatibility and safety.
Typical applications include signal switching in electrical circuits, machine and process control, and protective circuit implementations across industrial and automation settings.
SPDT configuration allows flexible switching between circuits. Screw terminal connections ensure secure wiring. Compact DIN Rail mount for space-saving installation. Silver alloy contacts provide durable conductivity. Wide operational temperature range from -40°C to +60°C.
Switching capacity of 6A at 250V AC/DC. Low coil consumption with 3.5mA current. Compliant with EN 55011, EN 61000-6-4, EN 61000-6-2, EN 61000-6-1, EN 50178 standards. Explore the range of Weidmüller interface relays and related components on EnvMart for versatile industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this electromechanical interface relay is 230V.
It has a switching current capacity of 6A.
This relay features a Single Pole Double Throw (SPDT) contact configuration.
The relay has dimensions of 6.4mm in width, 87.8mm in depth, and 89.6mm in height.
It operates efficiently within a temperature range of -40°C to +60°C.
This model uses screw terminal connections for secure wiring.
The contacts are made of silver alloy, which provides excellent conductivity.
It complies with several standards including EN 55011, EN 61000-6-4, EN 61000-6-2, EN 61000-6-1, and EN 50178.
The relay supports switching voltages of 250V for both AC and DC applications.
The coil current is 3.5mA, ensuring efficient power consumption.
It is designed for DIN Rail mounting, making it suitable for compact installations.
This relay is suitable for signal switching in electrical circuits, machine and process control, and protective circuit implementations.
