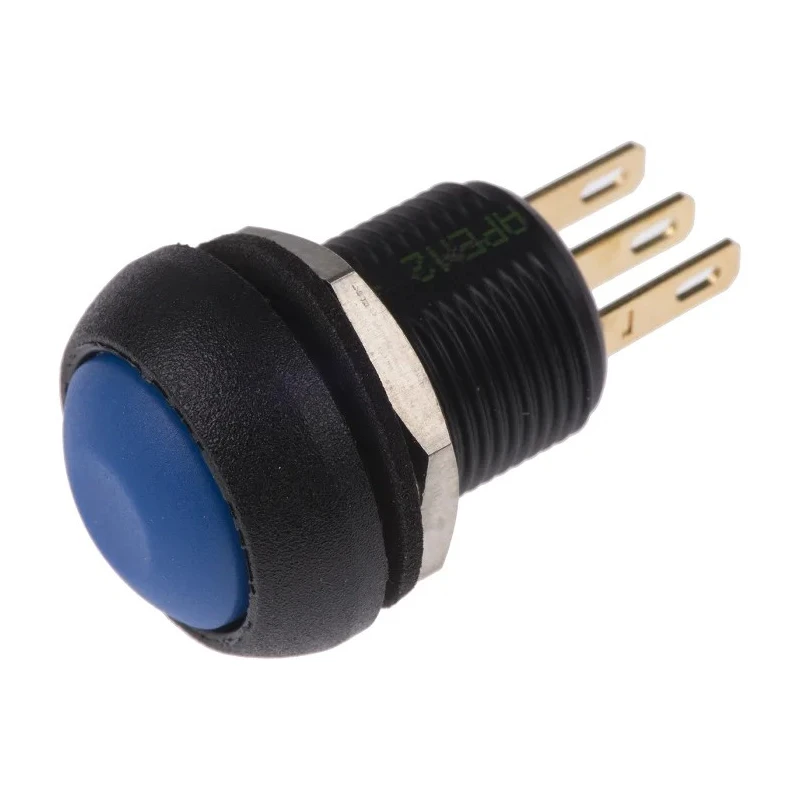

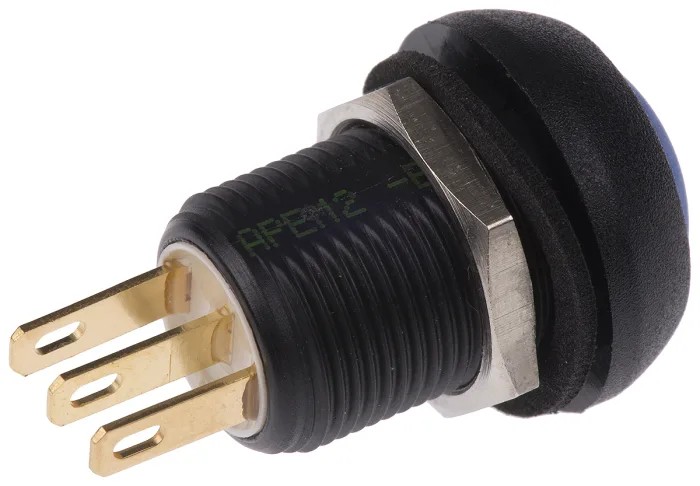

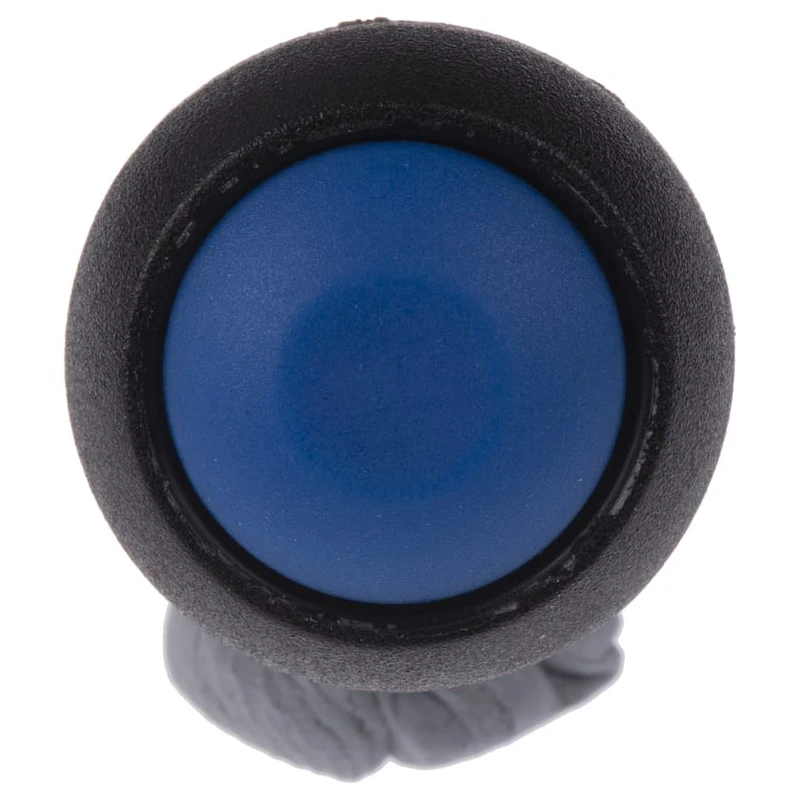

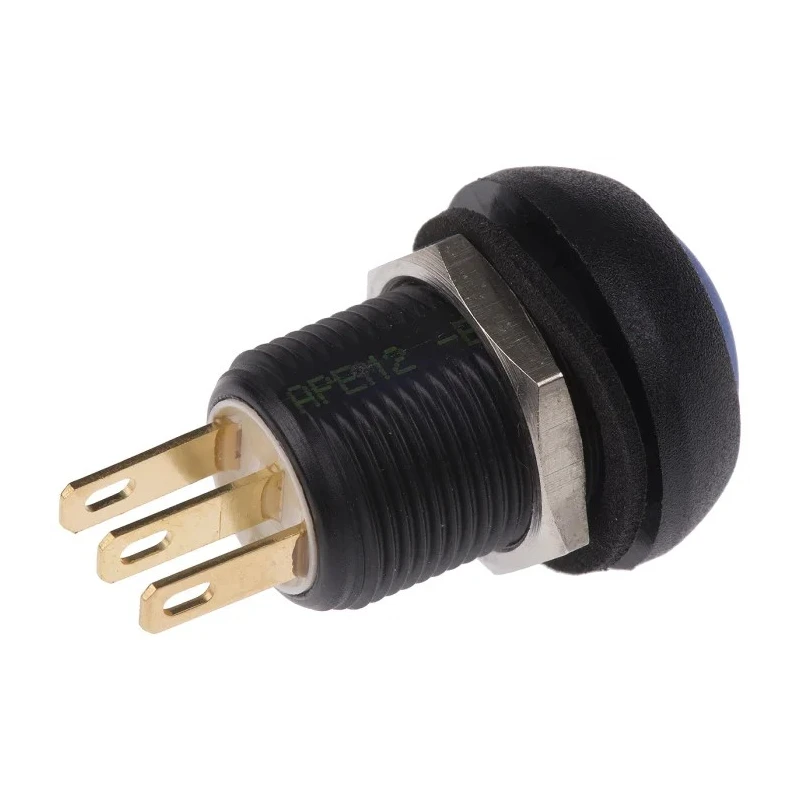

Apem Push Button Switch SPDT Momentary Panel Mount 13.6 mm Cutout Blue Actuator IP67 3A 28 V dc 250 V ac IMR7Z4B2UL

Name: Apem Push Button Switch SPDT Momentary Panel Mount 13.6 mm Cutout Blue Actuator IP67 3A 28 V dc 250 V ac IMR7Z4B2UL
Brand: APEM
SKU: 316671
Price: 17.98 USD
Availability: InStock



Category Push Button Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	Apem
Length	27mm
Model	IMR7Z4B2UL
IP Rating	IP67
Mount Type	Panel
Series	IM
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Switch Configuration	NC/NO
Minimum Operating Temperature	-40°C
Panel Cutout Size	13.6 mm
Shock Resistance	50g - 11 ms according to IEC 68-2-27
Terminal type	Quick Connect
Standards/Approvals	RoHS
Switch Operation	Momentary
Actuator Colour	Blue
Contact DC Voltage	28V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	250V ac

Key Features

The actuator is blue and styled as a round push button.
Designed for momentary switch operation with tactile snap action feedback.
Rated for 3A contact current at 28 V dc and 250 V ac.
Features gold-plated silver contacts for reliable conductivity.
Sealed against dust and water ingress with an IP67 rating.
Suitable for harsh and noisy industrial environments.
Can operate between -40°C and 85°C ambient temperatures.
Equipped with quick connect terminals and shock resistance of 50g for 11 ms per IEC 68-2-27.

Product Description

Apem IMR7Z4B2UL push button switch is a high-quality, momentary switch designed for panel mounting with a 13.6 mm cutout diameter. Its blue round actuator provides a tactile snap action and audible click, beneficial for applications in harsh and noisy industrial environments. The switch has a single pole double throw (SPDT) contact configuration, making it versatile for various electrical control circuits.

This switch is rated for a contact current of 3A at 28 V dc and 250 V ac, suitable for low to medium power switching applications. Its contacts are gold-plated silver to ensure low resistance and long life. The device features quick connect terminals for easy installation and connection stability. With an IP67 rating, it provides excellent protection against dust and immersion in water, making it ideal for demanding industrial, automation, and control panel uses.

The operating temperature range of -40°C to +85°C allows it to perform reliably in diverse environmental conditions. Shock resistance up to 50g for 11 ms per IEC 68-2-27 standard ensures durability against mechanical impacts. The switch is RoHS compliant, confirming its environmental friendliness and quality. Its compact length of 27 mm enables installation in tight panel spaces.

Apem's IM series push button switches like the IMR7Z4B2UL are widely used in industrial automation, manufacturing equipment control, HVAC systems, and electrical panels. Their tactile feedback and robust sealed design provide reliable operation even in difficult working conditions.

The actuator is blue and styled as a round push button. Designed for momentary switch operation with tactile snap action feedback. Rated for 3A contact current at 28 V dc and 250 V ac. Features gold-plated silver contacts for reliable conductivity.

Sealed against dust and water ingress with an IP67 rating. Suitable for harsh and noisy industrial environments. Can operate between -40°C and 85°C ambient temperatures. Equipped with quick connect terminals and shock resistance of 50g for 11 ms per IEC 68-2-27.

Mount type is panel cutout with precise 13.6 mm diameter. Operating life exceeds one million cycles for durability. Explore more Apem Push Button Switches and components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
