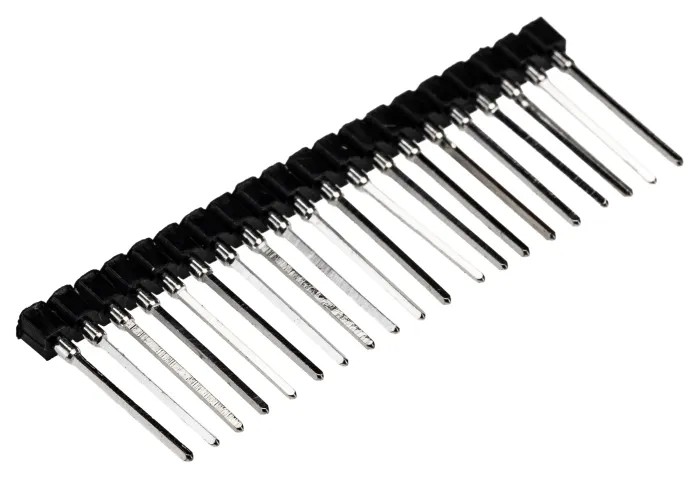

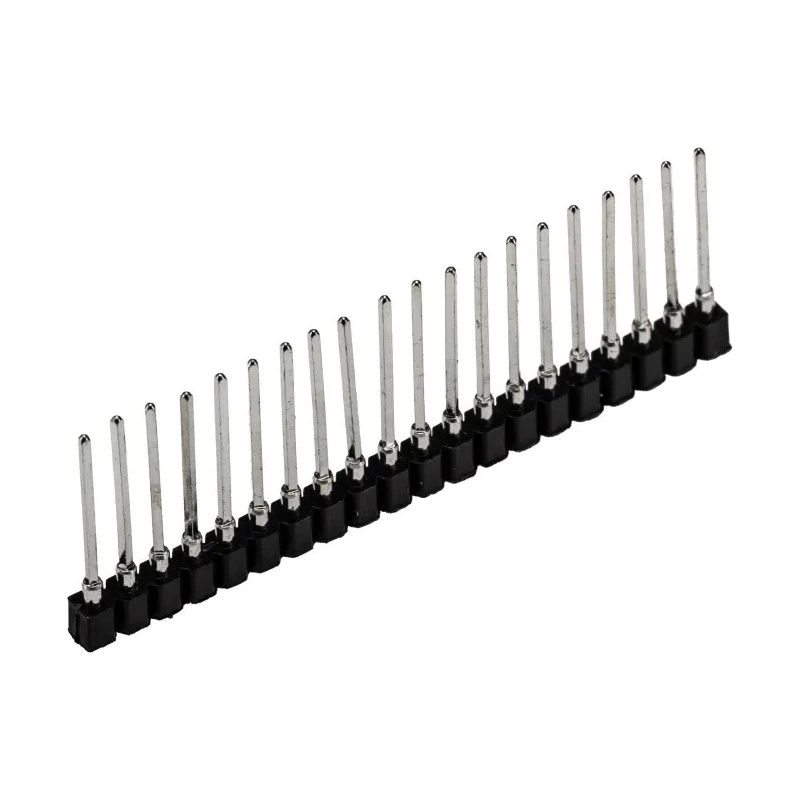

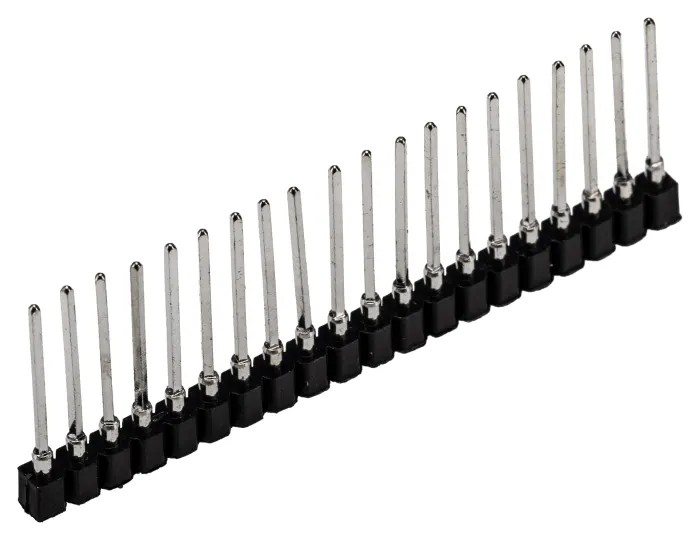

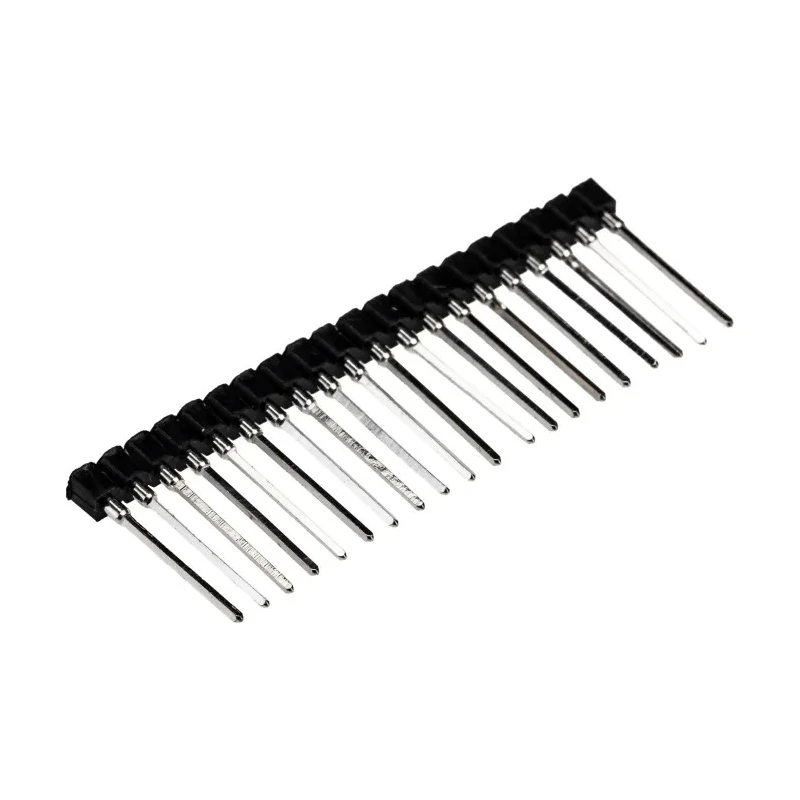

Winslow W366 Series Straight Through Hole Socket Strip 20-Contact 1 Row 2.54 mm Pitch Wire W36620T3RC

Winslow W36620T3RC Straight Through Hole Socket Strip is a high-quality 20-contact, 1-row socket designed for board-to-board connection applications. It features a standard 2.54 mm pitch and wire termination, ensuring versatile compatibility for electronic circuit designs. This through-hole mounted connector exhibits a straight orientation that facilitates ease of soldering and assembly on printed circuit boards.

The connector housing is made of fiberglass reinforced polyester, delivering robust mechanical strength and excellent temperature resistance. Gold-plated beryllium copper alloy contacts ensure superior electrical conductivity, corrosion resistance, and prolonged contact life. This socket strip is rated for currents up to 5 amps, making it suitable for many electronic and industrial applications where reliable power and signal transfer is necessary.

Designed to operate effectively in a wide temperature range from -65°C to 150°C, it caters to demanding environments in industrial, commercial, laboratory, and manufacturing settings. The connector meets RoHS compliance, reflecting its adherence to environmental and safety standards.

Winslow's W366 series includes options for high profile, turned pin, and wire wrap variants; the W36620T3RC model specifically offers the wire wrap termination with 13mm terminations allowing three wire wraps per pin for secure, reliable connection.

20 contacts arranged in a single row to save PCB space. 2.54 mm pitch suitable for standard SIL socket use. Beryllium copper alloy contacts with gold plating for enhanced performance. Fiberglass reinforced polyester housing for electrical insulation and resilience.

Through-hole mount type with a straight orientation for straightforward assembly. Current rating of 5 A supports moderate electrical loads. Wide operating temperature from -65°C to 150°C for versatile use cases. RoHS compliant to ensure environmental standards are met.

Male contact gender matches corresponding female connectors.

This socket strip is ideal for various demanding applications including industrial machinery, electronic instrumentation, telecommunications equipment, and other electronics manufacturing environments. By using Winslow W36620T3RC, engineers and technicians can expect dependable connectivity and durability in their designs.
