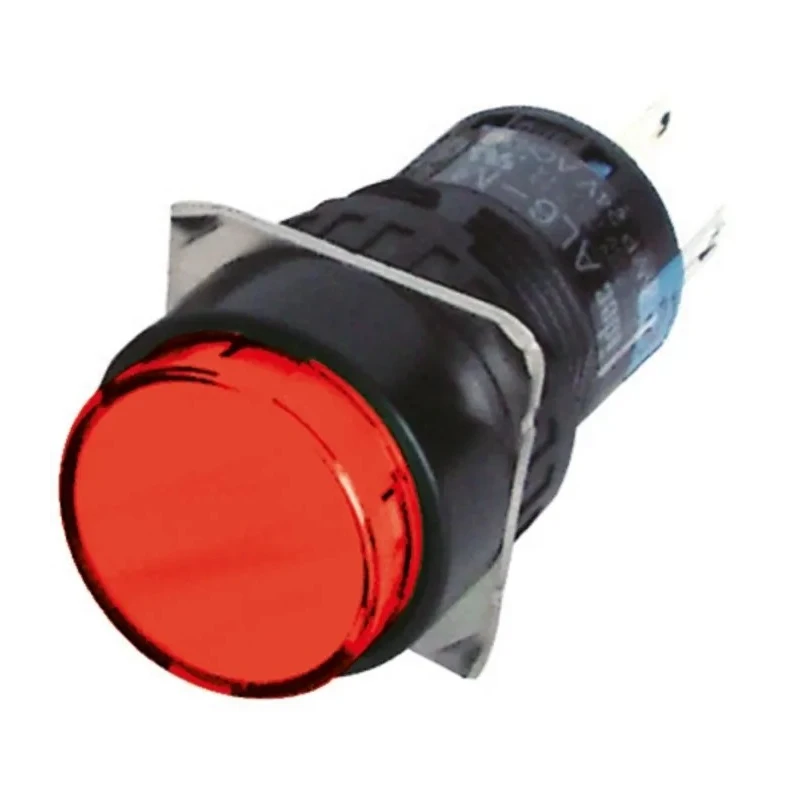

Idec AL Series Illuminated Push Button Switch Momentary Panel Mount SPDT Red LED 16.2 mm Cutout 250 V AC AL6M-M14P-R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Idec |
| Length | 22mm |
| Model | AL6M-M14P-R |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | AL |
| Maximum Operating Temperature | 120°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 16.2 mm |
| Terminal type | Quick Connect, Solder Tag |
| Standards/Approvals | CSA, UL |
| LED Colour | Red |
| Switch Operation | Momentary |
| Actuator Colour | Amber |
| Actuator Style | Button |
| Switch Contact Current | 1A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator color is amber with button style for easy operation.
- It features a single-pole double-throw (SPDT) contact configuration suitable for various control applications.
- The switch is illuminated with a red LED for status indication.
- This model offers IP65 ingress protection for use in harsh environments.
- Terminal types include quick connect and solder tag for versatile wiring options.
- Operating temperature range is from -25°C to 120°C.
- Designed to handle 1A contact current at 250 V AC.
- Standards and approvals include CSA and UL certification for industrial reliability.
Product Description
Idec AL6M-M14P-R illuminated push button switch is part of the AL Series designed for panel mounting in industrial automation and control systems. This momentary switch operates at 250 V AC with a 16.2 mm panel cutout and a durable IP65 rating, making it suitable for challenging industrial environments requiring reliable ingress protection.
The device features a single-pole double-throw (SPDT) contact configuration allowing flexible control logic implementation. Its amber actuator with button style ensures tactile and visual feedback, combined with a red LED for clear operational status indication.
With quick connect and solder tag terminals, the switch offers easy and secure wiring options ideal for streamlined assembly in control panels. The operating temperature range from -25°C to 120°C ensures consistent performance across diverse environmental conditions.
Certified by CSA and UL standards, this push button switch meets stringent safety and performance requirements. Its compact 22 mm length allows integration into space-restricted applications such as PLC input modules, factory automation, and industrial machinery control interfaces.
The actuator color is amber with button style for easy activation. Single-pole double-throw contact configuration supports versatile switching. Red LED illumination enhances operational visibility. IP65 rated for protection against dust and water ingress.
Quick connect and solder tag terminals provide flexible wiring options. Wide operating temperature range from -25°C to 120°C ensures reliability. Rated for 1A contact current at 250 V AC load. Compact 22 mm length suitable for tight panel spaces.
Certified to CSA and UL industrial standards for safety. Ideal for use in PLC inputs, logic switching, and industrial control panels.
This Idec AL Series illuminated push button switch offers a robust, space-saving solution for industrial and electrical automation applications requiring durable, visible, and reliable control interfaces. Browse our selection of Push Button Switches at EnvMart for more industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole double-throw (SPDT) contact configuration, allowing for flexible control logic implementation.
The maximum operating temperature for this switch is 120°C, making it suitable for a range of industrial applications.
It has an IP65 rating, providing protection against dust and water ingress, suitable for harsh environments.
This switch is equipped with quick connect and solder tag terminals, offering versatile wiring options for easy installation.
The required panel cutout size for this switch is 16.2 mm, ensuring a proper fit in panel mounting applications.
The actuator is amber in color and features a button style for easy operation and tactile feedback.
It is rated for a contact current of 1A at 250 V AC, suitable for various control applications.
The minimum operating temperature is -25°C, allowing it to function in a wide range of environmental conditions.
This switch is certified to CSA and UL standards, ensuring it meets stringent safety and performance requirements for industrial use.
It is suitable for use in PLC inputs, logic switching, and industrial control panels, providing reliable control interfaces.
The overall length of this model is 22 mm, making it compact enough for tight panel spaces.
This switch operates as a momentary switch, meaning it is active only while the button is pressed.
