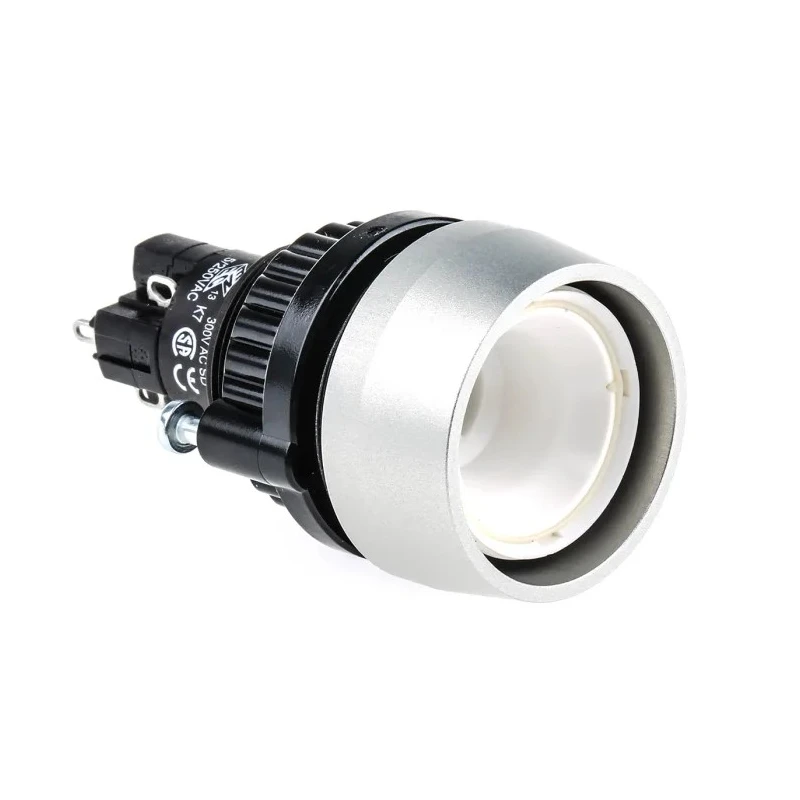

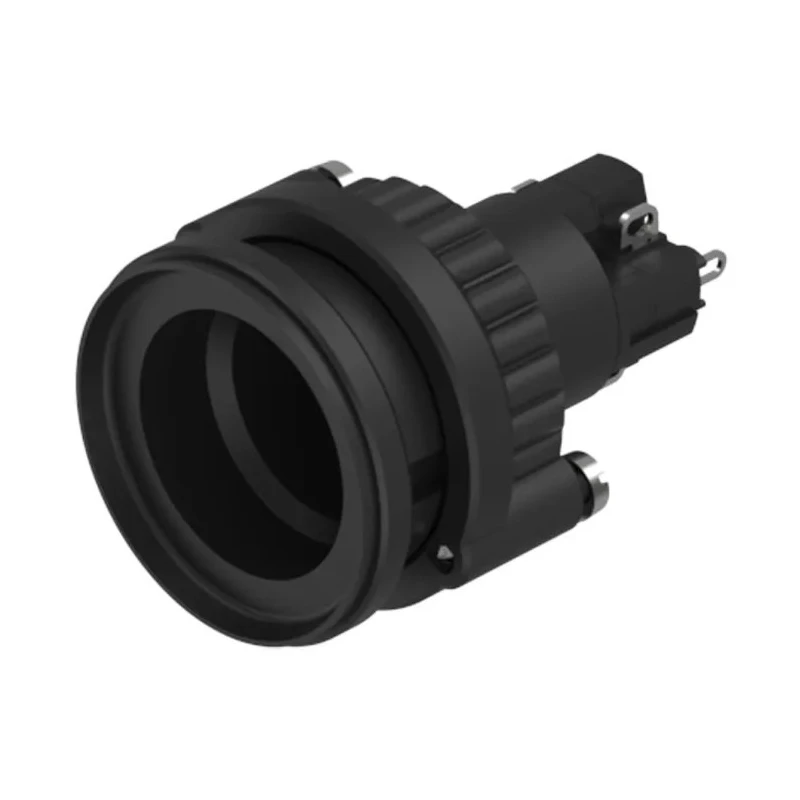

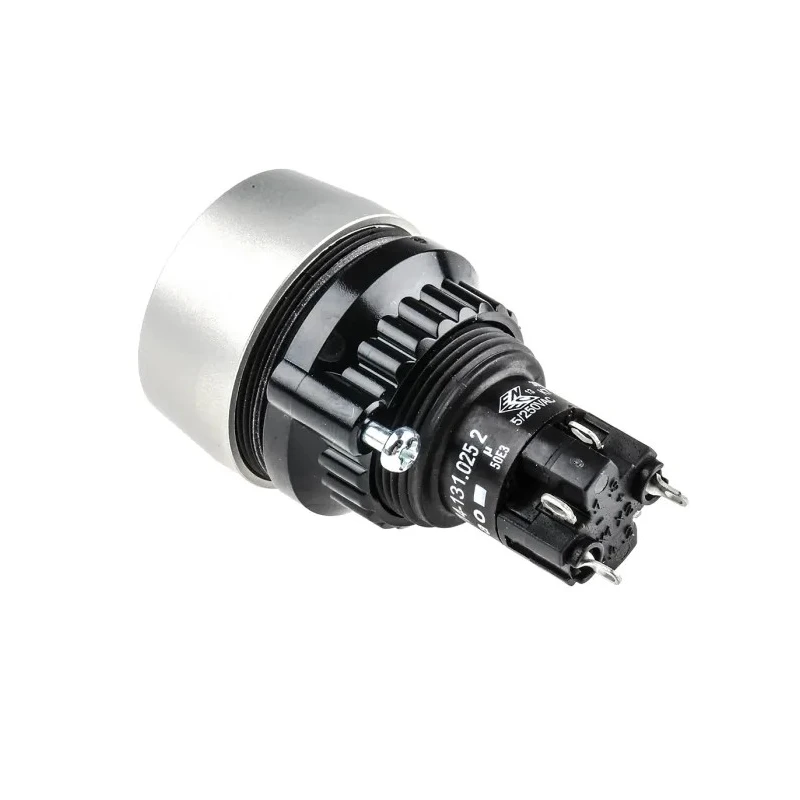

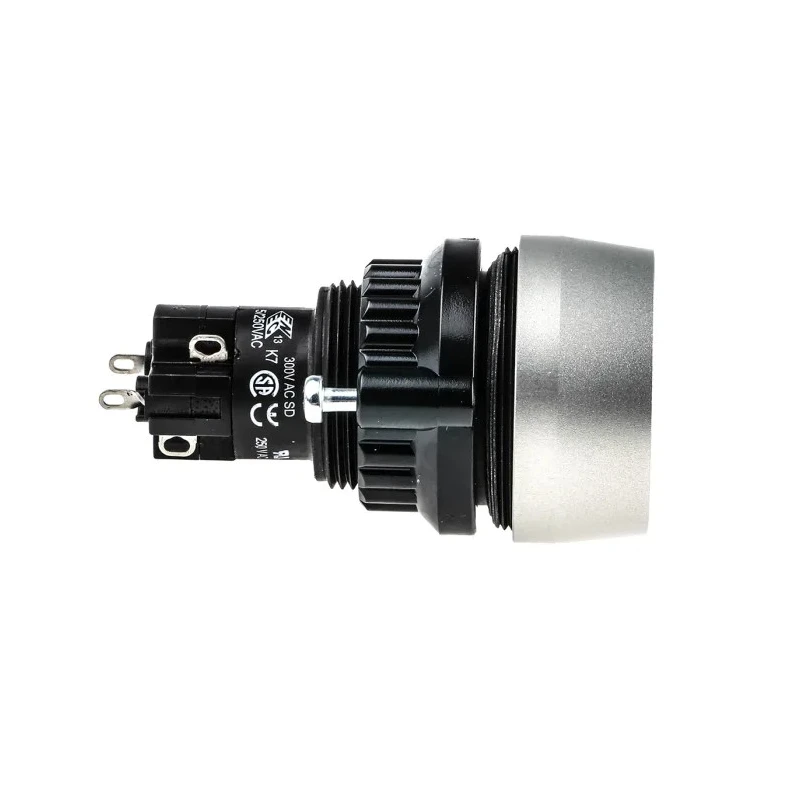

EAO 14 Series Illuminated Push Button Switch Panel Mount Momentary SPDT 22.5 mm Cutout IP67 24 V dc 14-131.0252 + 704.600.1



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Model	14-131.0252 + 704.600.1
IP Rating	IP67
Mount Type	Panel
Series	14
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Minimum Operating Temperature	-25°C
Panel Cutout Size	22.5 mm
Terminal type	Solder
Standards/Approvals	CB, CQC, CSA, DNV GL, ENEC, UL
Switch Operation	Momentary
Actuator Colour	Black
Contact DC Voltage	24V dc
Actuator Style	Button
Switch Contact Current	2A
Contact AC Voltage	250V ac

Key Features

The switch features a black actuator color and is illuminated for easy status indication.
It is designed for panel mounting with a compact 22.5 mm cutout size to save panel space.
Offers a snap-action mechanism ensuring rapid switching performance.
The IP67 rating guarantees it is dust-tight and can withstand submersion in water up to 1 meter for 30 minutes.
Its solder terminal type ensures a secure and vibration-proof connection.
Operates safely within a temperature range of -25°C to 55°C.
Has a switch contact current rating of 2A, suitable for low power systems.

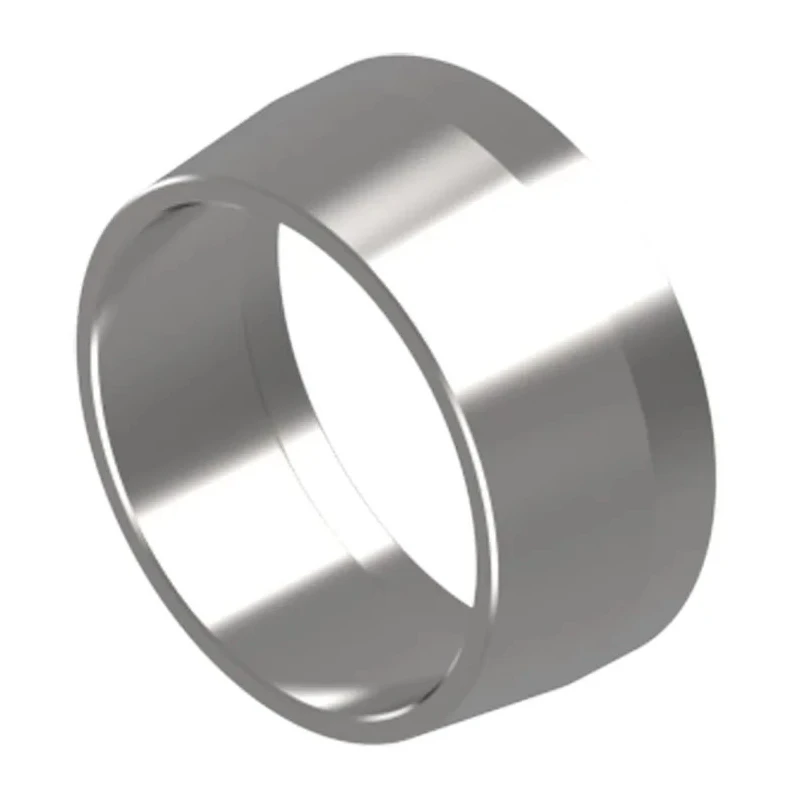

Constructed with a corrosion-resistant raised aluminium bezel for durability in harsh environments.

Product Description

EAO 14-131.0252 + 704.600.1 Illuminated Push Button Switch is a high-quality panel-mounted momentary switch featuring a single pole double throw (SPDT) contact configuration. Designed for reliable activation of electrical circuits, it supports contact voltages of 24 V dc and 250 V ac. The switch incorporates an illuminated actuator for clear operational status, making it ideal for industrial, commercial, and household applications.

The switch's snap-action mechanism facilitates quick and precise switching. Its black actuator and raised aluminium bezel ensure durability and corrosion resistance, fitting for challenging environments.

The compact 22.5 mm panel cutout size maximizes workspace efficiency. IP67 rating certifies its dust-tight construction and protection against submersion in water up to 1 meter for 30 minutes, suitable for demanding applications including industrial controls, power tools, vending machines, and portable equipment.

The solder terminal connection secures against vibration, enhancing operational reliability. Designed to operate within a temperature range from -25°C to 55°C, this switch maintains performance under varied climatic conditions.

The switch features a black colored actuator and is illuminated for visual confirmation during operation. Its snap-action mechanism guarantees repeatable and consistent switching actions. IP67 protection rating ensures durability in harsh, dusty, or wet environments.

Suitable for installation in panels with a precise 22.5 mm cutout diameter to conserve panel space. Contact configuration is SPDT, delivering versatile circuit control options. The solder terminal type provides a robust and vibration-resistant electrical connection.

Operating temperature range from -25°C to 55°C allows for use across diverse applications. Switch contact current rated at 2A meets requirements for low-power electrical systems. Manufactured in Switzerland to high-quality standards, ideal for industrial and commercial use.

This EAO push button switch is perfect for various industrial and commercial electrical control tasks. It excels in applications such as household appliances, industrial controls, vending machines, portable equipment, and power tools.
