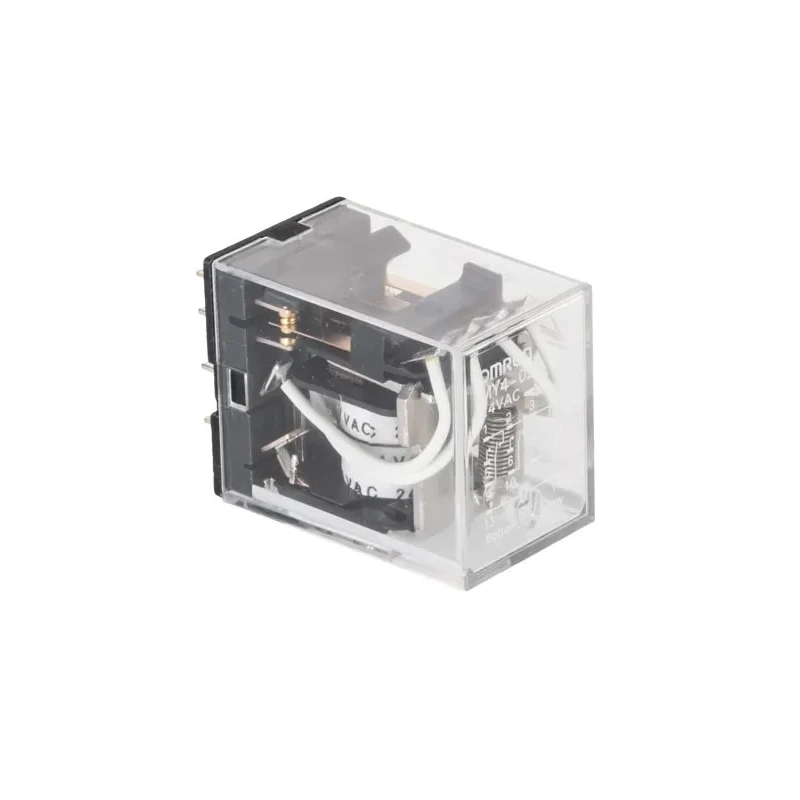

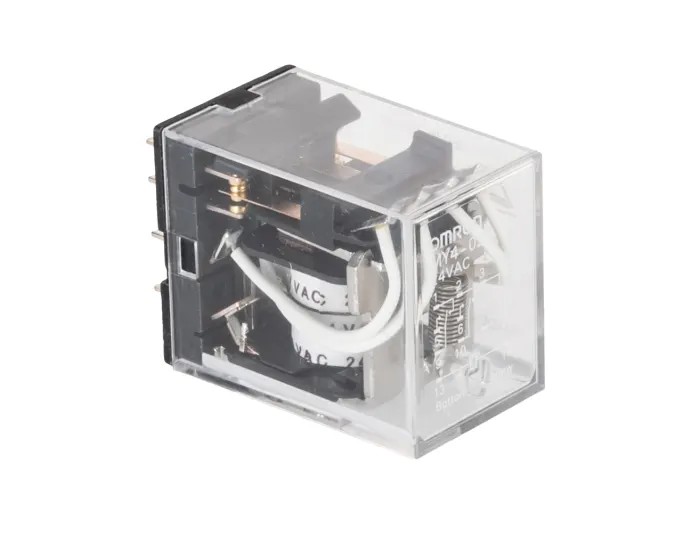

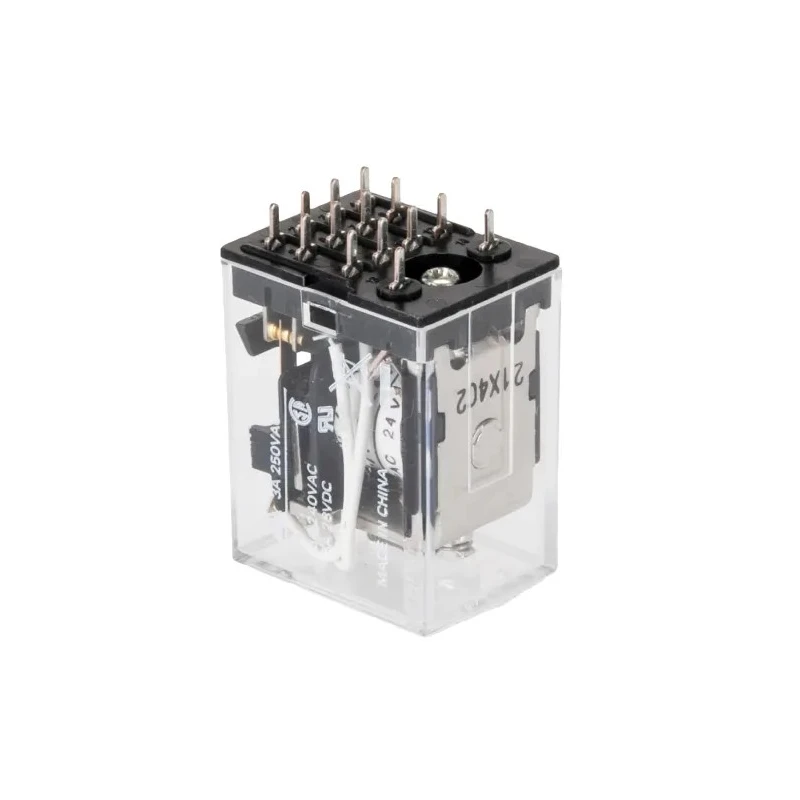

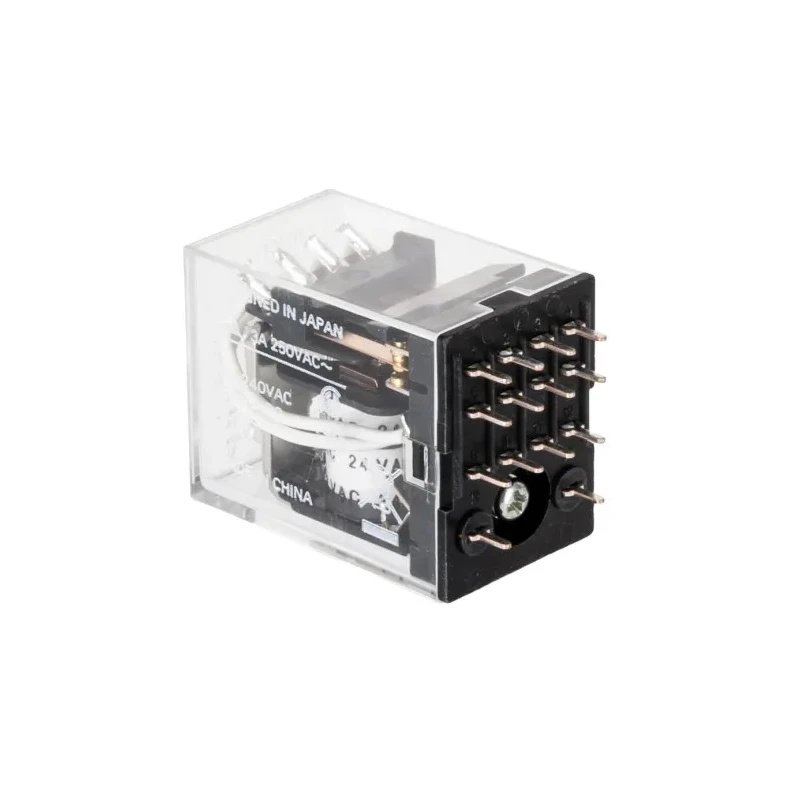

Omron Power Relay, 4PDT Contact Configuration, 24V AC Coil, 3A Switching Current, PCB Pin Terminals MY4-02 24VAC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 28mm |
| Length | 21.5mm |
| Model | MY4-02 24VAC |
| Width | 36mm |
| Contact Material | Gold Plated |
| Series | MY4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 3A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | UL, CSA |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 1.1W |
| Switching Power | 1.3W |
Key Features
- Equipped with a 4PDT contact configuration for versatile electrical connections.
- Operates with a 24V AC coil voltage for efficient power usage.
- Supports a switching current of up to 3A for reliable circuit control.
- Designed with gold plated contacts and PCB pin terminals for durable performance.
- Compact dimensions (21.5mm length, 36mm width, 28mm height) suitable for PCB mounting.
- Coil resistance of 180 ohms ensures energy-efficient operation.
- Maximum operating temperature up to 70°C enhances reliability in various environments.
- Conforms to UL and CSA standards for safety and quality assurance.
Product Description
Omron MY4-02 24VAC power relay is a high-performance industrial component designed for efficient power switching and control in automation and electrical systems. Featuring a 4PDT contact configuration and a coil voltage of 24V AC, this relay provides robust switching capacity of up to 3 amperes, suitable for both AC and DC loads up to 125V.
The relay is designed for PCB mounting with a compact form factor measuring 21.5mm in length, 36mm in width, and 28mm in height. Its gold plated contacts and PCB pin terminals provide durability and enhanced electrical connectivity. The coil resistance is rated at 180 ohms with a power consumption of approximately 1.1W, ensuring energy-efficient operation. The relay complies with UL and CSA safety standards, guaranteeing dependable and safe use in industrial environments.
With a wide operating temperature range from -55°C to +70°C, the MY4-02 24VAC relay withstands harsh conditions, making it suitable for HVAC control, motor and solenoid operation, power switching in industrial machinery, and automation control systems. The relay's coil is isolated from contacts by 2kV AC, improving safety by preventing electrical interference.
This relay's endurance of 500,000 electrical operations minimizes downtime and maintenance, increasing productivity in manufacturing and commercial applications. It offers a maximum switching power of 1.3W and a low contact resistance of 50 milliohms, contributing to efficient electrical performance and reduced power loss.
Equipped with a 4PDT contact configuration for versatile electrical connections. Operates with a 24V AC coil voltage for efficient power usage. Supports a switching current of up to 3A for reliable circuit control. Designed with gold plated contacts and PCB pin terminals for durable performance.
Compact dimensions suitable for PCB mounting in automated systems. Energy-efficient coil resistance of 180 ohms and coil power of 1.1W. Wide operating temperature range of -55°C to +70°C. Complies with UL and CSA standards ensuring safety compliance.
Suitable for switching both AC and DC loads up to 125V. Long electrical endurance for 500,000 switching operations.
This Omron power relay is an ideal choice for electrical and industrial automation applications including motor control, solenoid operation, HVAC systems, and various industrial machinery. Explore the Electronics & Electricals category at EnvMart for a wide range of Power Relays and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 4PDT (4 Pole Double Throw) contact configuration, allowing for versatile electrical connections.
It operates with a coil voltage of 24V AC, suitable for efficient power usage in various applications.
The relay supports a maximum switching current of up to 3A, making it reliable for circuit control.
The dimensions of this unit are 21.5mm in length, 36mm in width, and 28mm in height, making it compact for PCB mounting.
The coil resistance is rated at 180 ohms, contributing to its energy-efficient operation.
It has a wide operating temperature range from -55°C to +70°C, suitable for various environments.
This model is designed with PCB pin terminals, facilitating easy integration into circuit boards.
It conforms to UL and CSA standards, ensuring safety and quality assurance in its use.
The contact resistance is low at 50 milliohms, which helps in maintaining efficient electrical performance.
This relay has an endurance rating of 500,000 electrical operations, minimizing downtime and maintenance needs.
It is suitable for switching both AC and DC loads up to 125V, making it versatile for various applications.
The coil power consumption is approximately 1.1W, contributing to its overall energy efficiency.
