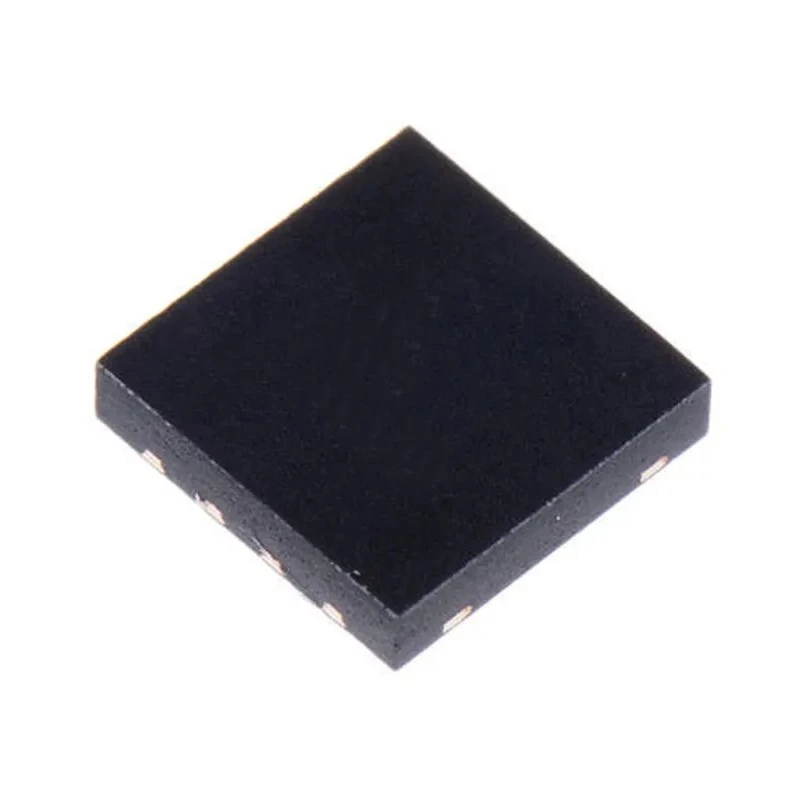

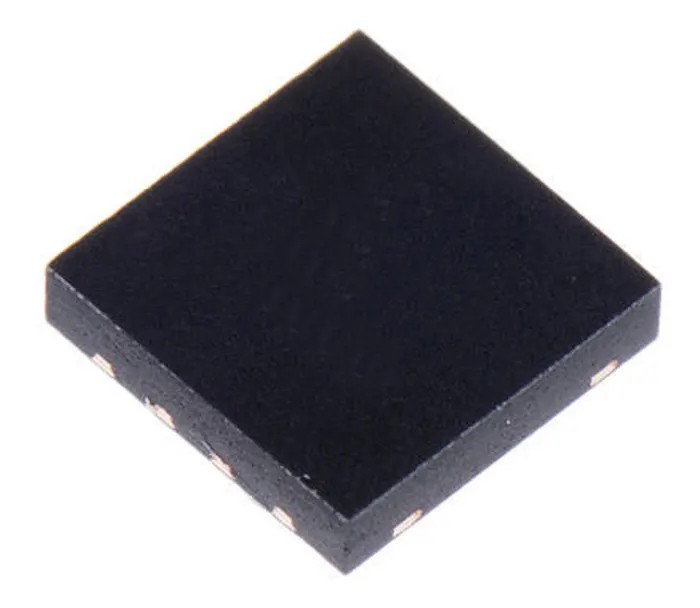

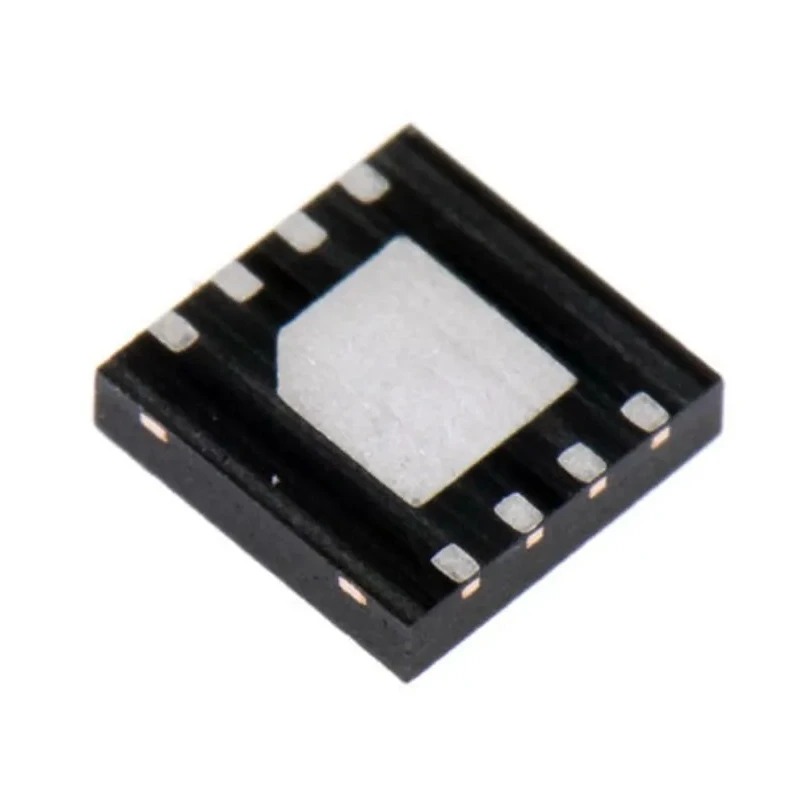

Microchip CAN Transceiver 8 Mbps 8-Pin DFN MCP2562FD-E/MF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 950μm |
| Length | 3mm |
| Model | MCP2562FD-E/MF |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP2562FD |
| Maximum Operating Temperature | 125°C |
| Package Type | DFN |
| Sub Type | CAN Controller |
| Minimum Operating Temperature | -40°C |
| Interface Type | ISO 11898-5, ISO 11898-2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 4.5V |
| Supply Current | 70mA |
| Maximum Data Rate | 8Mbps |
| Number of Transceivers | 1 |
Key Features
- Supports a maximum data rate of 8 Mbps for fast CAN bus communication.
- Features a single transceiver integrated for CAN controller interfacing.
- Designed with surface mount technology and housed in a DFN package.
- Operates with a supply voltage range of 4.5 V to 5.5 V.
- Includes ESD protection ensuring device robustness and reliability.
- Wide operating temperature range from -40°C to 125°C suits industrial applications.
- Compact dimensions of 3 mm length, 3 mm width, and 950 μm height for space-saving PCB layout.
- Conforms to ISO 11898-2 and ISO 11898-5 standards for CAN communication.
Product Description
Microchip MCP2562FD-E/MF is a state-of-the-art CAN transceiver designed for high-speed data communication up to 8 Mbps. It is packaged in an 8-pin DFN surface mount device that integrates a single transceiver compatible with CAN controller interfaces. The device operates between 4.5 V and 5.5 V with a low supply current of 70 mA during standby, making it suitable for efficient power management in embedded systems.
This transceiver supports robust automotive and industrial communication protocols by conforming to ISO 11898-2 and ISO 11898-5 standards. It incorporates built-in ESD protection to enhance system reliability in electrically noisy environments. The wide operating temperature range of -40°C to 125°C allows reliable function across harsh industrial, automotive, and laboratory conditions.
Its compact dimensions (3 mm by 3 mm by 950 μm) facilitate dense PCB layouts in modern electronic assemblies. The surface mount DFN package ensures optimal mechanical and thermal performance. Although the transceiver belongs to the MCP2562FD series, it is not certified for automotive standards, making it ideal for commercial, industrial, and laboratory CAN bus applications.
Supports 8 Mbps high-speed CAN bus communication. Single transceiver integrated in a surface mount DFN package. Operating supply voltage from 4.5 V to 5.5 V with low standby current. Robust ESD protection for enhanced device durability.
Wide operating temperature range from -40°C to 125°C for industrial applications. Compact 8-pin DFN package dimensions enable space-saving PCB design. Complies with ISO 11898-2 and ISO 11898-5 CAN communication standards.
Not certified for automotive standard applications. Ideal for industrial, commercial, laboratory, and embedded system use. Explore a wide range of semiconductor interface ICs and CAN transceivers at EnvMart for reliable, high-performance industrial component sourcing.
Explore more products in our CAN Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Microchip MCP2562FD-E/MF supports a maximum data rate of 8 Mbps for fast CAN bus communication.
It operates with a supply voltage range of 4.5 V to 5.5 V.
This transceiver has compact dimensions of 3 mm in length, 3 mm in width, and 950 μm in height.
It has a wide operating temperature range from -40°C to 125°C, suitable for industrial applications.
The MCP2562FD-E/MF integrates a single transceiver for CAN controller interfacing.
It is designed with surface mount technology and housed in a DFN package.
It conforms to ISO 11898-2 and ISO 11898-5 standards for CAN communication.
The supply current during standby is 70 mA, making it suitable for efficient power management.
No, the MCP2562FD-E/MF is not certified for automotive standard applications.
It includes built-in ESD protection to enhance system reliability in electrically noisy environments.
It is ideal for industrial, commercial, laboratory, and embedded system applications.
The package type is DFN, which ensures optimal mechanical and thermal performance.
