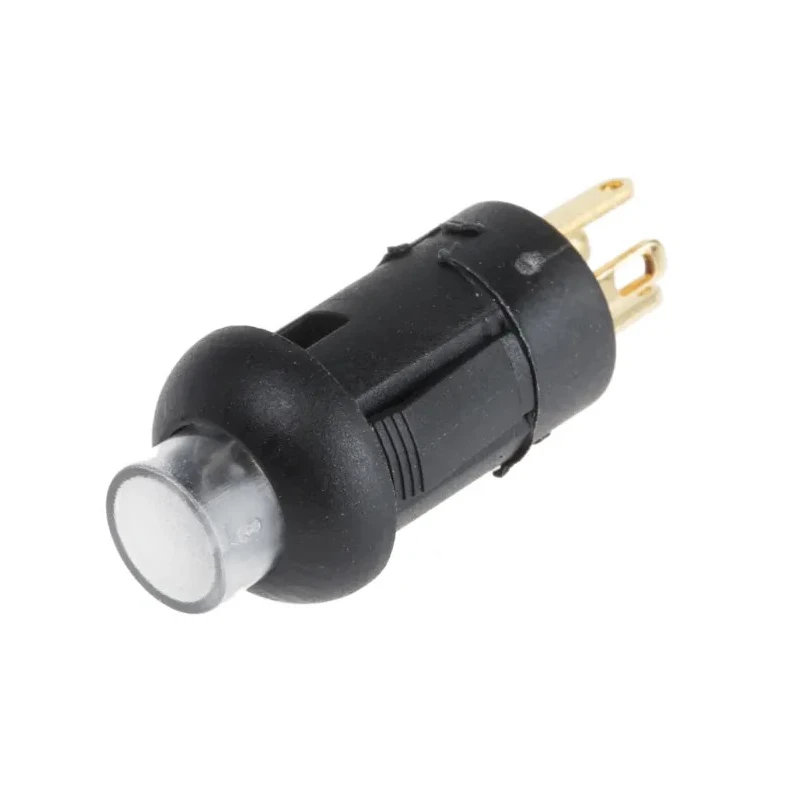

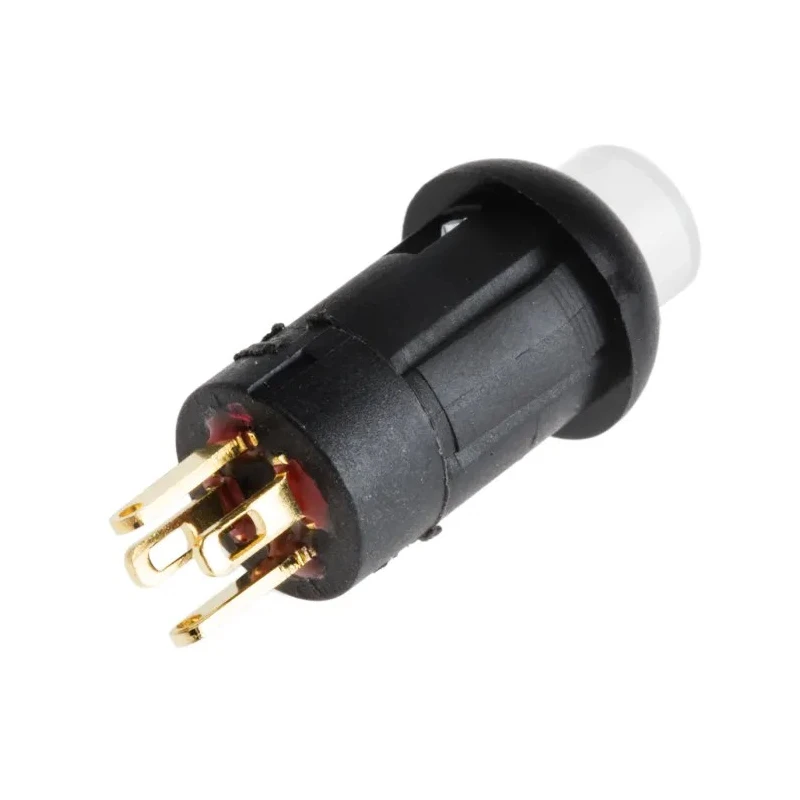

RS PRO Illuminated Miniature Push Button Switch Momentary PCB Mount SPST 8 mm Cutout Red LED 30 V dc 30 V ac 820-7521

RS PRO 820-7521 Illuminated Miniature Push Button Switch is a momentary SPST type designed for PCB mounting with an 8 mm cutout. Operating at 30 V dc and 30 V ac, this switch is ideal for industrial and electronic applications requiring reliable control elements.

The switch features a clear cap actuator with red LED illumination for visual feedback and easy identification. Its compact size and durable Nylon 6/6 housing coupled with copper alloy gold-plated terminals ensure robust performance and corrosion resistance in demanding environments.

Fixture cutout size is 8 mm facilitating straightforward PCB integration and panel assembly. This switch has an operational life expectancy of 50,000 cycles, making it suitable for frequent usage in test equipment, telecommunications, networking devices, and handheld appliances.

The operating force is 250±100 gf with total travel distance of 1.2±0.3 mm providing responsive and tactile feedback. It is rated for a contact current of 100 mA at both AC and DC voltages up to 30 V, allowing it to safely handle low power control signals.

This miniature push button offers momentary switch operation with normally open contact. PCB mounting design with gold-plated copper terminals for excellent conductivity. Red LED illumination for status indication enhances user interface clarity.

Compact 8 mm panel cutout fits standard electronic enclosures. High-quality Nylon 6/6 construction ensures durability and heat resistance. Long service life of 50,000 cycles supports extensive industrial use. Suitable for industrial, laboratory, telecommunications, and networking applications.

Operates reliably up to 85°C maximum temperature environment. Lightweight and compact form factor ideal for tight PCB layouts. Designed and tested to maintain consistent performance across multiple cycles. Explore more high-quality Push Button Switches and electrical components in the Electronics & Electricals category on EnvMart for your industrial and electronic project needs.
