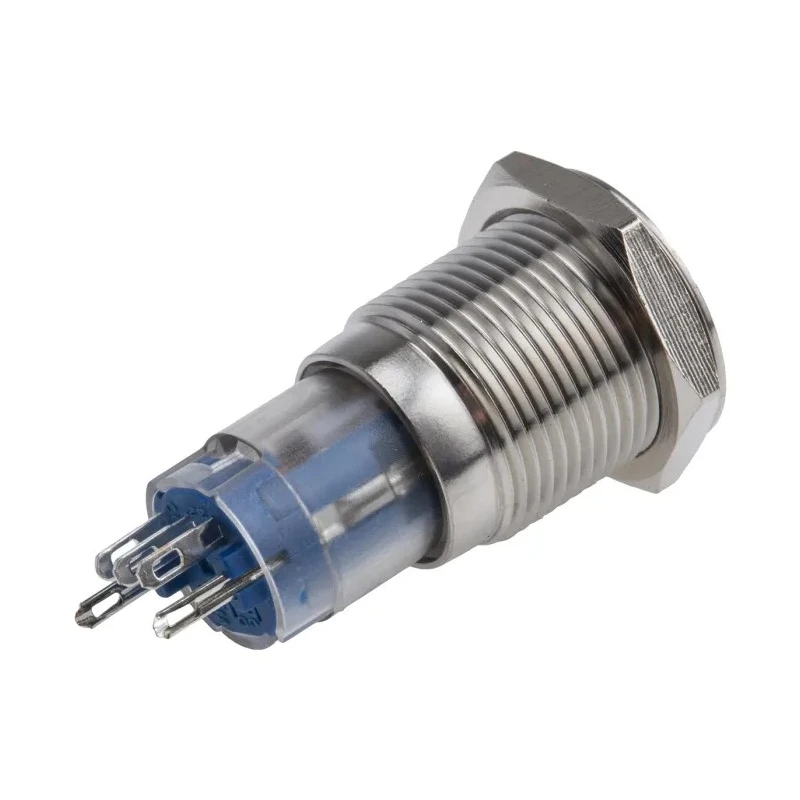

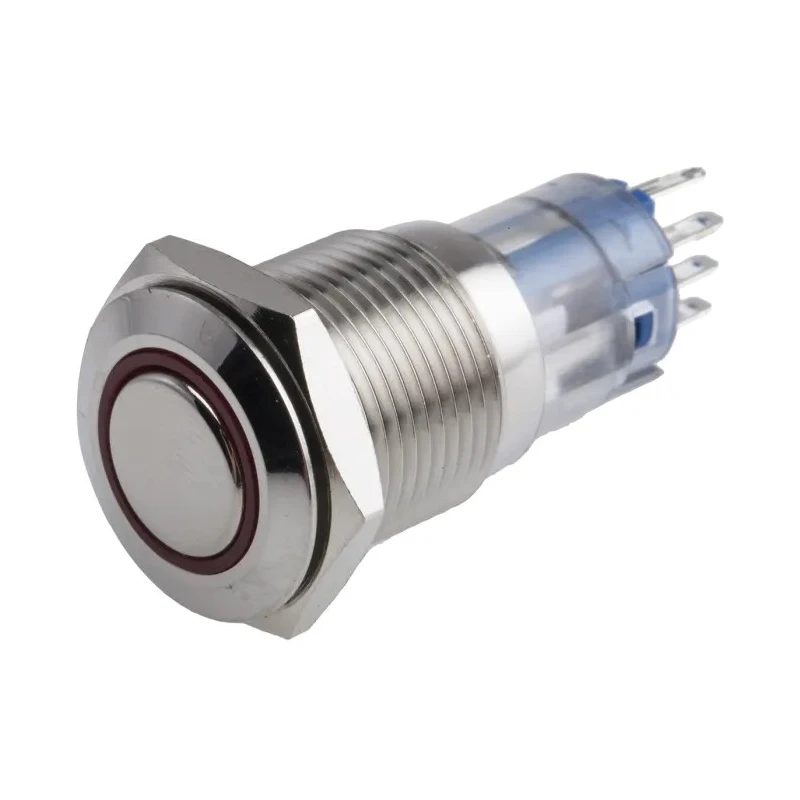

RS PRO Illuminated Push Button Switch, Latching, Panel Mount, 16 mm Cutout, SPDT, Red LED, IP65 IP67, 250 V AC 3A 811-8409

RS PRO 811-8409 Illuminated Push Button Switch is a latching type, designed with a 16 mm panel cutout for simple installation in industrial and commercial control panels. This switch features a flat silver actuator and red LED illumination to provide clear and visible status indication. It offers a Single Pole Double Throw (SPDT) contact configuration and is mounted on panels using solder terminals.

Built with stainless steel construction, the switch is anti-vandal and designed for durability in demanding environments such as public kiosks, outdoor panels, and open dashboards. Its IP65 and IP67 rating on the panel side provides elevated protection against dust ingress and water penetration, making it suitable for harsh and wet conditions.

This switch supports both AC and DC contact voltages at 250V with a contact current rating of 3A, making it versatile for various electrical control applications. The LED indicator supports 12V or 24V options to suit different control circuits. It is reliable across a wide temperature range, operating down to -20°C.

Ideal for industrial automation, electrical panels, water treatment systems, manufacturing controls, HVAC systems, and other applications requiring rugged, reliable selector switches with illumination and latching function.

Constructed from stainless steel for high durability. Anti-vandal design suitable for outdoor and public use. IP65 and IP67 panel protection ratings. Flat silver actuator with red LED illumination. SPDT switch configuration with solder terminals.

Supports 250 V AC/DC contact voltage and 3A current. Minimum operating temperature down to -20°C. Explore the range of Push Button Switches from RS PRO at EnvMart, designed to meet high-quality electrical control requirements across industrial sectors.
