ABB Monitoring Relay 3 Phase 1 Phase DPDT DIN Rail Mount 240V AC DC 1SVR760660R0200 CM-IWN.1P

Free Delivery in India | Lowest Global Shipping Charges

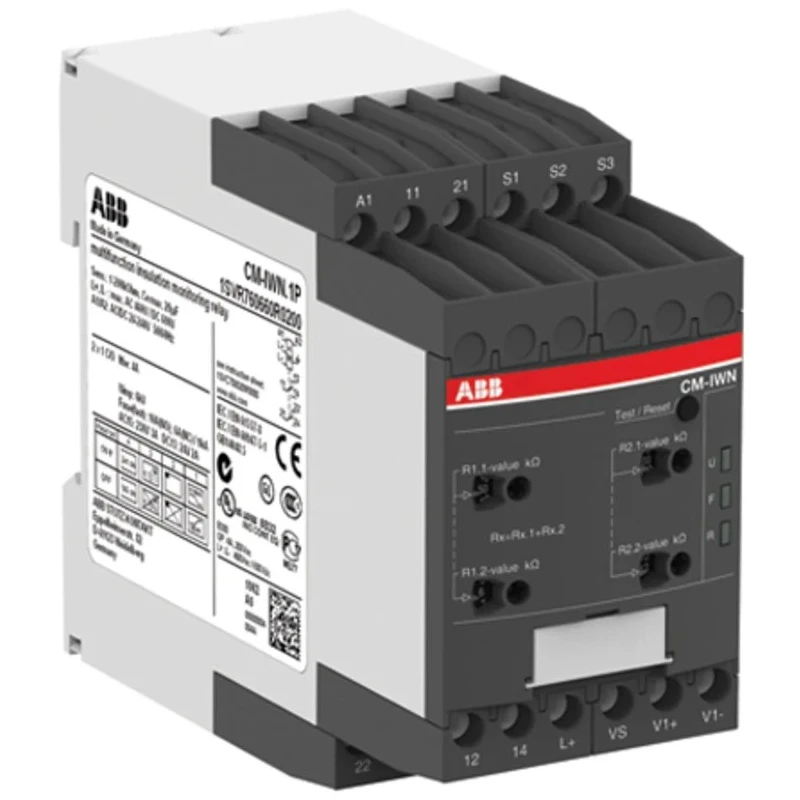

ABB Monitoring Relay 3 Phase 1 Phase DPDT DIN Rail Mount 240V AC DC 1SVR760660R0200 CM-IWN.1P



Category Monitoring Relays Brand ABB Condition New

Specifications

Country of Origin	India
Brand	ABB
Height	85.6mm
Length	104.8mm
Model	1SVR760660R0200 CM-IWN.1P
IP Rating	IP20, IP50
Width	45mm
Mount Type	DIN Rail
Series	CM-IWN
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	-25°C
Terminal type	Push-in
Maximum Insulation Resistance	185kΩ
Standards/Approvals	CE, DNV, CCC, EAC, RoHS, UKCA, UL
Contact Current	4A
Supply DC Voltage	240 V dc
Supply AC Voltage	240V ac

Key Features

Designed for insulation monitoring in electrical installations.
Supports both single-phase control and three-phase main circuits.
Equipped with DPDT contact configuration for reliable switching.
Mounts easily on DIN rail with push-in terminal connections.
Offers high maximum insulation resistance of 185kΩ.
Wide operating temperature range from -25°C to 60°C.
Features prognostic measuring principle with superimposed square wave signal.
Includes configurable interrupted wire detection and non-volatile fault memory.

Product Description

ABB 1SVR760660R0200 CM-IWN.1P Monitoring Relay is a precision device designed for insulation resistance monitoring in industrial and commercial electrical applications. It is suitable for both 3-phase main circuits and single-phase control circuits, making it versatile for various installations requiring reliable fault detection and system safety.

The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing dependable switching capabilities for complex monitoring setups. It mounts effortlessly on a standard DIN rail and utilizes push-in terminal technology for secure and quick wiring, supporting efficient installation and maintenance procedures.

This model operates with a rated control supply voltage range of 24 to 240V AC/DC, compatible with typical industrial power supplies. It achieves a high maximum insulation resistance rating of 185kΩ to ensure sensitive and accurate monitoring of insulation faults or leakages that could compromise equipment safety or operation.

Engineered for robust environmental tolerance, the relay functions reliably between -25°C and 60°C and is rated with IP20 and IP50 protection classes to resist typical industrial contaminants. Operational states are visually indicated through three distinct LEDs, enhancing fault diagnosis and preventive maintenance.

The advanced prognostic measuring principle using a superimposed square wave signal provides enhanced fault detection, with configurable interrupted wire detection and non-volatile fault storage to record system issues. These features ensure proactive management of insulation health.

Its compact size, measuring 104.8mm in length, 45mm in width, and 85.6mm in height, makes it suitable for space-conscious electrical panels and control cabinets. Insulation monitoring suitable for industrial, commercial, and automation applications.

Reliable 3-phase and 1-phase circuit monitoring with configurability. DIN rail mounting simplifies integration into electrical enclosures. Push-in terminal type facilitates secure and fast wiring. High thermal and electrical endurance with wide operating temperature range.

For reliable monitoring relay solutions, explore more products in the ABB Monitoring Relays category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum insulation resistance of this model is 185kΩ, ensuring effective monitoring of insulation faults.

It operates reliably within a temperature range of -25°C to 60°C, making it suitable for various environments.

This model features a DPDT (Double Pole Double Throw) contact configuration for versatile switching capabilities.

It mounts easily on a standard DIN rail, facilitating straightforward installation in electrical enclosures.

It supports a rated control supply voltage range of 24 to 240V AC/DC, compatible with typical industrial power supplies.

The relay measures 104.8mm in length, 45mm in width, and 85.6mm in height, making it compact for installation.

This model utilizes push-in terminal connections, allowing for secure and quick wiring during installation.

It is rated with IP20 and IP50 protection classes, providing resistance to typical industrial contaminants.

It employs a prognostic measuring principle with a superimposed square wave signal and includes configurable interrupted wire detection.

It complies with several standards including CE, DNV, CCC, EAC, RoHS, UKCA, and UL, ensuring regulatory compliance.

It is suitable for insulation monitoring in industrial, commercial, and automation applications, supporting both single-phase and three-phase circuits.

The relay features three distinct LEDs that provide visual indications of operational states, aiding in fault diagnosis.
